McIntosh WS500

Fully Enclosed In-Wall Passive Loudspeaker

Condition: New
Warranty: 3 Years
Colour: Black
HTFH Cat. No.: EB275
  • Up to 250 Watts
  • Flexible speaker that can be adapted to many custom install uses
  • Fully enclosed to deliver incredible performance
  • Controlled air chamber to minimize distortion and response irregularities
  • Paintable magnetically attached grille
£2,995.00 Each

Be the first to review this product

Contact Us

Hard To Find Hi-Fi
1 Spencer St
The Jewellery Quarter
Birmingham
B18 6DD

Monday to Friday:
10am - 5.30pm
Saturday:
10am - 5.30pm
Sunday:
Closed
Bank Holidays:
Closed

To Purchase Or Demo Please Call 0121 448 8484 - FREE shipping available (UK only)

McIntosh
McIntosh WS500
McIntosh WS500 McIntosh WS500 McIntosh WS500

Overview

The WS500 In-Wall Loudspeaker is a versatile speaker suited for custom install applications for both 2-channel home audio and in home theaters as front, center or surround sound speakers. It is an ideal speaker to use with our MI128 or MI254 distribution amplifiers, or with our WS300 in-wall speaker and CS200 in-ceiling speaker – both of which it is voice matched to for a seamless and cohesive aural experience. In home theaters, it works great with any of our A/V processors and multi-channel amplifiers.

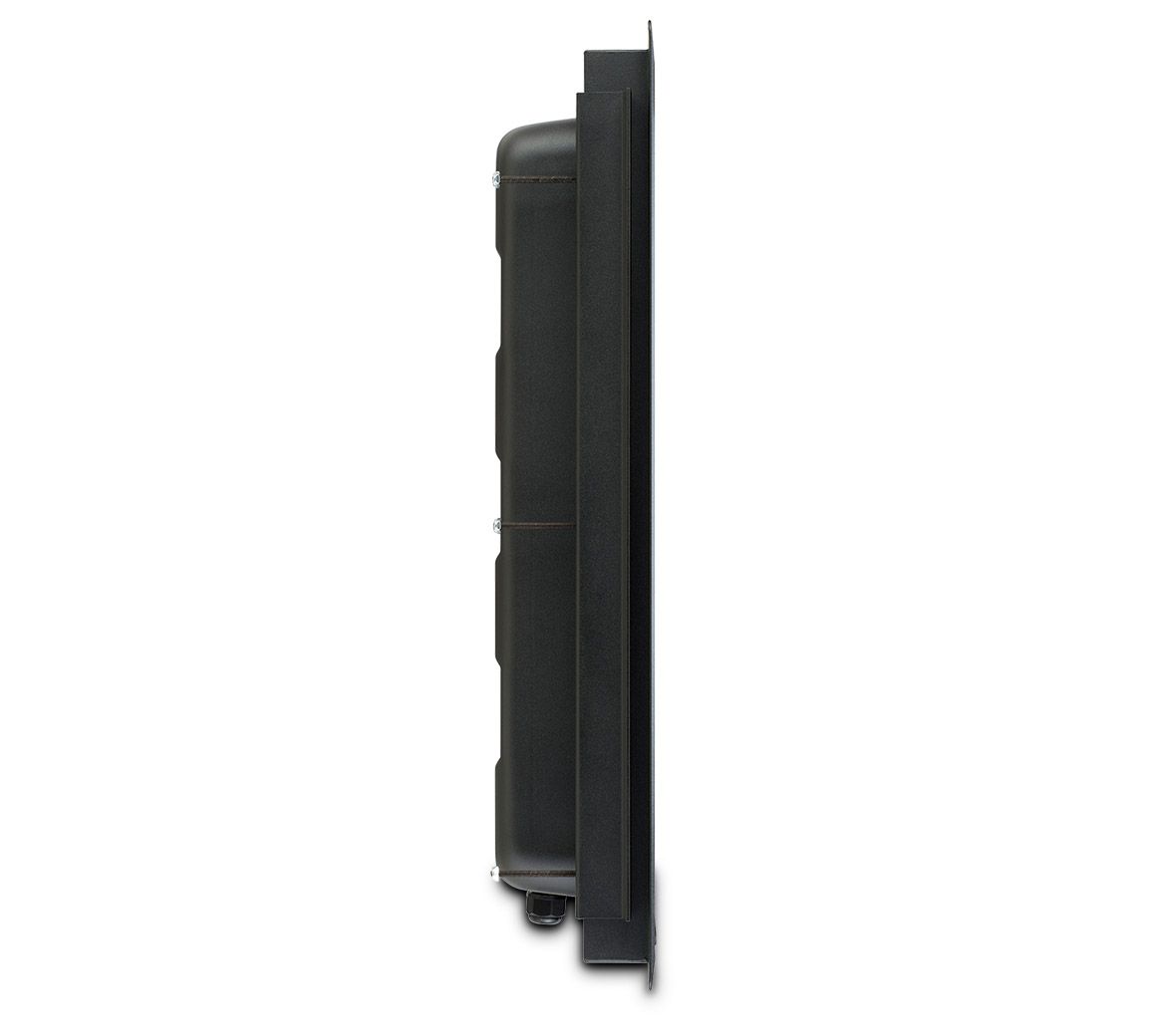

The 3-way WS500 is fully enclosed to deliver incredible performance in any environment plus a controlled air chamber minimizes distortion and response irregularities. It features two 6.5" woofers, two 2" inverted Titanium dome midranges and one 3/4" Titanium dome tweeter. The woofer is a new shallow design that fits in standard 2x4 wall construction for easy installation. The woofer utilizes a long throw, high power design with molded carbon reinforced cones with molded elastomeric surrounds for high linearity. The midranges and tweeters are the same drivers used in our XR50 and XR100 home audio speakers and deliver the same level of performance.

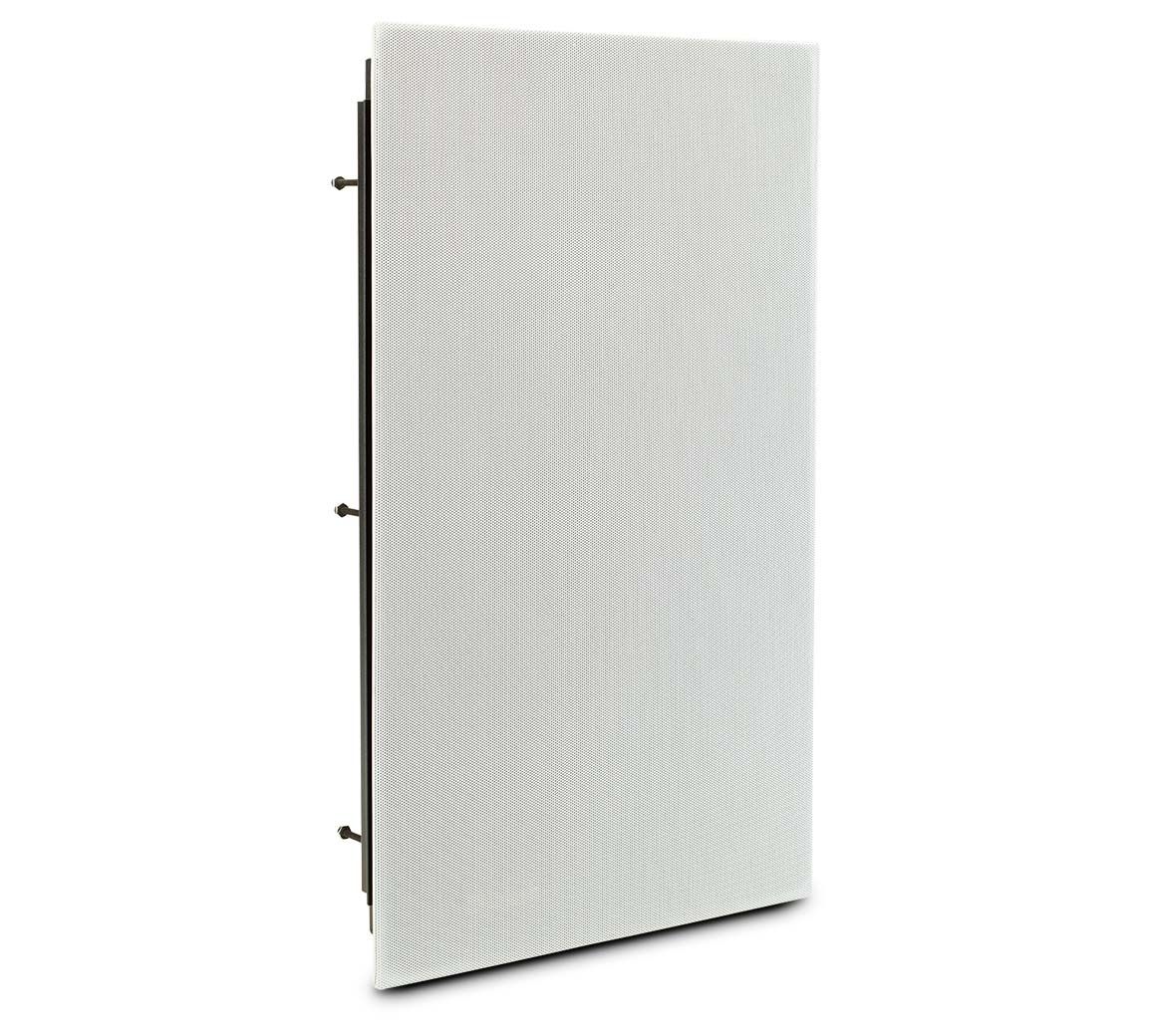

The grille magnetically attaches for easy removal. The grille is also paintable and will leave little to no visible edge of the mounting flange so the speaker can virtually disappear into its surroundings. It comes with all required hardware and mounting mechanisms for post construction installations. An optional rough-in kit (#RK500) is available if needed.

Technical Specification

McIntosh WS500

Impedance Nominal
4 Ohms

Power Rating
Up to 250 Watts

Frequency Response
80Hz to 20kHz

Sound Pressure Level, 2.8V/1m
86dB

Crossover
350Hz, 2,500Hz

Driver Specifications

Number of Woofers
2

Woofer Size
6.5"

Woofer Type
Woven Glass Fiber

Number of Midranges
2

Midrange Size
2"

Midrange Type
Inverted Titanium Dome

Number of Tweeters
1

Tweeter Size
3/4"

Tweeter Type
Titanium Dome

General Specifications

System Type
3-Way In-Wall

Grille
Magnetic metal mesh

Available Finishes
Black chassis with white paintable grille

Weights & Dimensions

Dimensions (W x H x D)
14" (35.5cm) x 23-1/2" (59.7cm) x 3-5/8" (9.3cm)

Weight
24 lbs (10.9 kg)

Shipping Weight
29 lbs (14.1 kg)

Warranty
3 Years
Manufacturer
McIntosh
Model Number
WS500
Colour
Black
Total weight
11kg
Length
9cm
Width
36cm
Height
60cm
Voltage
n/a
