McIntosh WS300

Fully Enclosed In-Wall Passive Loudspeaker

Condition: New
Warranty: 36 Months
Colour: Black
HTFH Cat. No.: EB276
£2,495.00 Each

Be the first to review this product

Contact Us

Hard To Find Hi-Fi
1 Spencer St
The Jewellery Quarter
Birmingham
B18 6DD

Monday to Friday:
10am - 5.30pm
Saturday:
10am - 5.30pm
Sunday:
Closed
Bank Holidays:
Closed

To Purchase Or Demo Please Call 0121 448 8484

McIntosh WS300
McIntosh WS300 McIntosh WS300 McIntosh WS300

Overview

For multi-channel home theater, it’s voice matched to our WS500 in-wall speaker and makes a perfect center channel speaker to use when WS500s are used for the front left and right speaker; or an entire home theater can be equipped with WS300s for the front, center and surround sound speakers. Either way, simply add one or more of our CS200 in-ceiling speaker, which is also voice matched to the WS300 and WS500, to complete the at home movie experience.

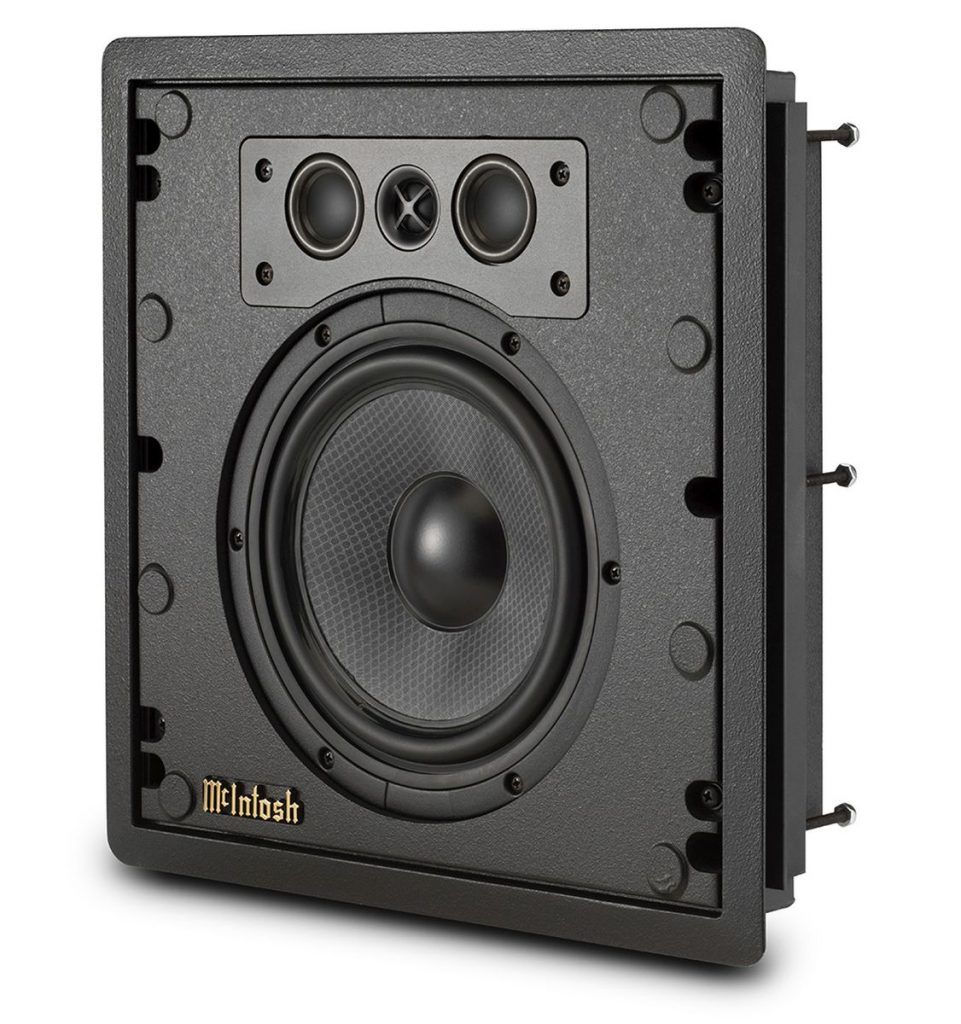

The 3-way WS300 is fully enclosed to deliver incredible performance in any environment plus a controlled air chamber minimizes distortion and response irregularities. It features one 8" woofer, two 2" inverted Titanium dome midranges and one 3/4" Titanium dome tweeter. The woofer uses a new shallow design that fits in standard 2x4 wall construction to help make installation easy. The woofer utilizes a long throw, high power design with a molded carbon reinforced cone with a molded elastomeric surround for high linearity. The midranges and tweeters are the same drivers used in our XR50 and XR100 home audio speakers and deliver the same level of performance.

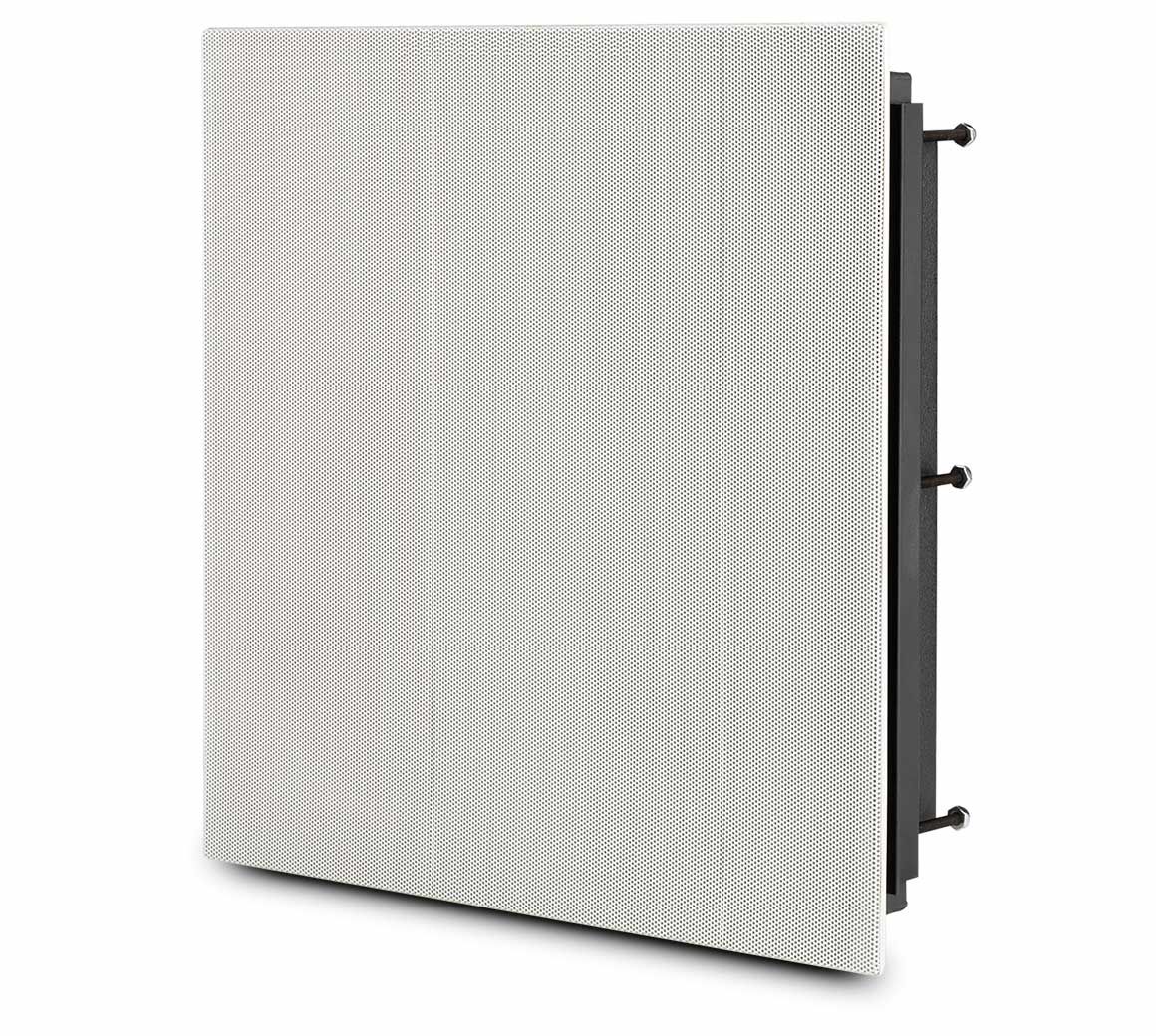

The grille magnetically attaches for easy removal; it is also paintable and will leave little to no visible edge of the mounting flange so the speaker can virtually disappear into its surroundings. It comes with all required hardware and mounting mechanisms for post construction installations. An optional rough-in kit (#RK300) is available if needed.

Technical Specification

McIntosh WS300

Impedance Nominal
4 Ohms

Power Rating
Up to 250 Watts

Frequency Response
80Hz to 20kHz

Sound Pressure Level, 2.8V/1m
86dB

Crossover
350Hz, 2,500Hz

Driver Specifications

Number of Woofers
1

Woofer Size
8"

Woofer Type
Woven Glass Fiber

Number of Midranges
2

Midrange Size
2"

Midrange Type
Inverted Titanium Dome

Number of Tweeters
1

Tweeter Size
3/4"

Tweeter Type
Titanium Dome

General Specifications

System Type
3-Way In-Wall

Grille
Magnetic metal mesh

Available Finishes
Black chassis with white paintable grille

Weights & Dimensions

Dimensions (W x H x D)
14-1/4" (36.2cm) x 14-3/8" (36.5cm) x 3-5/8" (9.3cm)

Weight
17 lbs (7.7 kg)

Shipping Weight
24 lbs (10.9 kg)

Warranty
36 Months
Manufacturer
McIntosh
Model Number
WS300
Colour
Black
Total weight
8kg
Length
9cm
Width
36cm
Height
37cm
Voltage
n/a
