McIntosh MX180

For the Home Theater of Today and Tomorrow.
Enjoy the present and be prepared for the future of home theater with the MX180 A/V Processor. With an increasing amount of blockbuster movies being released direct to home streaming, a state-of-the-art – as well as a future ready – home theater system is necessary to fully immerse yourself in the movie experience. With its advanced customization and processing capabilities, the MX180 allows for full enjoyment of today's 4K video plus tomorrow's 8K content as it becomes more available.

The MX180 A/V Processor supports 8K/60Hz and 4K/120Hz on all 7 of its Ultra High Speed HDMI ports1 (5 inputs and 2 outputs). Each support HDCP 2.3; 4:4:4 Color; Rec. 2020; Dynamic Lip-sync; Quick Media Switching (QMS) that eliminates the delay that can result in blank screens before content is displayed; and 3D Video pass-through. The HDMI outputs can either simultaneously output the same source material to two separate screens, or they can output different content from two different sources to two separate screens at the same time.

To create the most life-like and realistic picture possible, the MX180 supports a myriad of high dynamic range formats: HDR (static HDR); Dynamic HDR; HDR10+; HLG; and Dolby Vision (including low latency). These technologies will ensure every moment of a video is displayed at its ideal values for depth, detail, brightness, contrast, and color – on a scene-by-scene or even a frame-by-frame basis.

Other enhanced HDMI video features included in the MX180 will improve gameplay performance by bringing an added level of smooth and seamless motion and transitions.

Auto Low Latency Mode (ALLM) allows the ideal latency setting to automatically be set allowing for smooth, lag free and uninterrupted viewing and interactivity.
Quick Frame Transport (QFT) reduces latency for smoother no lag gaming, and real time interactive virtual reality.
Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame tearing for more fluid and better detailed gameplay.

To give you a truly immersive home theater experience and place you inside your favorite movies, the MX180 is compatible with all the leading 3D surround sound formats including Dolby® Atmos, DTS:X® Pro, and Auro-3D®. One HDMI output features both Audio Return Channel (ARC) and Enhanced Audio Return Channel (eARC) functionality. ARC allows a compatible TV to send audio data to the audio video processor over the HDMI cable, eliminating the need for separate audio cables. The more advanced eARC offers greater bandwidth so higher resolution audio formats such as DTS-HD Master Audio™, DTS:X®, Dolby TrueHD, and Dolby Atmos can be sent through the HDMI cable, allowing the MX180 to deliver the best possible sound quality.

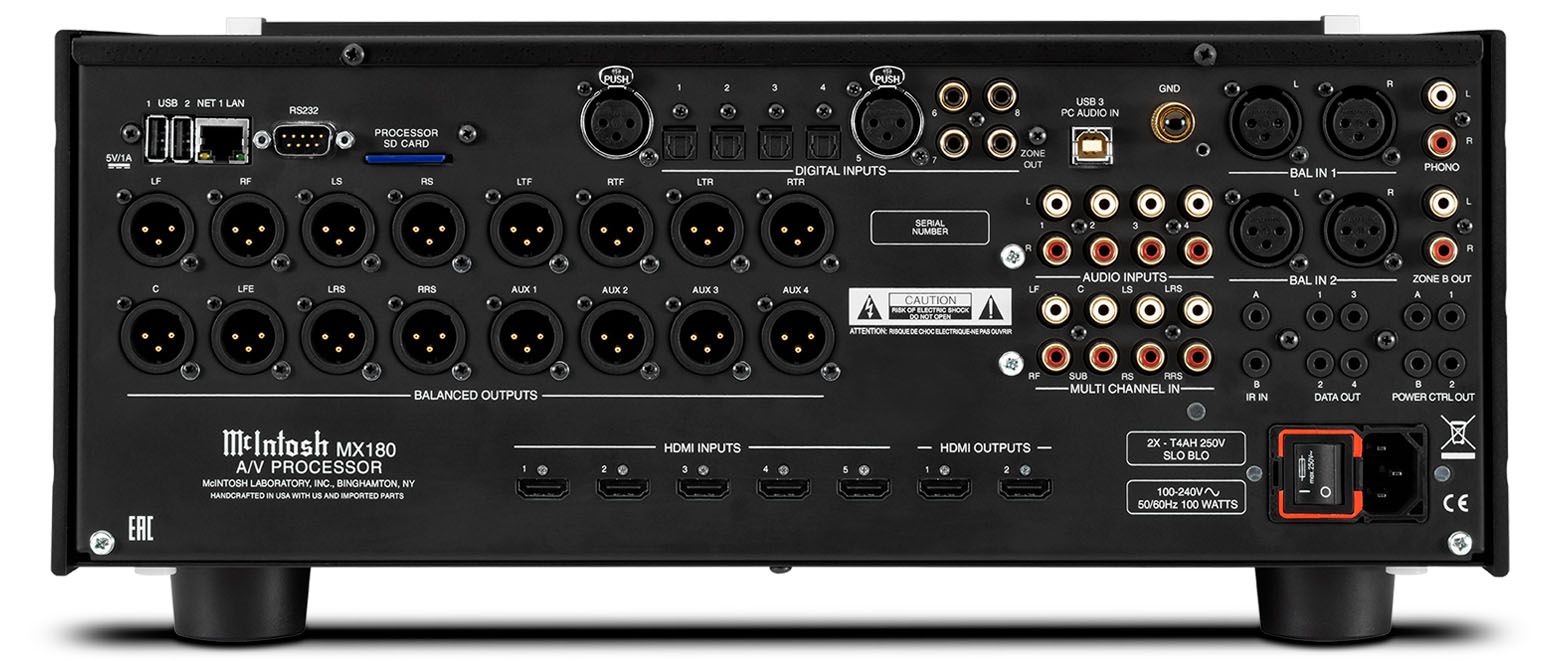

The MX180 comes with a comprehensive suite of digital inputs made up of 4 optical, 3 coaxial and 1 USB that each accept up to 24-bit/192kHz signals, plus 1 digital balanced (AES/EBU) input. There is also a set of analog audio inputs consisting of 2 balanced and 4 unbalanced inputs, a Moving Magnet phono input for connecting a turntable, and a 7.1 multichannel unbalanced input.

Up to 16 channels of discrete decoding are available. Analog audio is output to your home theater amplifiers via balanced outputs for popular 15.1 or 9.1.6 surround sound speaker configurations among others. This allows you to have a multitude of home theater speakers to create an enveloping cinematic soundstage. Depending on your speaker arrangement, 4 of the outputs can be used for bi-amping some of your speakers or to drive additional subwoofers.

To help make every seat the best seat in your home theater, it also features sophisticated RoomPerfect™ room correction technology that will measure and adjust the audio output to compensate for the specific acoustic properties of your space (calibration microphone and stand included). The MX180 combined with RoomPerfect will give you a home theater surround sound system with optimized frequency response, calibrated speaker volumes, and bass control that perfectly combines your speakers with your subwoofer(s). In addition, you will gain added flexibility in speaker selection and placement.

The MX180 features some of the latest analog to digital convertor technology to maximize the audio quality of your analog sources. All analog and digital devices can be custom named to simplify system operation. Volume levels can be matched to eliminate jarring changes in volume when switching sources. Bass and treble controls offer further audio fine-tuning. The MX180 also has a two-channel Zone B output to send stereo audio to a second zone in your house.

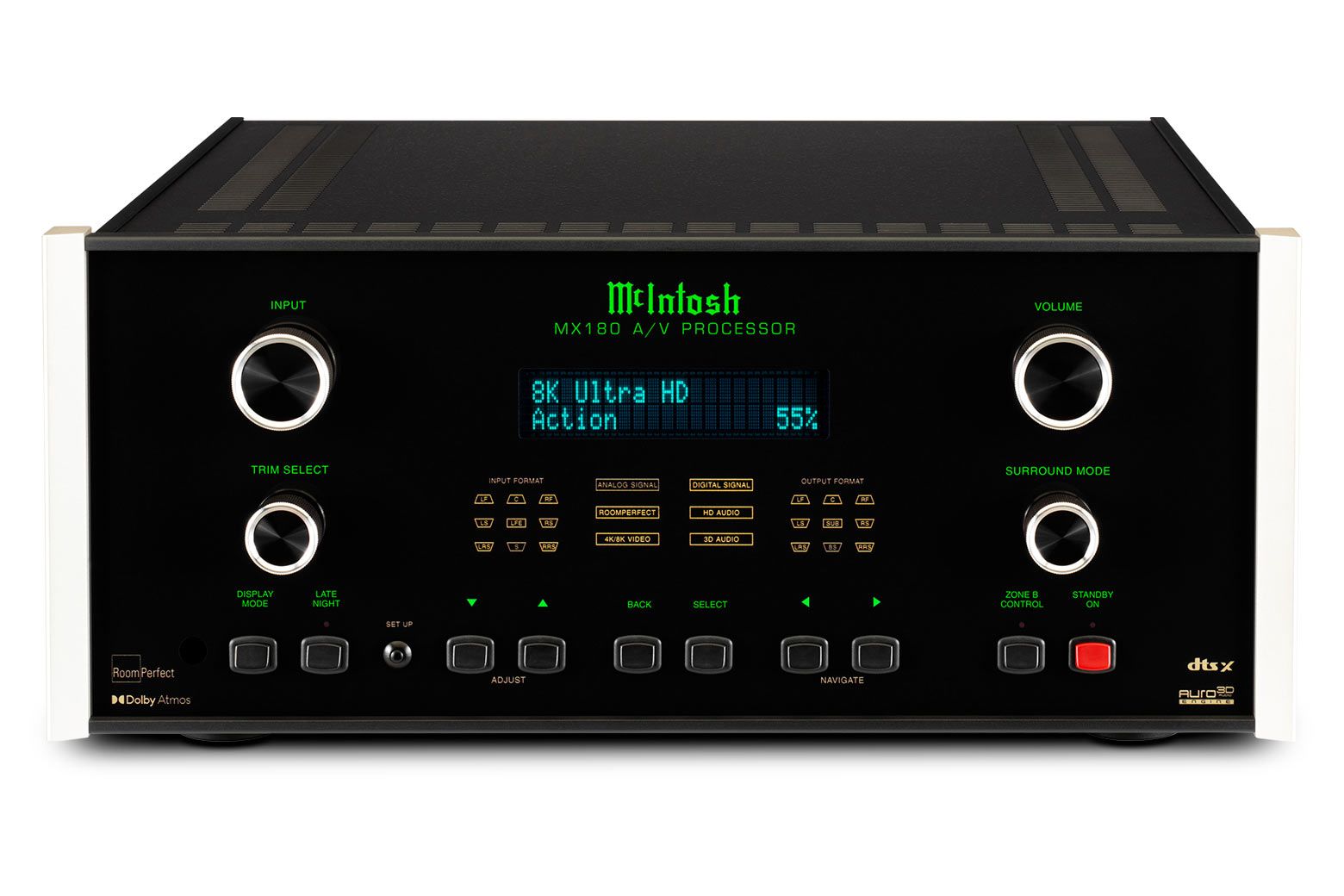

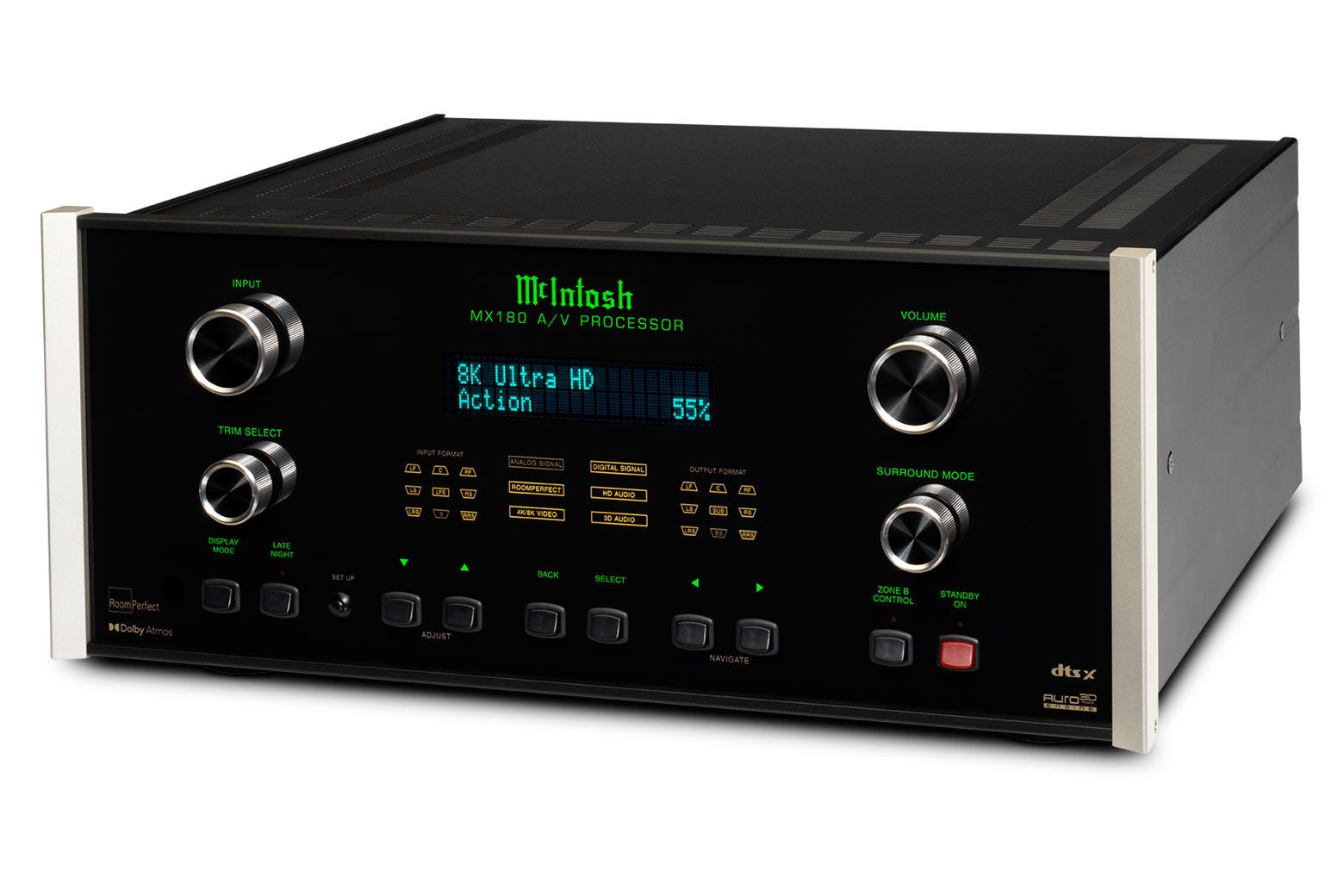

The MX180 utilizes the latest technological advancements in processing power to run cooler than previous McIntosh home theater processors. It has a robust setup program that is easy to use and allows for great customization and optimization based on your specific home theater and speaker needs. It comes with the timeless McIntosh look of a black glass front panel, control knobs, illuminated logo and custom aluminum end caps. It can be paired with a variety of amplifiers and speakers to make a complete home theater system.
