McIntosh MT2

Belt Drive Turntable

Condition: New
Warranty: 36 Months
Colour: Black
HTFH Cat. No.: EB73
£4,995.00 Each

Be the first to review this product

Contact Us

Hard To Find Hi-Fi
1 Spencer St
The Jewellery Quarter
Birmingham
B18 6DD

Monday to Friday:
10am - 5.30pm
Saturday:
10am - 5.30pm
Sunday:
Closed
Bank Holidays:
Closed

To Purchase Or Demo Please Call 0121 448 8484

McIntosh MT2
McIntosh MT2 McIntosh MT2 McIntosh MT2

Overview

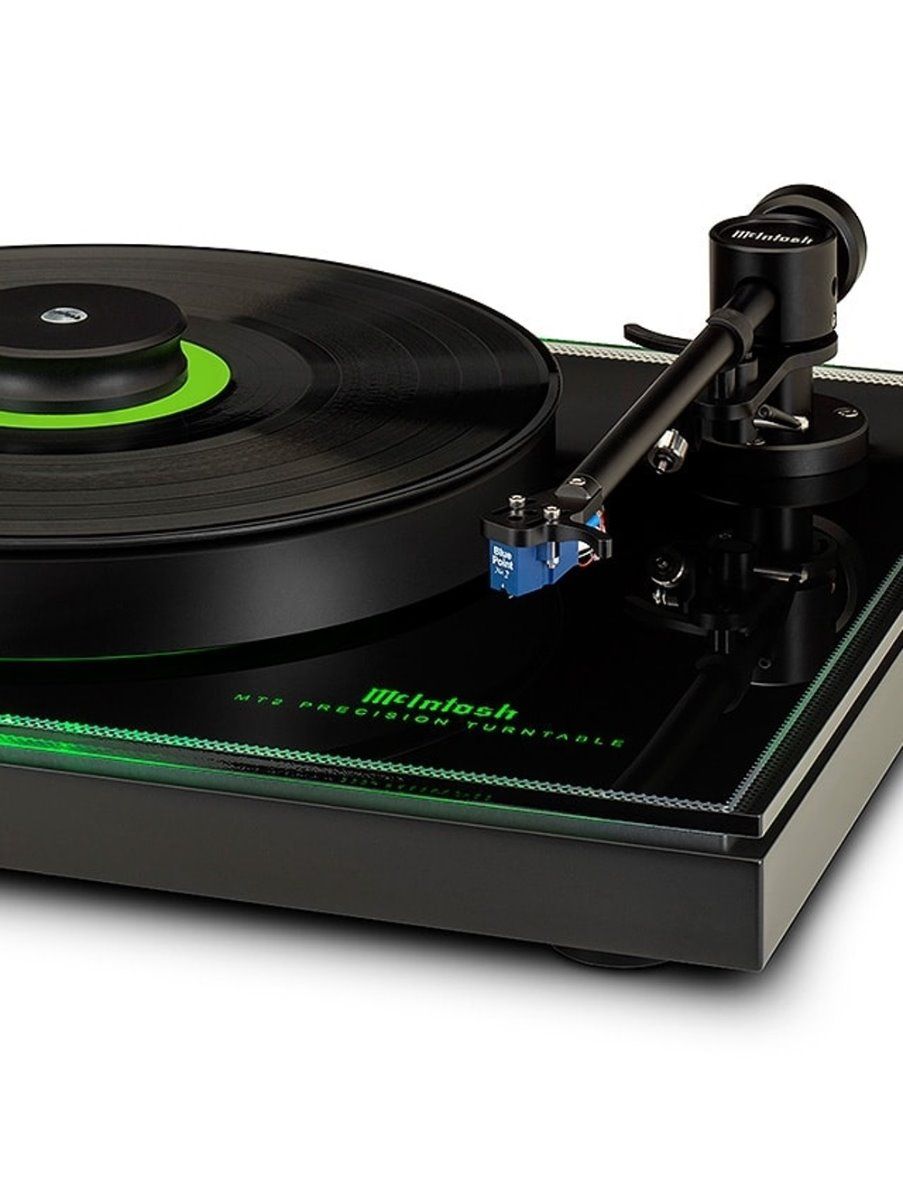

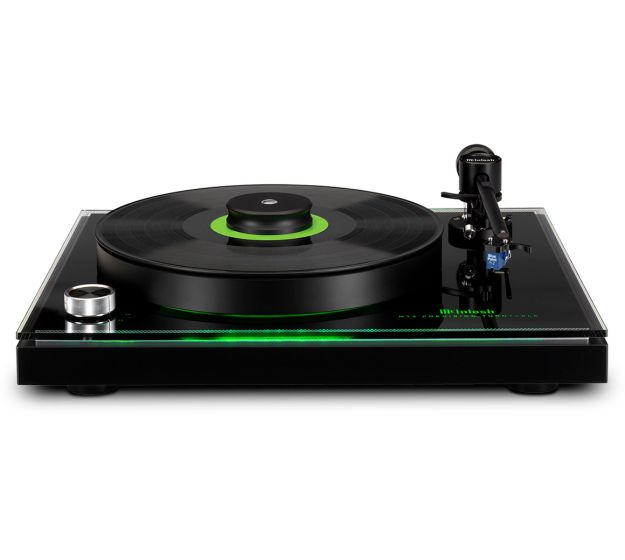

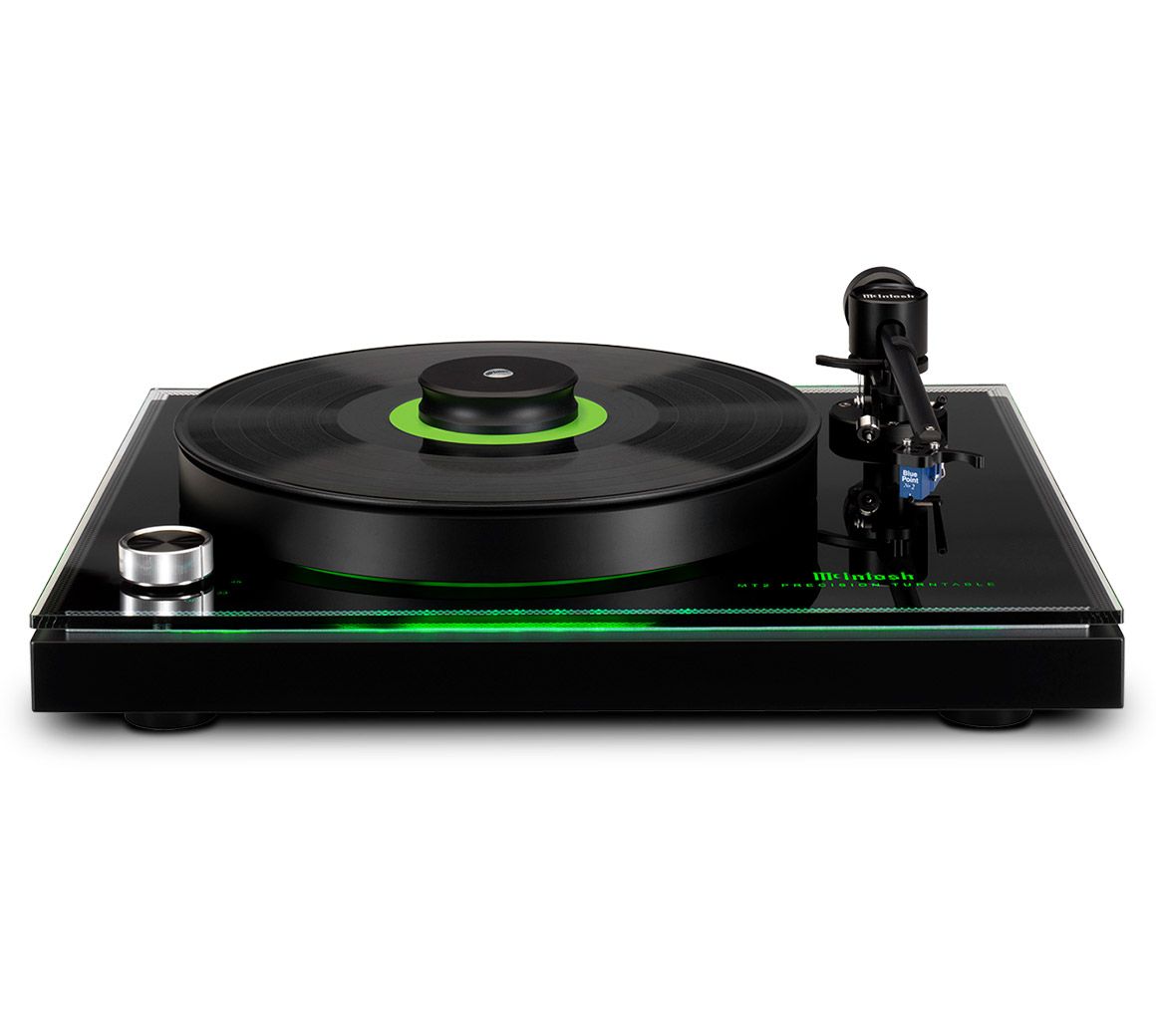

The MT2 comes with a moving coil cartridge that has a high enough output to make it compatible with not only moving coil phono inputs but also moving magnet inputs. The cartridge’s high impedance and high output voltage ensures noise free musical reproduction. This unique cartridge design features an alloy cantilever and an elliptical diamond stylus with exceptional tracking capability. The tonearm is constructed from dural-aluminum with special damping materials and is light weight yet highly rigid. The noise free vertical bearings feature two precision ceramic surfaces with damping fluid; the horizontal bearing is a gimballed sapphire design.

The belt driven, solid black outer platter is made from a special dynamically balanced polyoxymethylene (POM) and is over 1” thick. This heftiness helps to both resist and absorb external vibrations that can cause noise during playback; its large mass also provides the perfect flywheel action for stable playback speed. The inner platter is made of CNC-precision milled aluminum. The platters rotate on a polished and tempered steel shaft in a sintered bronze bushing. The DC motor is driven by an external voltage-stabilized power supply and is completely decoupled from the chassis, isolating your records from any mechanical interference. Its sturdy plinth has a resonance optimized and highly compressed wood base with black lacquer finish, while the top and middle acrylic plates help absorb unwanted vibrations.

Technical Specification

McIntosh MT2

Cartridge Specifications

Cartridge Type
Moving Coil, High Output

Output Level
2.5 mV at 5 cm/s

Load Impedance
1000 Ohms recommended (Preamp MC Input)

Frequency Response
20Hz to 50kHz

Channel Separation
35dB at 1kHz

Compliance
15 x 10-6 cm/dyne

Recommended Tracking Force
2.0 g

Channel Difference
Less than 0.5dB at 1kHz

Total Mass
6.3 g

Stylus
Elliptical Diamond

Cantilever Material
Aluminum

Tonearm Specifications

Bearing
Sapphire and Ceramic

Arm Tube
Dural-Aluminum

Counterweight
Eccentric

Adjustments
Vertical Tracking Angle, Antiskate, Azimuth

Turntable Specifications

Playback Speeds
33-1/3 and 45 rpm

Motor Type
DC Motor with Stainless Steel Brushes

Speed Control
Servo System

Platter
Dynamically balanced polyoxymethylene (POM)

Platter Bearing
Polished and tempered steel shaft in sintered bronze bushings

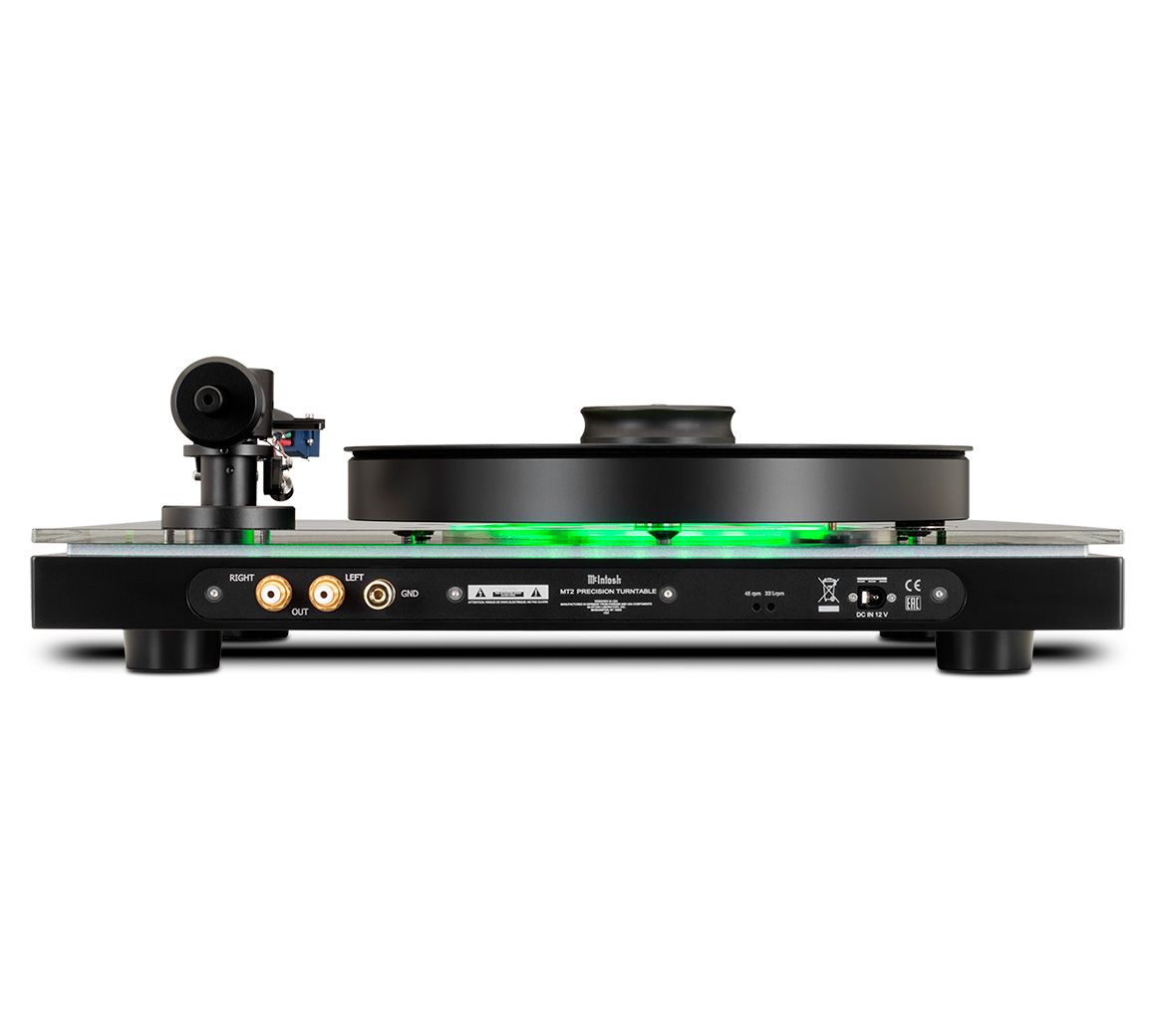

Connectivity

Stereo Outputs Unbalanced
1

Control

Power Control Input
0

Power Control Output
0

Platter Light
N/A

Speed Control Fine Adjustment
Yes

General Specifications

Dust Cover Included
Yes

Warranty
36 Months
Manufacturer
McIntosh
Model Number
MT2
Colour
Black
Total weight
13kg
Length
15cm
Width
45cm
Height
13cm
Voltage
220v / 240v Only
