McIntosh MPC1500

Power Controller

Condition: New
Warranty: 3 Years
Colour: Black
HTFH Cat. No.: EB240
  • Enables your home audio system to deliver its best possible sonic performance
  • Quick-acting surge suppression module
  • Non-sacrificial suppression module
  • Large but quiet toroidal isolation transformer
  • Repurposed blue watt meters
£6,600.00 Each

Be the first to review this product

Contact Us

Hard To Find Hi-Fi
1 Spencer St
The Jewellery Quarter
Birmingham
B18 6DD

Monday to Friday:
10am - 5.30pm
Saturday:
10am - 5.30pm
Sunday:
Closed
Bank Holidays:
Closed

To Purchase Or Demo Please Call 0121 448 8484 - FREE shipping available (UK only)

McIntosh
McIntosh MPC1500
McIntosh MPC1500 McIntosh MPC1500

Overview

Today’s AC power lines are littered with the byproduct from countless noise inducing devices. The MPC1500 Power Controller can shield your home audio components from this noise as well as protect it from power surges. With the MPC1500, you can provide clean, consistent power to your home audio system, enabling it to deliver its best possible sonic performance.

At the heart of the MPC1500 is a large but quiet toroidal isolation transformer that has been specially wound to act as a low pass filter to remove unwanted noise from the AC line. The MPC1500 also employs a quick-acting surge suppression module that activates when the voltage reaches approximately 2V above nominal operating levels. This excess voltage is slowly and harmlessly released to the circuit’s neutral wire rather than the ground wire, where it could still find its way to your audio components and cause damage. Unlike surge protection devices that use other suppression methods or “power conditioners,” the MPC1500’s suppression module is not sacrificial and will not need replacing after a surge event.

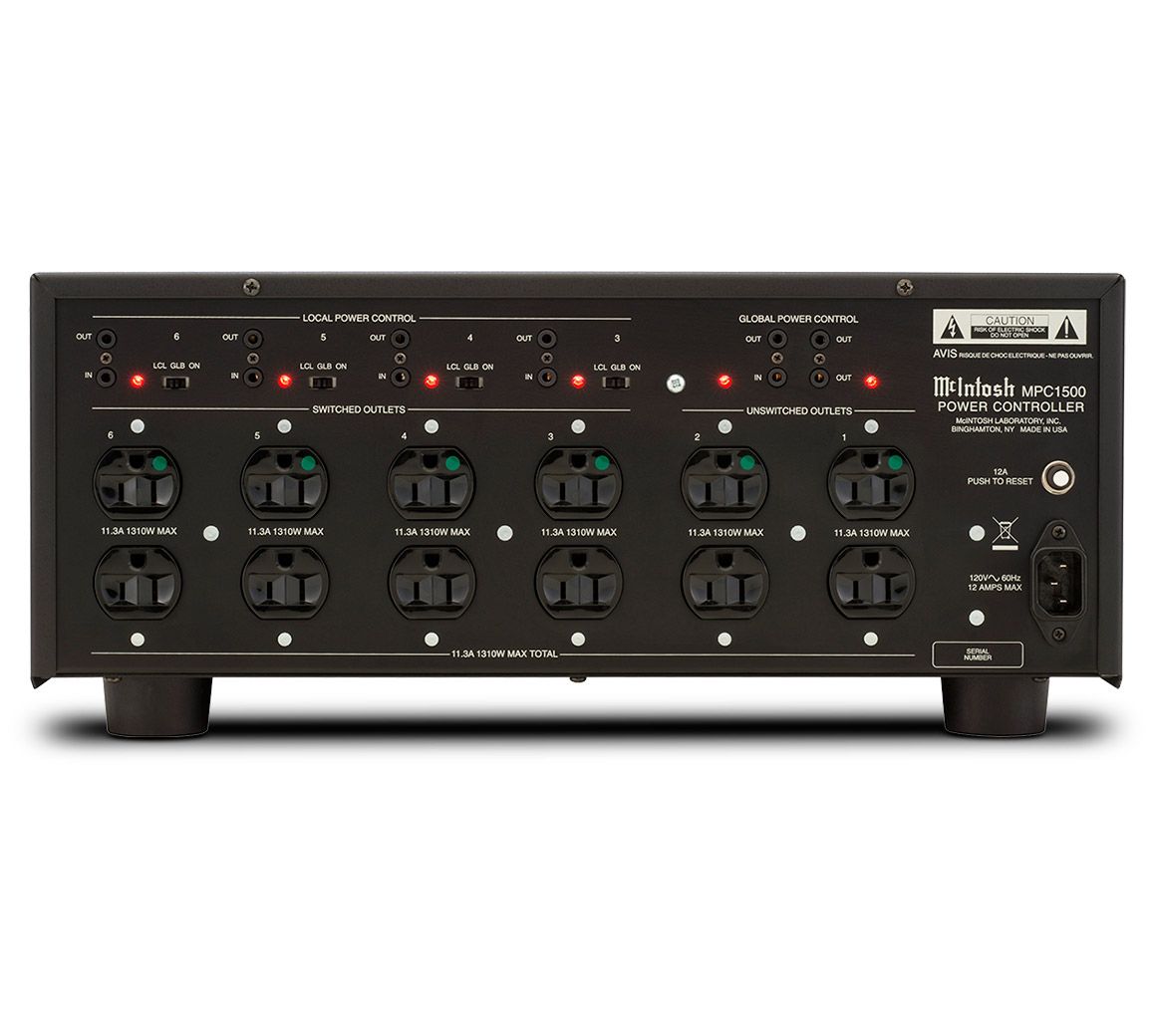

The MPC1500 comes with either 6 medical grade Type B1 (a.k.a. NEMA 5-15R) duplex receptacles, or 6 high quality Type F1 (a.k.a. CEE 7/3 or “Schuko”) single receptacles. Only the appropriate version is available in each individual country to ensure compatibility with local power systems. Two of the receptacles are always active when the MPC1500 is plugged in. Control of the other 4 receptacles can be configured to your preferences via the rear panel Power Control switches. LED indicators on both the front and back show the current in-use state of each receptacle.

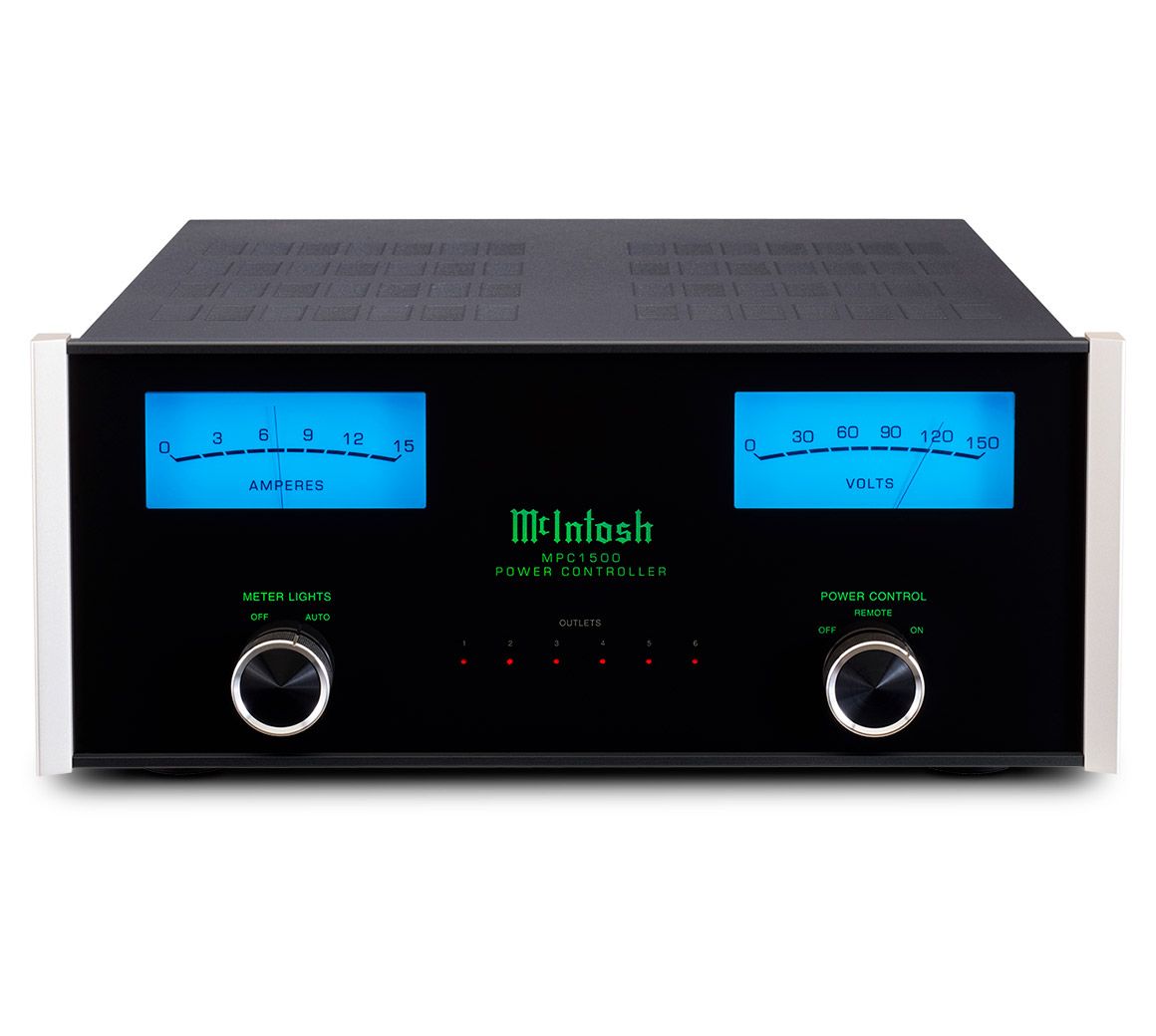

Our blue Watt meters have been repurposed to show the real time incoming voltage and the actual current draw of the connected devices. The meters will be scaled to the correct amperage and voltage based on the local country (e.g. the voltage meter will be scaled to 250 for countries that use the Type F receptacle). Regardless if the unit has Type B or Type F receptacles, all versions of the MPC1500 feature the timeless McIntosh black glass front panel with blue meters, an illuminated logo, control knobs, and aluminum end caps.

Technical Specification

McIntosh MPC1500

Load Regulation
± 2.5 %

Output Voltage
240 Volts AC Nominal

Power Requirement
240 Volts, 50Hz
12.0 Amps, maximum current
1440 Watts, maximum power

Warranty
3 Years
Manufacturer
McIntosh
Model Number
MPC1500
Colour
Black
Total weight
39kg
Length
56cm
Width
44cm
Height
19cm
Voltage
220v / 240v Only
