McIntosh MP100

Phono Preamplifier & USB DAC

Condition: New
Warranty: 3 Years
Colour: Black
HTFH Cat. No.: EB72
  • Moving Coil and Moving Magnet inputs with adjustable loading (6 settings each)
  • Balanced and unbalanced analog outputs; optical, coax and USB digital outputs
  • Using compatible software the digital outputs can rip vinyl at 24-bit/96kHz
  • Bulit in clipping indicator
  • Compact design
£3,000.00 Each

Be the first to review this product

Contact Us

Hard To Find Hi-Fi
1 Spencer St
The Jewellery Quarter
Birmingham
B18 6DD

Monday to Friday:
10am - 5.30pm
Saturday:
10am - 5.30pm
Sunday:
Closed
Bank Holidays:
Closed

To Purchase Or Demo Please Call 0121 448 8484 - FREE shipping available (UK only)

McIntosh
McIntosh MP100
McIntosh MP100 McIntosh MP100

Overview

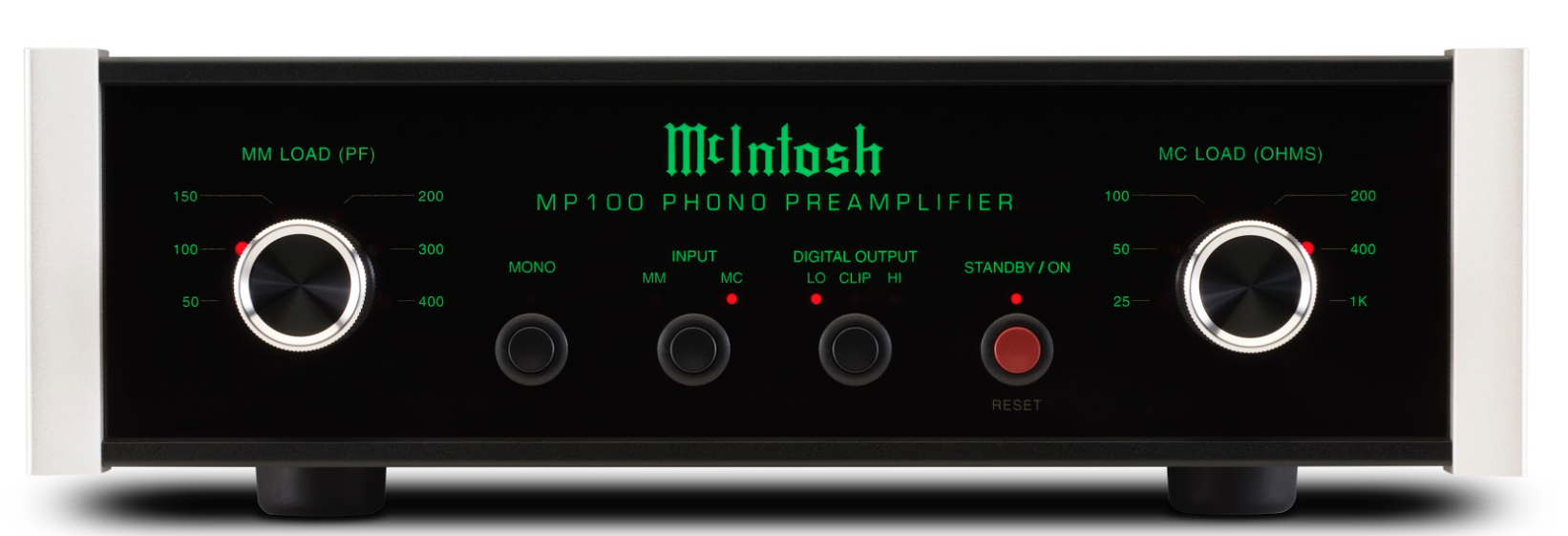

The MP100 is the first dedicated phono preamplifier from McIntosh and is designed to help both new and experienced vinyl lovers get the most fidelity, performance and – most importantly – enjoyment from their albums.

Features

packed with features

Like all McIntosh products, the MP100 is packed with features designed specifically for the vinyl lover including: Moving Coil and Moving Magnet inputs; Moving Coil and Moving Magnet adjustable loading (6 settings each); balanced and unbalanced analog outputs; optical, coax and USB digital outputs; and a Mono switch for when playing mono records to decrease noise and play the signal correctly. For pure analog use, the digital outputs can be completely disabled and powered down.

ways to integrate

There are many ways to integrate the MP100 into your audio system. If you’re new to vinyl and just building your system, it can become the main part of your setup. Or if you already have a system with an older preamp you don’t want to part with, the MP100 is an excellent way to add modern phono features. If you’ve got a home theater system and would like to add a turntable, the MP100 is an easy way to add full phono preamp capabilities without having to get a full-sized stereo preamp that would undoubtedly duplicate many of your home theater processor’s features.

Rip Your Vinyl

While spinning vinyl on a turntable is a great and unique way to enjoy music, there’s no denying the convenience of having digital versions of the albums. When used with a properly configured conversion program, the MP100 can “rip” the records to a computer via USB to produce high quality digital files. The digital outputs are fixed at 24-bit/96kHz to capture the full dynamic range of a record while optimizing digital file size. If an album has a very loud section, the clipping indicator will alert you so you can lower the digital output in order to produce a distortion-free recording.

Classic Design

Compact in size at just 3” tall, it has many ageless McIntosh design cues. It shares the same 11.5” narrow chassis design as the MXA80 Integrated Audio System, MHA150 Headphone Amplifier and MB50 Streaming Audio Player to help build a cohesive system. It can also easily be added to a system comprised of standard, wider width chassis.

Technical Specification

McIntosh MP100

Total Harmonic Distortion
0.005%

Frequency Response
±0.3dB from 20Hz to 20,000Hz

Maximum Volts Out (Balanced / Unbalanced)
16/8 V RMS

Input Impedance
Moving Coil: 25, 50, 100, 200, 400 or 1k Ohms; 470pF
Moving Magnet: 47k Ohms; 50, 100, 150, 200, 300 or 400pF

Phono Voltage Gain
Moving Coil: 60dB
Moving Magnet: 40dB

Signal To Noise Ratio
Moving Coil: 78dB
Moving Magnet: 80dB

Maximum Input Signal (Moving Coil)
8mV

Maximum Input Signal (Moving Magnet)
80mV

Maximum Input Signal (Balanced)
N/A

Maximum Input Signal (Unbalanced)
N/A

Sensitivity Phono (Moving Coil)
1mV

Sensitivity Phono (Moving Magnet)
10mV

Sensitivity (Balanced)
N/A

Sensitivity (Unbalanced)
N/A

Rated Output
2V Balanced
1V Unbalanced

Output Impedance
200 Ohms Balanced
100 Ohms Unbalanced

Phono Equalization Curves
1: RIAA

Noise Filters
0

Phono Profiles
0

Connectivity

Phono Input Moving Coil
1 (adjustable)

Phono Input Moving Magnet
1 (adjustable)

Phono Input Universal
0

Balanced Line Input
0

Unbalanced Line Input
0

Balanced Fixed Output
1 Stereo

Unbalanced Fixed Output
1 Stereo

Digital Coaxial Output
1

Digital Optical Output
1

Digital USB Audio Output
1

Unbalanced Analog Connector Type
Standard

Control

Power Control Input
1

Power Control Output
1

Digital Audio Specifications

Digital Output Sample Rate
Optical: PCM - 24-bit/96kHz
Coaxial: PCM - 24-bit/96kHz
USB: PCM - 24-bit/96kHz

General Specifications

Multi-Chassis or Single
Single

Output Meters
No

Vacuum Tube or Solid State
Solid State

Power Consumption (On)
8 Watts


Warranty
3 Years
Manufacturer
McIntosh
Model Number
MP100
Colour
Black
Total weight
4kg
Length
17cm
Width
29cm
Height
10cm
Voltage
220v / 240v Only
