The MI254 4-Channel Digital Amplifier is a versatile multi-channel amplifier ideal for use in distributed audio, home theater or 2-channel stereo playback.
Features
250 Watts into 8 Ohms & 300 Watts into 4 Ohms
It delivers 250 Watts into 8 Ohm speakers or 300 Watts into 4 Ohm speakers via its highly sophisticated closed loop digital switching amplifiers. These amplifiers are paired with extremely robust power supplies that produce performance levels rarely achieved in distributed audio.
4-Channel distributed audio amplifier

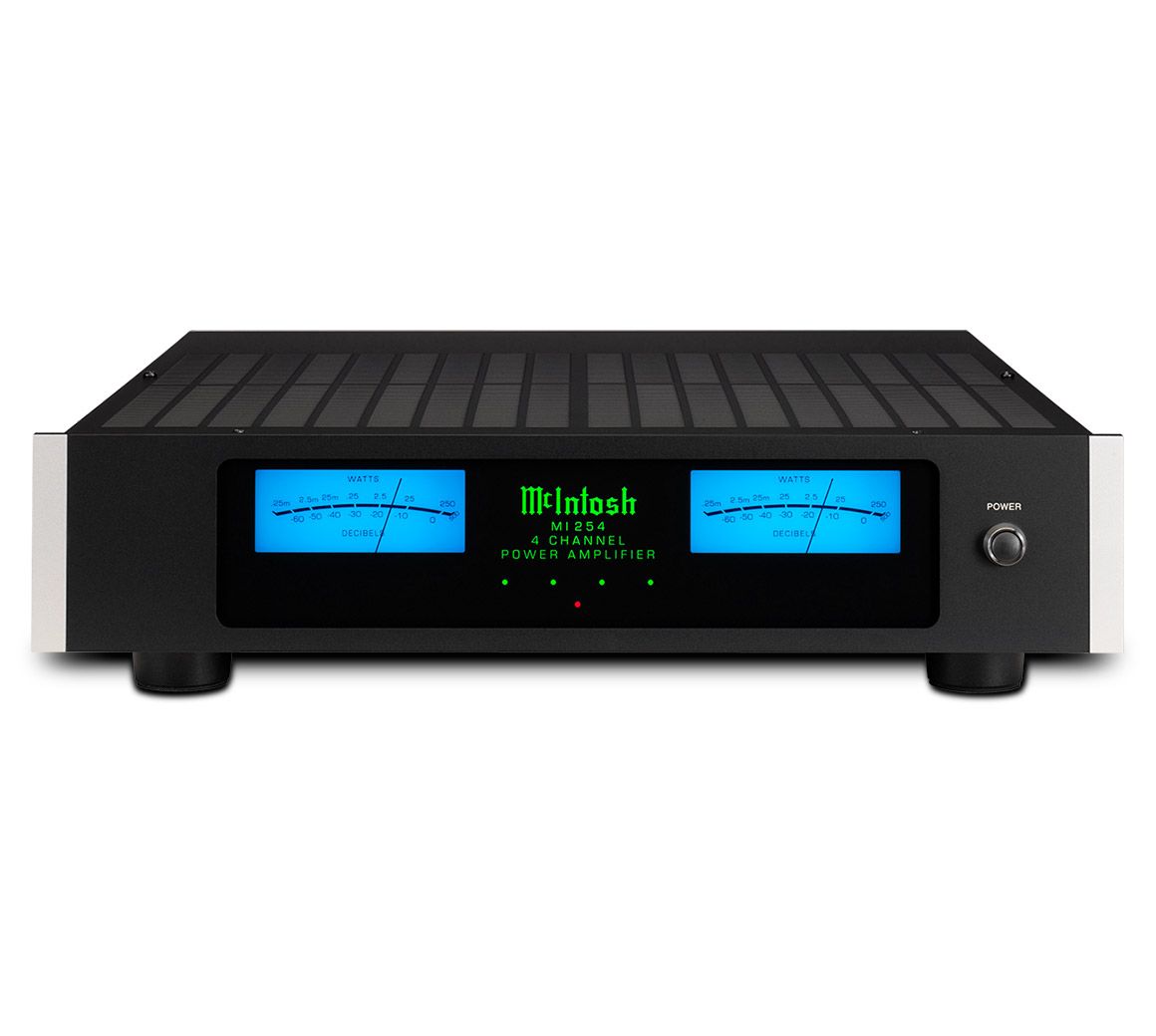

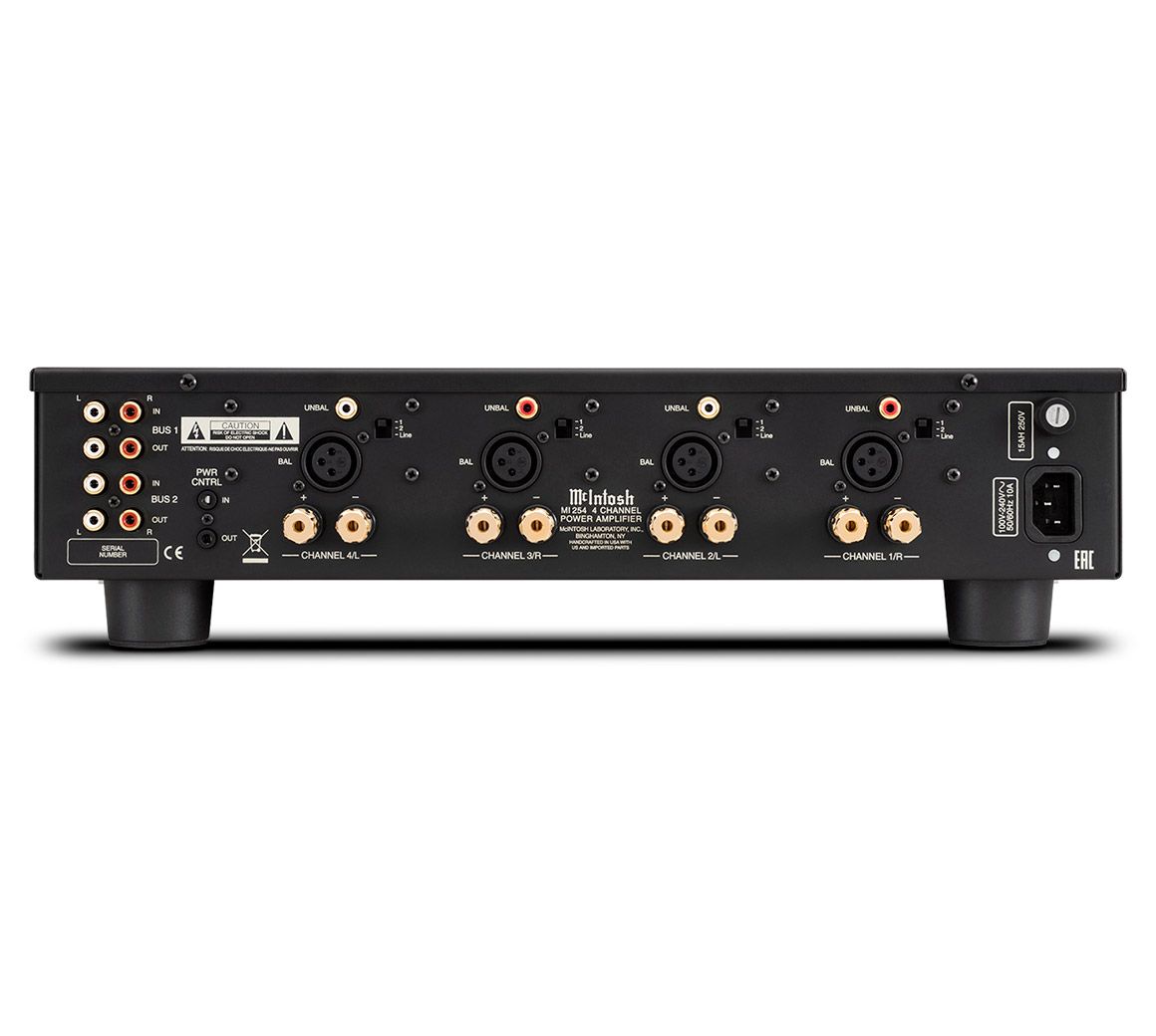

On the front panel are two blue McIntosh Watt Meters that display the summed power output of channels 1 + 2 and channels 3 + 4. Multi-color LED indicators display the status of each channel. The back panel includes both a balanced and unbalanced input for each channel along with our standard 5-way speaker binding posts.
Legendary McIntosh Design
The MI254 includes many McIntosh design cues including a black glass front panel, blue Watt meters, an illuminated McIntosh logo, and a familiar form factor highlighted by silver trim.
great to drive home theater surround sound speakers
It has installer-friendly physical dimensions and is 2U rack mountable via the included mounting ears (the mounting ears are removable for non-rack installations). As a highly efficient Class D amplifier, it does not require noisy cooling fans to maintain nominal operating temperature. In addition to distributed audio use, the MI254 is well suited for home theaters to drive surround sound speakers and could be integrated into virtually any existing home theater system.
Technical Specification
McIntosh MI254
Electronic Specifications
Power Output per Channel 250 Watts into 8 Ohms 300 Watts into 4 Ohms
Number of Channels 4
Total Harmonic Distortion 0.025%
S/N below rated output 100dB
Dynamic Headroom 8 Ohms: 2.5dB 4 Ohms: 3.5dB
Damping Factor 8 Ohms: >85 4 Ohms: >45
Rated Power Band 20Hz to 20kHz
Frequency Response +0, -0.9dB from 20Hz to 20,000Hz
Control
Remote Power Control Yes
Multi-Channel DB25 Cable N/A
Connectivity
Speaker Binding Post Type Standard
General Specifications
Circuit Configuration Closed loop digital switching
Circuit Design Digital
Mono Bridge N/A
Mono Parallel N/A
Output Type Direct Coupled
Meters Yes
Meter Light Switch No
Balanced Input 4
Front Panel Glass with removable rack mounting ears
