McIntosh MEN220

Room Correction System

Condition: New
Warranty: 3 Years
Colour: Black
HTFH Cat. No.: EB239
  • Room Correction, Custom-EQ and 2-Way Crossover
  • Has the power to optimize the sonic characteristics of the highest quality audio systems
  • Full system control and PC link are provided via RS232
  • Both single-ended and balanced connections are supported

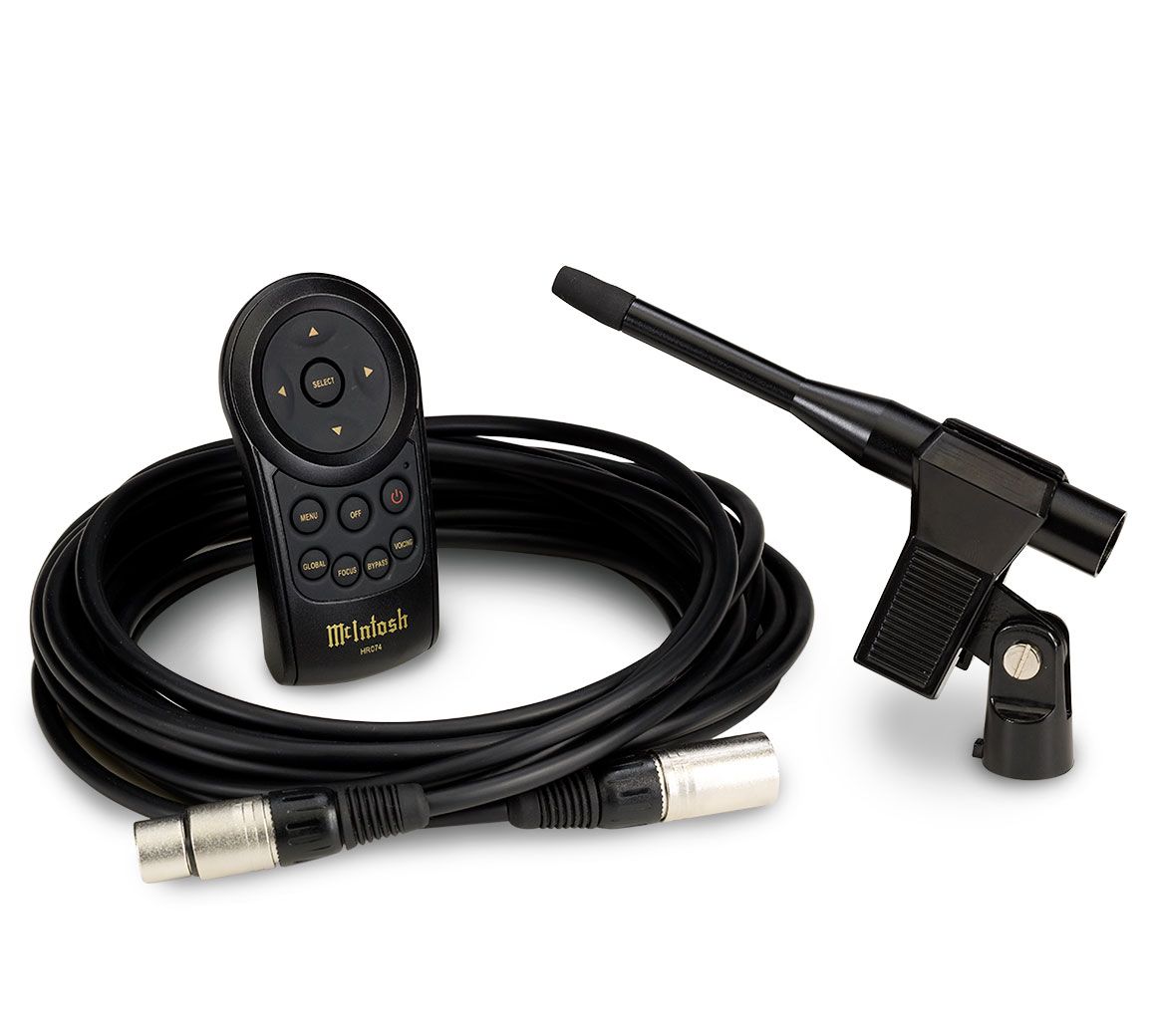

  • Remote control included
£6,800.00 Each

Be the first to review this product

Contact Us

Hard To Find Hi-Fi
1 Spencer St
The Jewellery Quarter
Birmingham
B18 6DD

Monday to Friday:
10am - 5.30pm
Saturday:
10am - 5.30pm
Sunday:
Closed
Bank Holidays:
Closed

To Purchase Or Demo Please Call 0121 448 8484 - FREE shipping available (UK only)

McIntosh
McIntosh MEN220
McIntosh MEN220 McIntosh MEN220 McIntosh MEN220

Overview

The MEN220 delivers a potent suite of Room Correction, Custom-EQ and 2-Way Crossover capabilities in one easy-to-use stereo component. While any single feature of the MEN220 has the power to optimize the sonic characteristics of the highest quality audio systems, combining all the features can reveal a level of clarity and resolution unattainable by any other means.

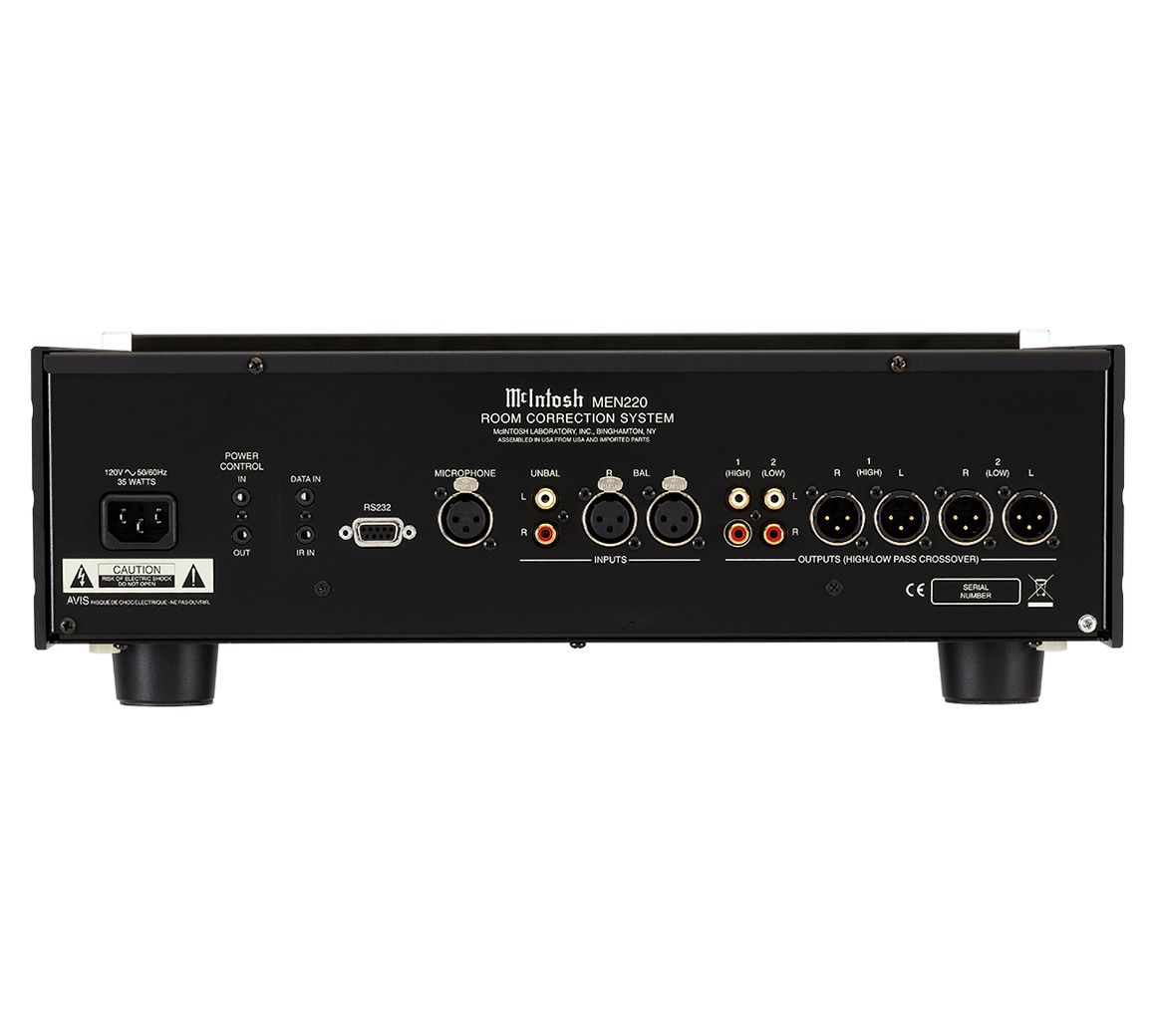

Full system control and PC link are provided via RS232 while McIntosh data, power control and IR inputs offer additional remote control flexibility. Both single-ended and balanced connections are supported; a hand-held, IR remote control is included.

Technical Specification

McIntosh MEN220

Frequency Response
+0, -0.5dB from 20Hz to 20,000Hz

Total Harmonic Distortion
0.002% from 20Hz to 20,000Hz

Maximum Input Voltage
4.5V Unbalanced and Balanced (Preamp-Power Amp)
2.25V Unbalanced and Balanced (Processor Loop)

Maximum Output Voltage
4.5V Unbalanced and Balanced (Preamp-Power Amp)
2.25V Unbalanced and Balanced (Processor Loop)

Signal To Noise Ratio (A-Weighted)
100dB

Input Impedance
10K ohms Unbalanced and Balanced

Voltage Gain
0dB

Output Impedance
50 ohms

Crossover Filter Types, Order and Slope
Butterworth, 1st order, 6 dB/octave
Butterworth, 2nd order, 12 dB/octave
Butterworth, 4th order, 24 dB/octave
Linkwitz-Riley, 2nd order, 12 dB/octave
Linkwitz-Riley, 4th order, 24 dB/octave
Linkwitz-Riley, 8th order, 48 dB/octave






Warranty
3 Years
Manufacturer
McIntosh
Model Number
MEN220
Colour
Black
Total weight
12kg
Length
46cm
Width
44cm
Height
15cm
Voltage
220v / 240v Only
