Enjoy hours of listening pleasure with the MCD600 SACD/CD Player. At the heart of the MCD600 is a newly designed digital circuit highlighted by a new premium 8-channel, 32-bit PCM/DSD digital-to-analog converter (DAC). The DAC is used in Quad Balanced mode, with 4 DAC channels allocated to each of the left and right audio channels, resulting in truly exceptional sound reproduction. All PCM signals are up-sampled up to 32-bit/384kHz.
Besides commercial SACDs and CDs, the MCD600 can also play music from user generated CD or DVD Data Discs as well as USB flash drives. Numerous file formats can be played from these discs and USB flash drives including AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA. Flash drives can easily be connected via the convenient front panel USB input.
Features
Plenty Of Outputs

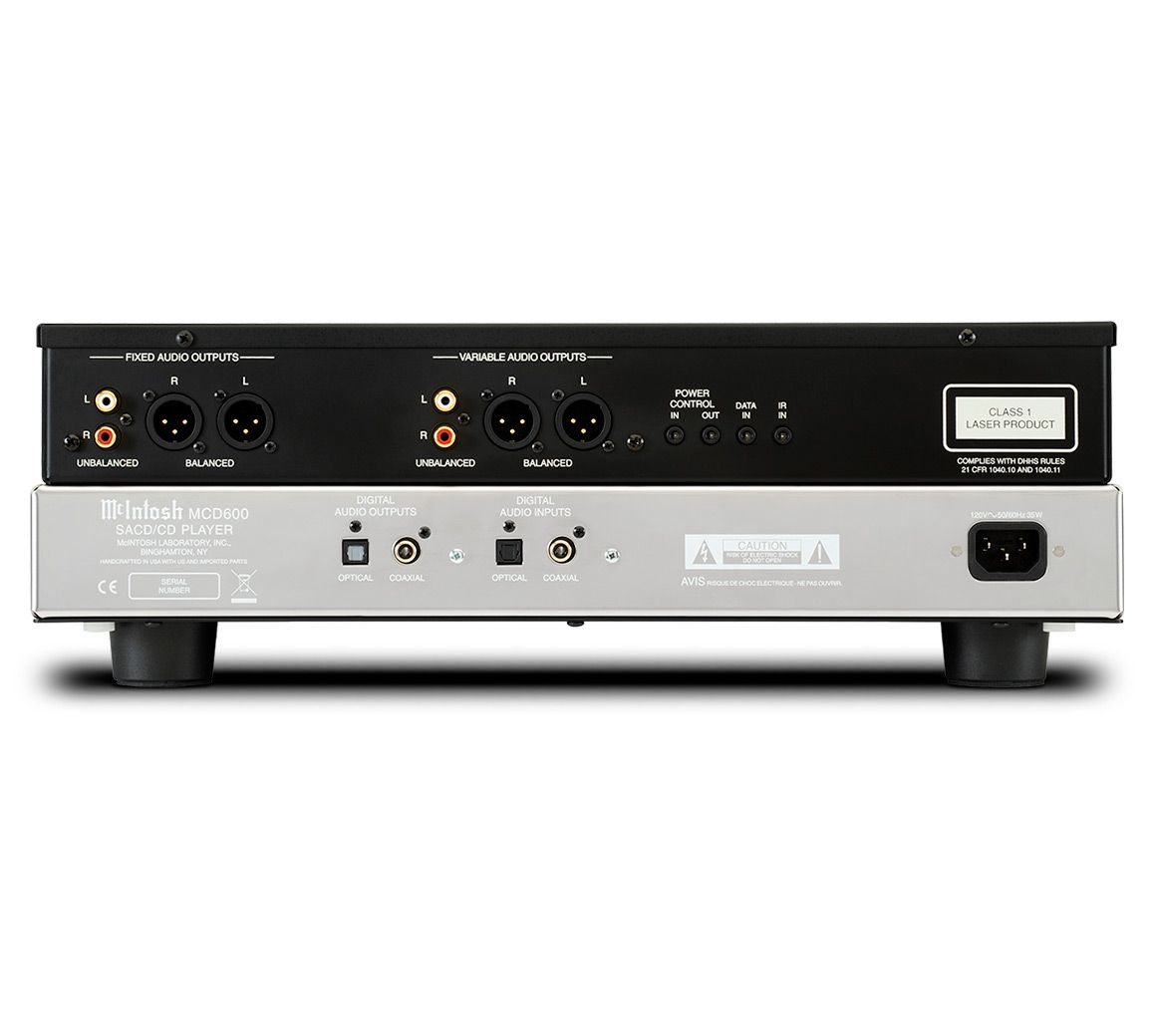

The MCD600 includes both fixed and variable balanced and unbalanced outputs; the variable outputs combined with volume control allow the MCD600 to be connected directly to your amplifier without needing a preamplifier. Coax and optical digital outputs are included if you prefer to send the digital audio signal to an external processor for analog conversion. Also included is a coax and optical digital input for connecting other digital sources. And for those times when you’re looking for a personal listening experience, the High Drive headphone amplifier section features increased gain and output power and is optimized for virtually all headphone types.
Twin Laser
A twin laser optical pickup assures optimal reading of all common disc types, including SACD, CD, CD-R/RW and DVD-R. A new disc transport with a precision die-cast aluminum tray provides smooth and quiet disc handling, while an advanced digital servo provides fast, quiet and accurate operation. The disc’s audio data is read at twice the normal rate insuring better disc tracking and error correction processing. Power Control and data ports allow for seamless Integration with other McIntosh system components.
Classic Design

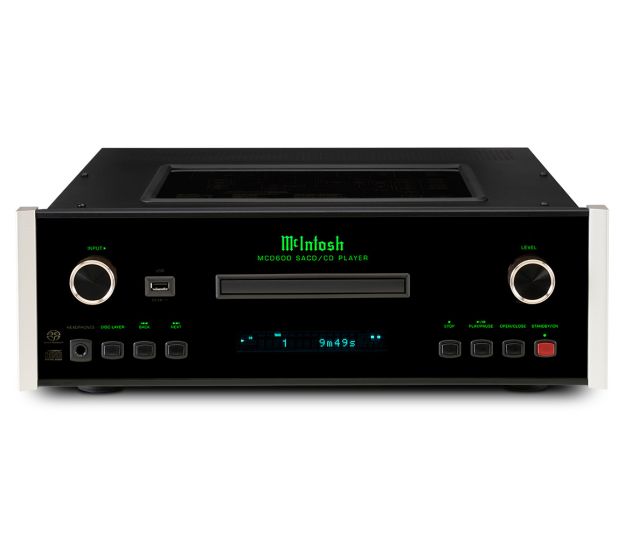

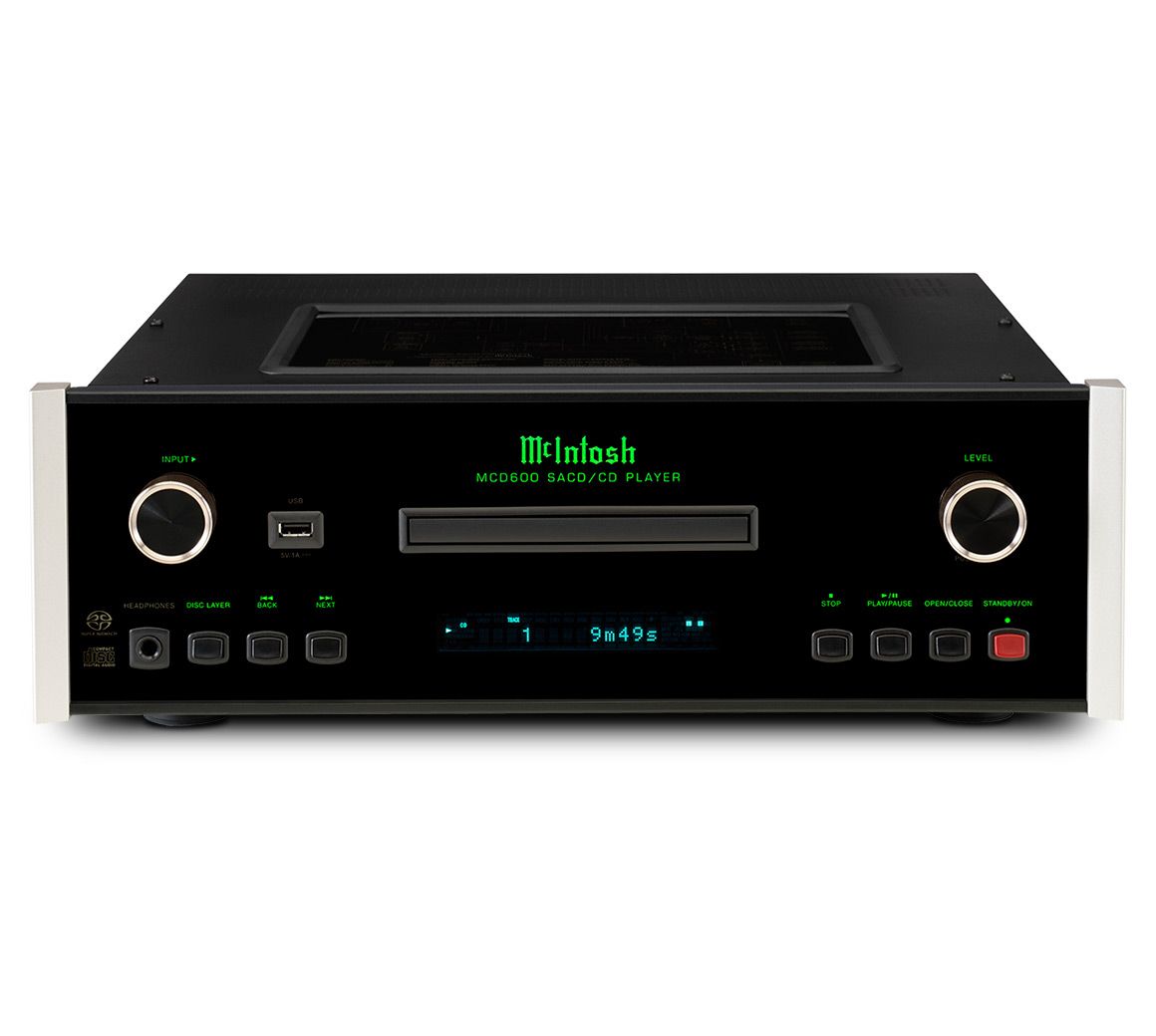

The MCD600 is wrapped in classic McIntosh styling with a polished stainless steel chassis, black glass front panel, illuminated logo, knobs and aluminum end caps. The front panel features new direct LED backlighting for improved appearance. On the top is a screen printed glass panel listing performance specs and a block diagram.
Digital-to-Analog Converter (DAC) Type Premium 8-channel, 32-bit PCM/DSD, Quad Balanced
Coaxial Sample Rate 16, 24-bit/96kHz
Optical Sample Rate 16, 24-bit/192kHz
USB Sample Rate 16, 24-bit/192kHz
Digital Coaxial Input 0.5V p-p/75 ohms
Digital Optical Input -15dbm to -21dbm
Digital Output Sample Rate Up to 24-bit/192kHz
Digital Optical Output -15dbm to -21dbm
Digital Coaxial Output 0.5V p-p/75 ohms
Digital XLR Output N/A
Digital MCT (DIN) Output N/A
Connectivity
Balanced Fixed Output 1
Unbalanced Fixed Output 1
Balanced Variable Output 1
Unbalanced Variable Output 1
Digital Coaxial Input 1
Digital Optical Input 1
Digital USB Input 1 (front)
Digital USB Input Type Type A
Digital Coaxial Output 1
Digital Optical Output 1
Digital XLR Output 0
Digital MCT (DIN) Output 0
Headphone Output 1/4" High Drive
Control
Rear Panel IR Sensor Input 1
Rear Panel Data Input 1
Power Control Input 1
Power Control Output 1
General Specifications
Disc Formats SACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA
