McIntosh MC2301

1 Channel Vacuum Tube Amplifier Monoblock

Condition: New
Warranty: 3 Years
Colour: Black
HTFH Cat. No.: EB129
  • 300 Watt Quad Balanced Monoblock
  • Valve powered
  • Unity Coupled Circuit output transformer
  • Distortion free even at high levels
  • Sentry Monitor short-circuit protection
£29,800.00 Pair

Be the first to review this product

Contact Us

Hard To Find Hi-Fi
1 Spencer St
The Jewellery Quarter
Birmingham
B18 6DD

Monday to Friday:
10am - 5.30pm
Saturday:
10am - 5.30pm
Sunday:
Closed
Bank Holidays:
Closed

To Purchase Or Demo Please Call 0121 448 8484 - FREE shipping available (UK only)

McIntosh
McIntosh MC2301
McIntosh MC2301 McIntosh MC2301

Overview

From the demands of massed chorale to full-on rock and roll, the MC2301 delivers the most extraordinarily lifelike and dynamic performance ever heard from a McIntosh tube amplifier. With an output of 300 Watts, it provides enough high power to drive even the most demanding loudspeaker. And thanks to our patented Unity Coupled Circuit output transformer, this full 300 Watts is available to 2, 4 or 8 Ohm speakers.

The MC2301 is the first McIntosh vacuum tube amplifier to use our Quad Balanced design. This design cancels virtually all noise and distortion in the audio signal. As a result, even when amplified to high levels the signal is effectively free of any distortion. Our fuse-less short-circuit protection circuit Sentry Monitor™ disengages the output stage before current exceeds safe operating levels and then resets automatically. Inputs for balanced and unbalanced cables are available to provide flexibility in connecting the rest of your audio system.

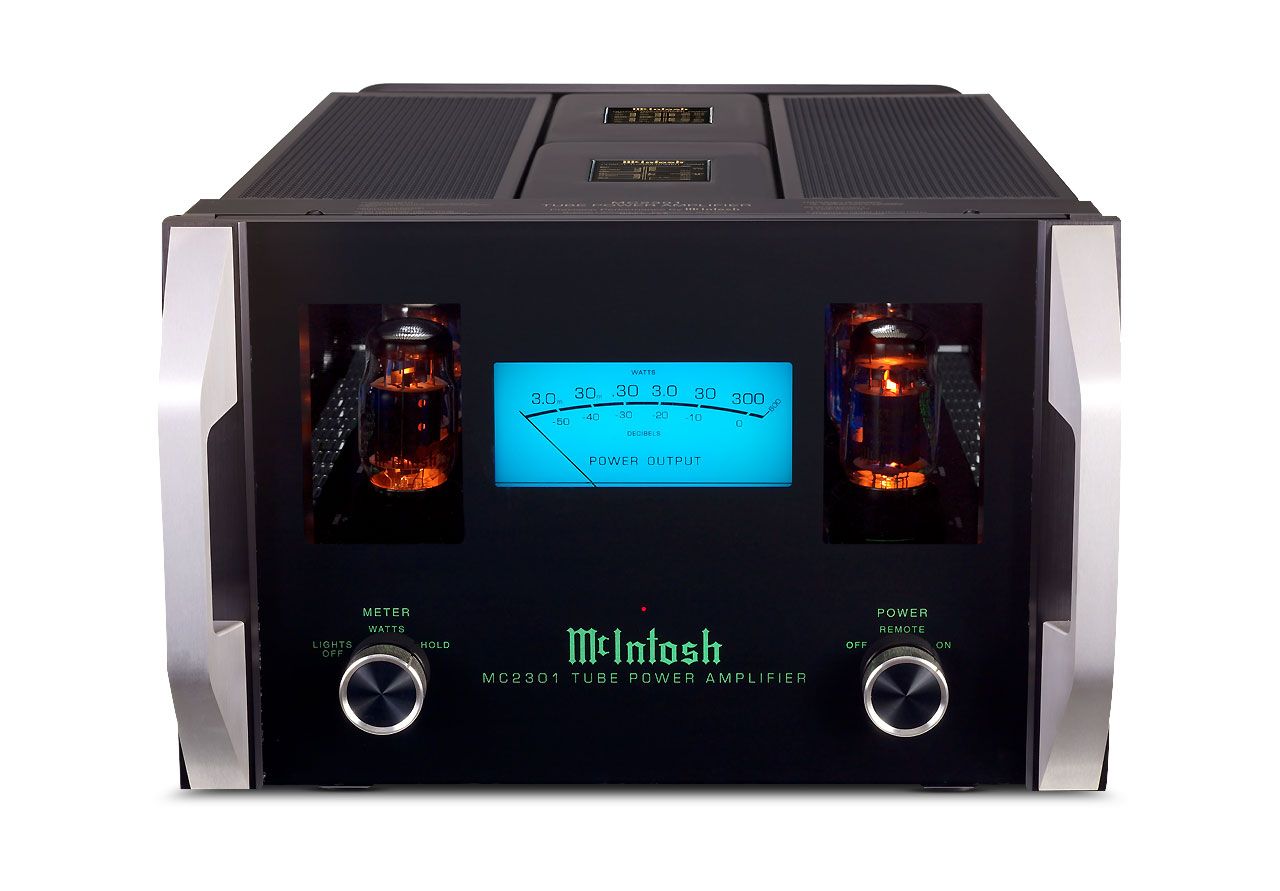

The attractive blue meter is flanked by two rows of output vacuum tubes that bring even more visual appeal to the front panel to go along with the knobs and brushed aluminum handles that all effortlessly blend with the polished stainless steel chassis. The MC2301 is well suited for stereo music systems

Technical Specification

McIntosh MC2301

Power Output per Channel
300W @ 2, 4 or 8 Ohms

Number of Channels
1

Total Harmonic Distortion
0.5%

S/N below rated output
117dB

Dynamic Headroom
1.2dB

Damping Factor
>15 Wideband

Rated Power Band
20Hz to 20kHz

Frequency Response
+0, -0.5dB from 20Hz to 20,000Hz
+0, -3.0dB from 10Hz to 100,000Hz

Control

Remote Power Control
Yes

Multi-Channel DB25 Cable
N/A

General Specifications

Circuit Configuration
Quad Balanced, Unity Coupled

Circuit Design
Vacuum Tube

Mono Bridge
No

Mono Parallel
No

Output Type
Unity Coupled Output Transformer

Meters
Yes

Meter Light Switch
Yes

Balanced Input
Yes

Front Panel
1/2" Glass with handles

Illumination
LED Fiber Optic

Chassis Style
Open Stainless Steel

Connectivity

Speaker Binding Post Type
Yes, 200 amp, 3-way

Warranty
3 Years
Manufacturer
McIntosh
Model Number
MC2301
Colour
Black
Total weight
53kg
Length
584mm
Width
450mm
Height
312mm
Voltage
220v / 240v Only
