Elegant Sounding Amplifier With Mcintosh's Iconic Look & Style.
Features
Many, Many Connections
Offering 200 Watts per channel and 14 total inputs, the space-saving MA7200 Integrated Amplifier can easily become the core of your 2-channel home audio system.
Making up its 14 inputs are 8 analog connections (5 unbalanced, 1 balanced and 1 each of Moving Coil and Moving Magnet inputs for turntables) along with 6 digital (2 each of coaxial and optical plus 1 USB and 1 proprietary MCT for use with our MCT500 SACD/CD Transport). The digital inputs are housed in our DA1 Digital Audio Module, which can easily be replaced by future modules to keep your MA7200 current with the latest digital audio technologies. The DA1 comes with an 8-channel, 32-bit Digital-to-Analog Converter (DAC) used in Quad Balanced mode. The USB input accepts PCM signals up to 32-bit/384kHz and supports up to DSD256 and DXD 384kHz for high resolution audio playback, while the coax and optical inputs will decode music up to 24-bit/192kHz. All inputs can be given custom names for user-friendly system control and configuration.
Iconic Style
The MA7200 includes our Monogrammed Heatsinks™ which are so efficient at dissipating heat that they warrant bearing the McIntosh “Mc” logo. They are connected to advanced high current output transistors that eliminate warm-up time so you can enjoy the MA7200’s full sonic capabilities from the moment you turn it on. The MA7200 is full of other McIntosh technologies including Autoformers™ to deliver the full 200 Watts to each of your speakers regardless of their impedance, Power Guard®, Sentry Monitor™, Home Theater PassThru, bass and treble tone controls, High Drive headphone amplifier with Headphone Crossfeed Director (HXD®), and gold-plated speaker binding posts.

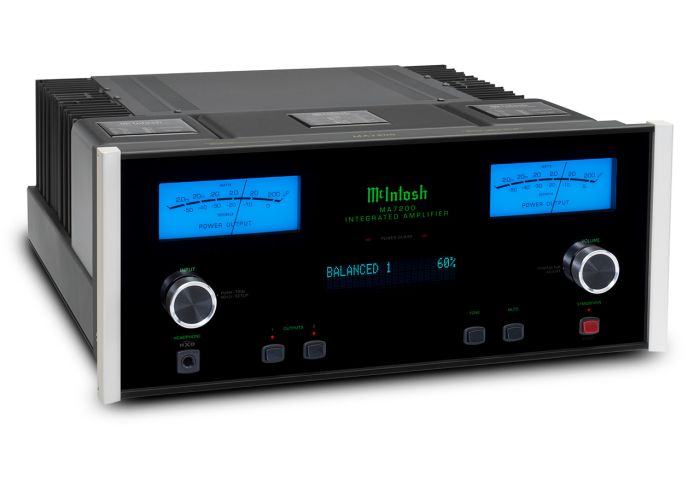

The entire unit is wrapped in the timeless McIntosh appearance with blue watt meters, a black glass front panel with aluminum end caps, control knobs and illuminated logo.
Technical Specification
McIntosh MA7200
Power Output per Channel 200 Watts Number of Channels 2 Speaker Impedance 2, 4, or 8 Ohms Rated Power Band 20Hz to 20kHz Total Harmonic Distortion 0.005% Dynamic Headroom 2dB Frequency Response +0,-0.5dB 20Hz to 20kHz Frequency Response, +0, -3dB 10Hz to 100kHz Sensitivity Phono (Moving Coil) 0.25mV Sensitivity Phono (Moving Magnet) 2.5mV Sensitivity High Level (Balanced / Unbalanced) 0.5V/0.25V Sensitivity (Power Amp input) 1.4V Signal To Noise Ratio (Moving Coil) 80dB Signal To Noise Ratio (Moving Magnet) 82dB Signal To Noise Ratio (High Level) 95dB Signal To Noise Ratio (Power Amp input) 113dB Input Impedance (Balanced / Unbalanced) 20K/20K Damping Factor >40 Maximum Output (Balanced / Unbalanced) 8V Unbalanced

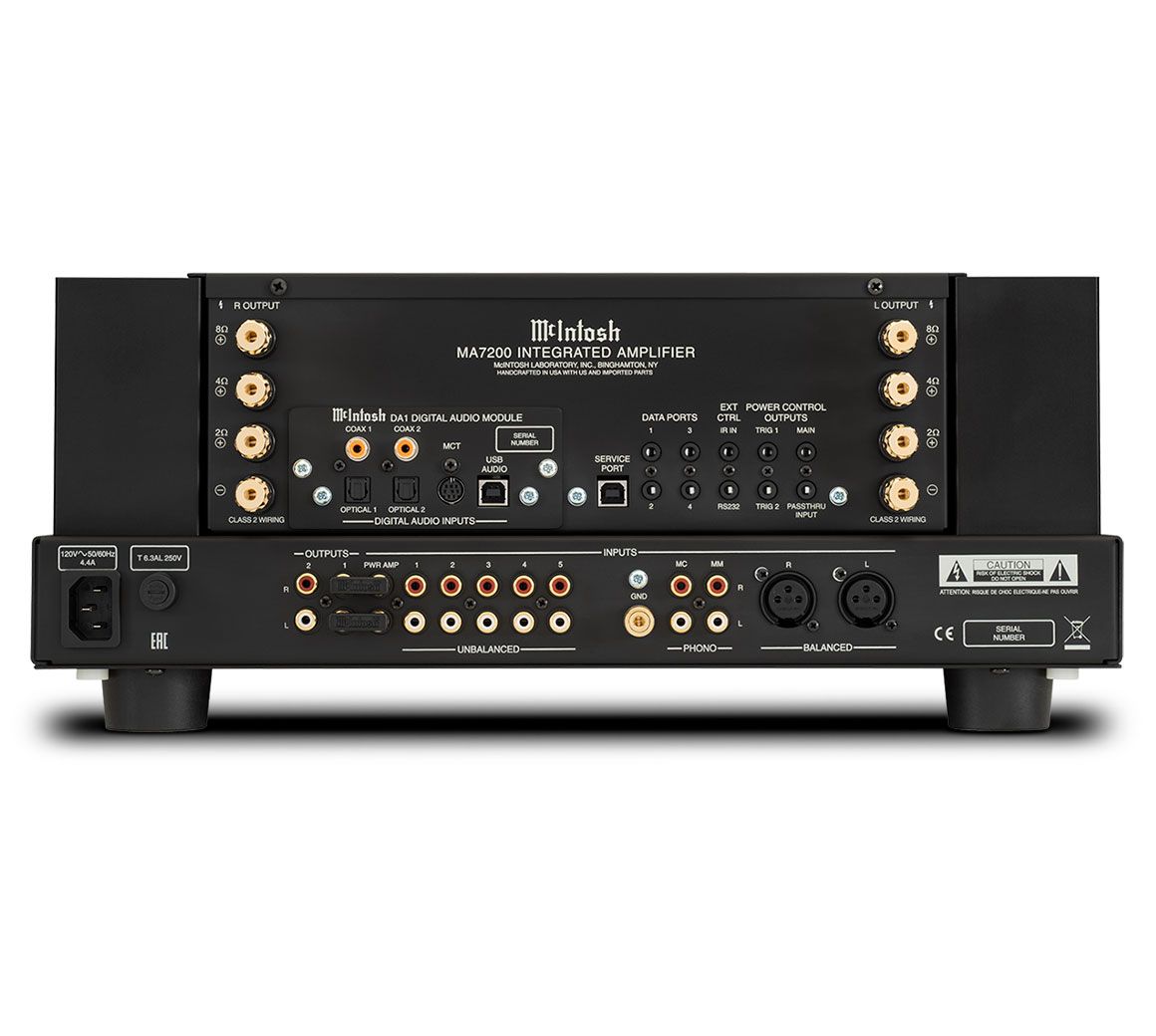

Connectivity Balanced Input 1 Unbalanced Input 5 Phono Input Moving Coil 1 (adjustable loading) Phono Input Moving Magnet 1 (fixed loading) Upgradeable Digital Audio Module Yes Digital Coaxial Input 2 Digital Optical Input 2 Digital MCT (DIN) Input 1 Digital USB Input 1 Balanced Variable Output 0 Unbalanced Fixed Output 0 Unbalanced Variable Output 2 Headphone Output 1/4" High Drive with Headphone Crossfeed Director (HXD®) Subwoofer Output 0 AM/FM Tuner option No Home Theater PassThru Yes Unbalanced Analog Connector Type Standard Speaker Binding Post Type Standard Service Port 1
Digital Audio Specifications Digital-to-Analog Converter (DAC) Type 8-channel, 32-bit/192kHz PCM/DSD, Quad Balanced Digital Coaxial Input Sample Rate 24-bit/44.1kHz to 192kHz Digital Optical Input Sample Rate 24-bit/44.1kHz to 192kHz Digital MCT (DIN) Input Sample Rate 16-bit/44.1kHz (CD) DSD64 (SACD) Digital USB Input Sample Rate 32-bit/44.1kHz to 384kHz (PCM) DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz
Control Tone Controls Bass and Treble Tone Bypass and Input Assign Yes RS232 Control Input Yes Power Control Output 1 Main, 2 Trigger Rear Panel Data Port 4 Rear Panel IR Sensor Input Yes Input Level Match Yes
General Specifications Vacuum Tube or Solid State Solid State Output Type Autoformer™ Output Meters Yes Dual Layer Chassis Yes Chassis Finish Black painted steel McIntosh Monogrammed Heatsinks™ Yes Power Requirement 120V 50/60Hz, 4.4 amps Standby Power Requirement <0.25 Watts
