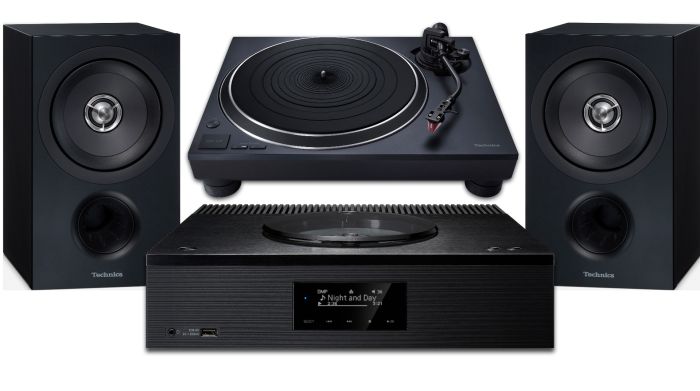

Technics C600 Complete Hi-Fi Package

Technics SA-C600

The Network CD Receiver SA-C600 brings you a wealth of music content with a single device—everything from records, CDs, and radio to music streaming and more besides—with a luxurious audio environment courtesy of Technics’ superior sound engineering.

Full Digital Amp, JENO Engine (Jitter Elimination and Noise-shaping Optimisation)

The SA-C600 uses a fully digital amplifier incorporating Technics’ renowned digital audio technology. Its digital transmission system processes signals fully digitally in all stages from input to output. Compared to analogue transmission, this system is less susceptible to signal degradation caused by external noise, ensuring more precise signal transmission. Accurate signal processing not only delivers high-resolution digital audio but also maintains the soft texture inherent in analogue recordings.

Twin Power Supply Circuit System

The design of the power supply is extremely critical in audio systems containing CD players, amplifiers, digital circuits and other such components. To eliminate any adverse effects on the amplifier, the SA-C600 is equipped with a dedicated power supply for the amplifier circuits that is independent from all other circuits, supplying power to the two independent transformers. The wiring connections between the two dedicated transformers and the amplifier circuits are also optimised for noise reduction.

Clean Powered Clock Generator
The power supply for the clock circuit of the JENO Engine utilises the same noise suppression circuit employed in Technics’ flagship turntable model, the SL-1000R, in order to improve noise reduction. It achieves superb sound image localisation and transparent spatial expression.

Built-in Phono Equaliser compatible with MM Cartridge

The built-in phono equaliser supports MM cartridges. The phono equaliser uses a dedicated power supply and is equipped with a power supply circuit that is different from the control circuit for improved noise reduction. The equaliser circuit also features a shielded construction to shut out the effects of external noise and allows for signal amplification without any loss of fidelity.

Space Tune™

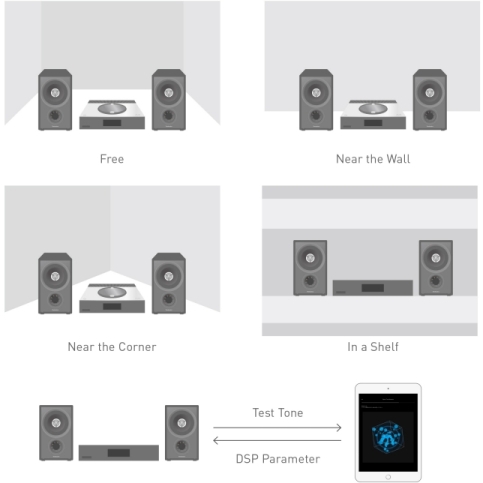

The SA-C600 is equipped with a Space Tune function that enables the adjustment of sound to suit the environment and location of the unit so that anyone can enjoy superb music reproduction. By using the Technics Audio Centre* app for tablets and smartphones or by selecting one of the four presets on the main unit—Free, Wall, Corner and Shelf—the user can achieve the most suitable sound reproduction for their specific acoustic environment.
The L/R Custom feature allows users to enter separate settings for each individual speaker, adjusting for installation under different conditions and bringing out the best sound quality in any environment.

Supports a Wide Range of Music Content
The SA-C600 supports a variety of music sources including CD, radio, phono input, optical digital input (including TVs), coaxial digital input, USB input, and more.
The SA-C600 can playback high-resolution music wirelessly. It supports not only Bluetooth® and AirPlay 2, but also Spotify Connect®, TIDAL, Amazon Music, and more, and comes with Chromecast built-in™.
The SA-C600 supports MQA and can playback MCA-CD and MQA files downloaded from music streaming services with outstanding sound quality.

Designed for Sophisticated Music Listening Experience
To ensure consistency of appearance, the design of the SA-C600 incorporates elements from Technics turntables such as colour, texture and dimensions, improving the aesthetics of the system. The aluminium top panel sports a built-in CD player with a manually operated lid for ease of use and functional beauty.

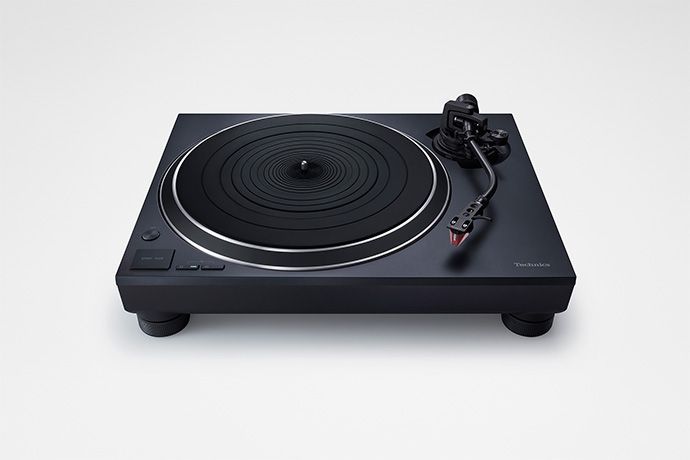

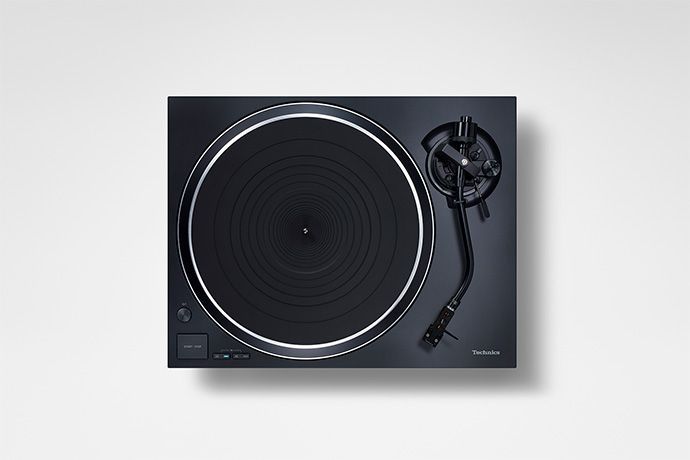

Technics SL-1500C

The Latest Coreless Direct Drive Motor Achieves High-precision Stable Rotation

The technologies acquired through the development of the SL-1200 Series and the high-end SL-1000R model were lavishly inserted into the motor drive unit, a key part of the turntable. The motor exclusively tunes the single-rotor, coreless direct drive motor adopted by the SL-1200GR in order to read the high rotation accuracy and high-precision signals of the record. Optimal motor control is conducted for the inertial mass of the two-layer structure platter on which the vinyl record is placed with deadening rubber on the entire back surface to eliminate unwanted resonance in the aluminium die-cast platter to eliminate the rotation irregularity called cogging. The aluminium die-cast chassis is rigidly integrated with a special material consisting of ABS mixed with glass fiber to achieve a two-layer construction. The insulator is comprised of a spring and rubber to provide optimal vibration-damping characteristics. The tonearm is a static-balance universal S-shape tonearm, another Technics tradition. By adopting a high-precision bearing using the same gimbal suspension construction and machined housing as the SL-1200 Series, high initial sensitivity is achieved. In addition, reliability has been improved by incorporating a removable power cable and gold-plated terminals, which have less sound quality degradation, for the PHONO and LINE terminals.

Complete Turntable with a Built-in Phono Equalizer and Cartridge

Complete Turntable with a Built-in Phono Equalizer and Cartridge In order to enjoy playing analogue records more comfortably, the SL-1500C features a built-in phono equalizer and bundled cartridge. There is no need to separately prepare either one, making it easy to link with a wide range of audio equipment. The shield structure of the built-in phono equalizer suppresses the effects of external noise and noise from the power supply. It is also equipped with a switch to turn the LINE output off when it is not being used. The turntable has been designed to thoroughly shut-out adverse effects to the PHONO output. The dedicated power supply for the PHONO output terminal is isolated from the power supply for the LINE output terminal, and has been designed to prioritize sound quality by minimising the wiring of the PHONO signal. The isolated terminals also prevent wiring mistakes. An O.r.t.o.f.o.n 2M RED cartridge, which is highly acclaimed as an MM cartridge, has been selected for the bundled cartridge. Combining this high-quality cartridge with the performance of the SL-1500C will maximise the sound quality of vinyl records.

Equipped with an Auto Lifter Function That Allows You to Enjoy Playing Records More Comfortably

When the tonearm reaches the end of the record, the Auto Lifter function automatically raises the cartridge. This prevents unnecessary wear on your valuable vinyl records and stylus. By embedding the Auto Lifter function in the base portion of the tonearm, it eliminates impacts to the tonearm. Due to a simple design that doesn’t use motor power, there is no electrical or vibrational impact and it will not prevent the movement of the tonearm. In response to requests from many users regarding the Auto Lifter function, a design that prioritises sound quality was adopted. The functions required to playback records were kept to a bare minimum, achieving simple and easy-to-use operability.

Simple Design with Functional Beauty

The SL-1500C sports a simple design without unnecessary frills, while retaining the superb operating feel that is a Technics tradition. The attractive appearance lets you enjoy playing records to your heart’s content.　

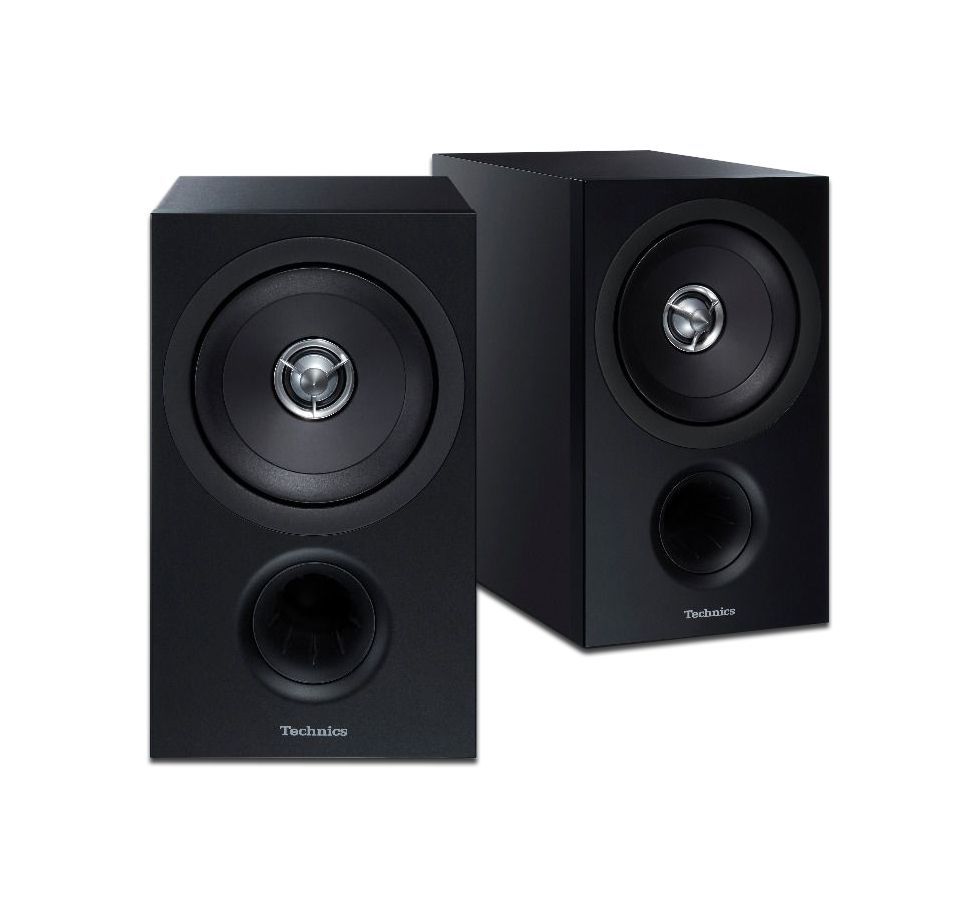

Technics SB-C600

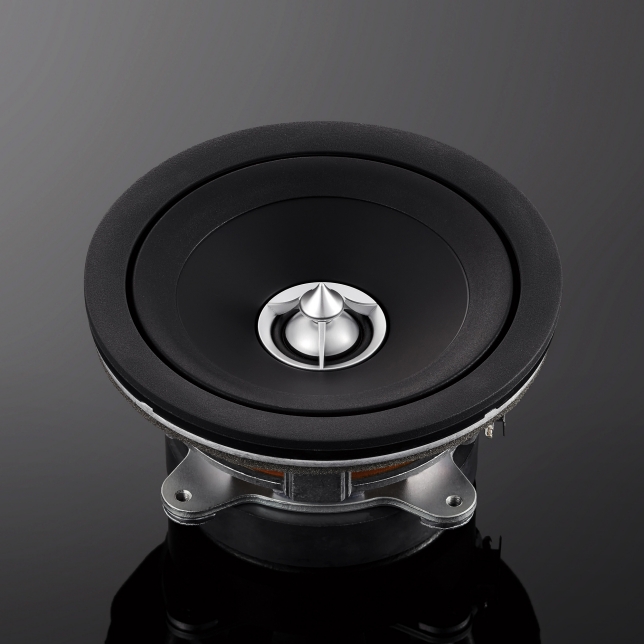

Advanced Phase Precision Driver

To reproduce music with enhanced spatial sound expressivity requires that the wavefronts of sounds radiated from the speaker unit are all aligned regardless of the listening position. The concept of point sound source is one of the ideal approaches to achieve it.
To realise the point sound source reproduction, the coaxial configuration was adopted and then it was combined with the originally shaped Linear Phase Plug for aligning phases and the Smooth Flow Diaphragm formed with a shallow-shape diaphragm and smooth edge shape for minimum sound reflection. The result is a spherical wave with aligned wavefronts of radiated sounds.
The SB-C600’s 2-way coaxial speaker unit realises clear sound image localisation and a smooth, high-quality sound, rich of emotion, while inheriting the concepts of point sound source and linear phase that Technics pursues relentlessly.

Linear Phase Plug

The originally shaped acoustic plug is positioned on the front side of the tweeter diaphragm and provides a high-resolution sound reproduction capability and a wide sound stage.

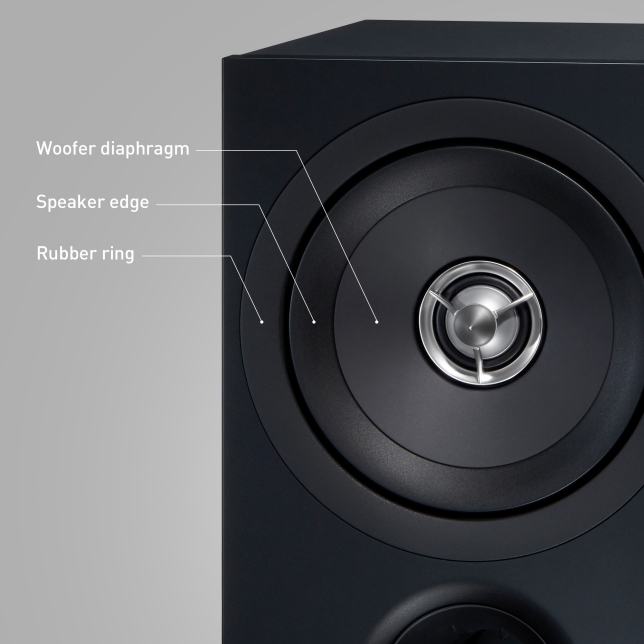

Smooth Flow Diaphragm

If the sound wave has irregularities on its sound transmitting surface, its wavefront becomes disturbed by the shapes of the irregularities, resulting in the degradation of frequency characteristics. High frequencies that have short wavelengths tend to be more susceptible to the degradation of sound characteristics. The woofer diaphragm in the coaxial speaker unit has a shallow shape and smooth edge to reduce sound reflection. The result is minimal disturbance of the wavefronts of sound waves radiated from the diaphragm to realise excellent frequency response and phase characteristics as well as wide directivity.
This configuration achieves a wide sound stage and smooth and rich mid- to high-frequency range.

Smooth Flow Port

A bass reflex port with an ordinary shape produces a large air current vortex that induces annoying high-frequency noise. Technics employed the airflow control method utilised for airplane wings and designed the cross-sectional shape of the port using flow analysis. The optimally designed port shape does not cause airflow disturbance at the opening and ensures high-quality bass reproduction with minimum noise and superb response.

Stationary Construction

It thoroughly removes undesirable or unwanted sounds and reproduces only the intended sounds with a high signal-to-noise ratio. The “Balanced Driver Mount Architecture” used in the grand class SB-G90M2 has been optimized for this model by making full use of CAE (Computer Aided Engineering). In addition, the speaker mount baffle that holds the speaker units in place has been newly designed to strengthen the rigidity of the entire cabinet. The combination of these factors maximizes the advantages of the gravity center mount structure. The rigidity and shape of each part that makes up the coaxial speaker unit has been carefully studied to eliminate unnecessary vibration and noise.

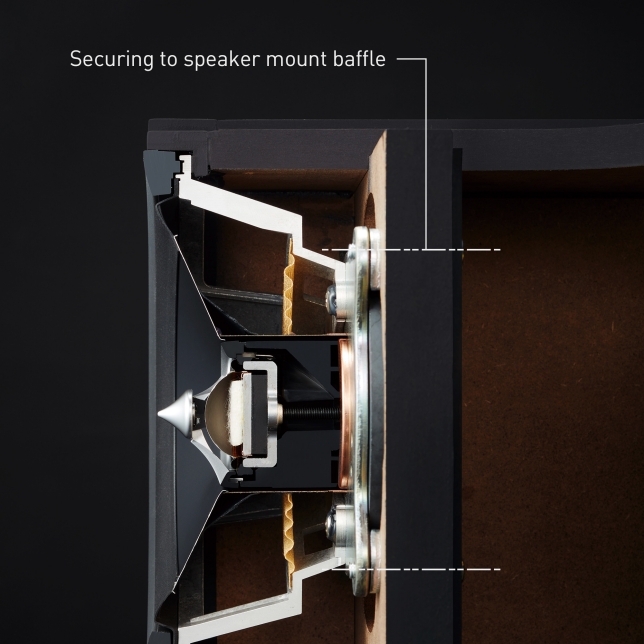

Balanced Driver Mounting Architecture

To realise a calm and low-distortion sound, the SB-C600 employs a speaker mount baffle created by optimising the low-resonance, high-rigidity design concept of the SB-G90M2 using CAE.
The originally shaped speaker mount baffle keeps the concentration of stress in check. The speaker mount baffle secures enough vent holes to ensure smooth flow of sounds radiated from the back sides of the speaker units and improve the response while maintaining low resonance and high rigidity. In addition, this structure reduces the vibrations of the entire enclosure and minimises the effects on other equipment.

High Quality Parts

The network circuit uses high-quality parts, such as polypropylene film capacitors, OFC wires and more. The speaker terminals are made of brass.

All Aluminium Diaphragms

The woofer and tweeter diaphragm are made of alumite-treated aluminium material for a unified tonal quality, and provides balanced sound like a full-range unit.

Highly Analysed and Optimised Components

To achieve accurate sound image localisation, structural parts such as spacers and wire grommets were analysed extensively for the elimination of undesirable vibrations and noise.

Matte Black Finish

The front baffle of the SB-C600’s enclosure is coated with a matte paint mixed with a powder for a beautiful matte finish.
