The SC-2 Plus is a real-time, integrated noise removal platform that adds SweetVinyl’s Surface Noise Reduction software (SVNR) to all the technology and features of the revolutionary SC-2 along with an improved A/D-D/A subsystem, a more refined analog path, improved power supply, plus a variety of digital interfaces.
The rear panel features a USB-B port that connects to a personal computer or music server and functions as a stand-alone ADC/DAC with or without noise removal; TOSLINK & SPDIF; USB-A Digital Outputs to connect to an external DAC; gold-plated RCA connectors; RJ45 Ethernet.

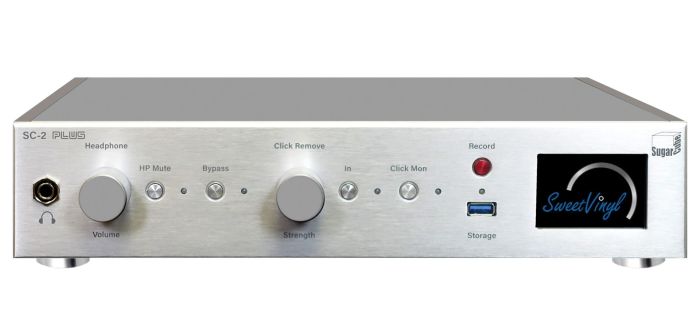

The front panel allows full control of the basic functions with push-buttons and a pairing function that is integrated with the strength knob, while an LCD display provides status.
The SC-2 Plus’s flawless Click & Pop Removal process benefits from the latest algorithm updates with version 2.0 software and SweetVinyl’s Noise Reduction (SVNR) software that provides up to 10 dB of background noise reduction with no coloration of the musical content.
The iOS and Android apps and web interface provide complete remote control of Click & Pop removal and SVNR reduction as well as ‘Analog Bypass’.
The SC-2 Plus transparently removes noise from records or tape and provides hours of enjoyment from previously unplayable media in any collection; SVNR is particularly effective with 78’s and tape.
When used as an ADC/DAC with a personal computer, the SC2 Plus can use Click & Pop/SVNR functions after the ADC or before the DAC (or none at all.)
Technical Specification
SweetVinyl SugarCube SC-2 Plus
2.0 Click & Pop Algorithm iOS, Android, and Web Apps SVNR Surface Noise Reduction LCD Front-panel Display 192K/24bit A/D-D/A New Front Panel Bezel Independent A/D-D/A operation USB WiFi Adapter Refined analog path USB-A and USB-B ports Improved power supply Gigabit Ethernet Port Full Analog Bypass or Bridging USB WiFi Adapter Adjustable Click & Pop and SVNR TOSLINK and SPDIF outputs Click & Pop Removal Monitor Full Component Size Gold Plated RCA Interconnects Excellent Build Quality Front-Panel Pairing Function Available in Black and Silver
Electronics Line-In max level = +22.7 dBu (10.6 Vrms; 30 Vp-p) Line-Out level = Line-In level THD+N = 0.0025% (A-weighted) Frequency Response = 10Hz to 75kHz -3dB DC in = 5 volts, center-pin positive Multi-stage +/- 15v internal power regulation Average Power Dissipation = 12 watts ADC / DAC Sample rates: 44.1k, 48k, 88.2k, 96k, 176.4k, 192k Bit depth: 16, 24 Level ctrl: +6dB, 0dB, -6 dB, -12dB Noise removal: after ADC, before DAC, none
General Dimensions - WxHxD: 12” x 14” x 3.5” Weight: 11 pounds (12 lbs. in box)
Connections 2x Line-In RCA (Left-Right) 2x Line-Out RCA (Left-Right) 2x USB type ‘A’ connector 1x USB type ‘B’ - connects to computer/server 1x SPDIF & TOSLINK Output 1x Ethernet: Gigabit Recording Sample rates: 44.1k, 48k, 88.2k, 96k, 176.4k, 196k Bit width: 16, 24 formats: WAV, AIFF, FLAC, ALAC, MP4, AAC, MP3 Internal workspace: holds up to 8 album sides Output via USB3 frontpanel or LAN to workstation Automatic online access to album metadata; Semi-automated track-splitting
