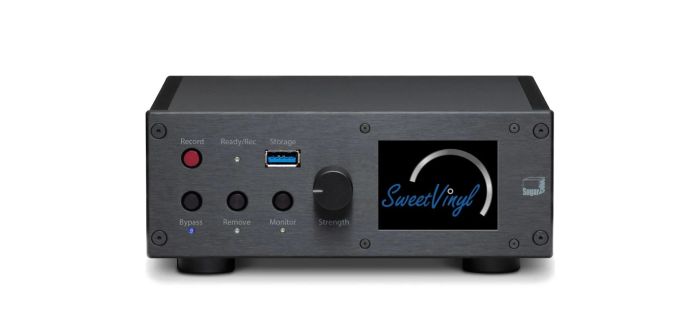

The SC-2 Mini/Phono integrates SweetVinyl’s latest version 2.0 recording functions from the top-of-the-line SC-2 in the form factor of the SC-1 Mini/Phono and includes SweetVinyl’s new phono stage.
The SC-2 Mini/Phono is SweetVinyl’s best value as it incorporates Discogs-based Album Metadata Tagging as well as easy to use track splitting. Also included: Push-button Recording, USB3 port for USB drives, & LCD display along with all the features of the SC-1 Mini/Phono.
Rear panel push-buttons select Line-in or Phono as well as MC or MM cartridges. It features gold-platted RCA connectors, an RJ-45 Ethernet port, and USB-A connections.
The SC-2 Mini/Phono provides hours of enjoyment from previously unplayable LPs in any collection, while creating digital copies in virtually any digital format.
The SC-2 Mini/Phono’s flawless Click & Pop removal process benefits from the latest algorithm update with version 2.0 software which also includes SweetVinyl’s latest LP recording system.
The iOS, Android, and laptop apps provide remote control of the Click & Pop removal and device bypass. The recording and track splitting functions work best from the laptop app.
The front-panel USB3 port will accommodate any USB storage device for saving recordings in any digital format (except DSD.)
The high-quality phono stage has gain and input loading with rear panel controls. The pre-amp provides a razor flat RIAA response, a 3-pole rumble filter, and a remarkable 10Hz to 60kHz bandwidth for exceptional transient response and very tight bass.
MM/MC Phono Stage
Front Panel Pushbutton Recording
Very Accurate RIAA, 86 dB SNR
Graphics Front Display
Selectable Gain and Loading
iOS, Android and Web Apps
Internal Rumble Filter
USB A 2.0 and 3.0 Ports
2.0 Click and Pop Algorithm
10/100/100 Ethernet Port
192K/24 Bit AKM A/D-D/A
Gold Plated RCA Interconnects
Device Bypass via Internal Relay
Excellent Build Quality
Adjustable Removal Strength
Selectable Gain and Loading
Line-In Maximum Level = +20 dBu (7.7 Vrms)
Line-Out Level = Line-In level
THD+N = 0.0025% (A-weighted)
Frequency Response = 10Hz to 60kHz
DC in = 5 volts, center-pin positive
Average Power Dissipation = 9 watts
2x Phono-In RCA (Left–Right)
2x Line-In RCA (Left–Right)
2x Line-Out RCA (Left–Right)
1x USB3-A Front-panel (for USB Storage)
4x USB2-A Rear-panel
1x Ethernet: Gigabit
Dimensions: WxHxD: 8” x 8” x 3.5”
Weight: 6 pounds (7 lbs. in box)
Gain: MM: 36/40/46 dB; MC: 54/60/66 dB
Signal/Noise Ratio: >80 dB A-weighted
Cartride loading: MM = 47k Ohms; MC = 20 Ohms to 5,000 Ohms potentiometer (continuous)
MM Capacitive Loading: 100 or 300 pF
Frequency Response: 10 Hz to 60 kHz
RIAA/IEC: ±0.5 dB, 20Hz to 20 kHz
Rumble Filter: 18dB/octave, -3 dB at 11 Hz
Sample rates: 44.1k, 48k, 88.2k, 96k, 176.4k, 196k
Bit width: 16, 24
Formats: WAV, AIFF, FLAC, ALAC, MP4, AAC, MP3
Internal workspace: holds up to 8 album sides
Output via USB3 frontpanel or LAN to workstation
Automatic online access to album metadata;
This is a consumable item and is therefore non-returnable.
