The SC-1 Mini/Phono incorporates a high-quality MM/MC phono stage with all the technology and features of the revolutionary SC-1 SugarCube in an integrated platform - all at the original price of an SC-1.
Rear panel push-buttons easily select Phono or Line-In Inputs and MM and MC cartridges. It features gold-plated RCA connectors, an Ethernet port and four USB ‘A’ connections. Inside it has 192K/24 AKM AD/DA converters.

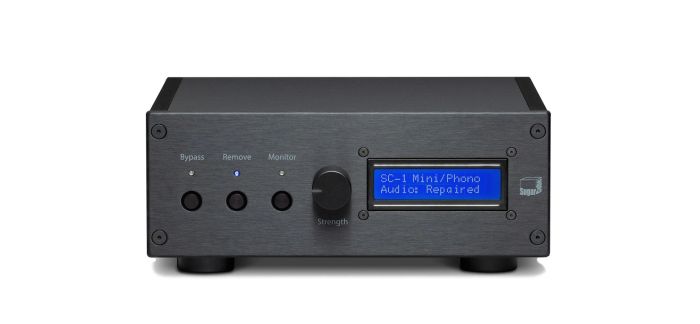

The front panel has full control of the basic functions with push-buttons and the pairing pin is integrated with the strength knob and an LCD display provides status information.
The SC-1 Mini/Phono's flawless ‘Click & Pop Removal’ process benefits from the latest algorithm updates with version 2.0 software. The iOS and Android apps and web interface provide remote control of ‘Click & Pop Removal’ and ‘Analog Bypass’.
The soundstage is virtually indistinguishable when the unit is engaged or in ‘Analog Bypass’.
The SC-1 Mini provides hours of enjoyment from previously unplayable records in any collection.
Technical Specification
SweetVinyl SugarCube SC-1 Mini / Phono
MM/MC Phono Stage Gold Plated RCA Interconnects Razor-flat RIAA, 82 dB SNR Front Panel Pairing Selectable Gain and Loading iOS, Android, and Web Apps Internal Rumble Filter LCD Front-panel Display 2.0 Click & Pop Algorithm USB-A and Ethernet Ports 192K/24 Bit AKM A/D-D/A USB WiFi Adapter Analog Bypass Excellent Build Quality Adjustable Removal Strength Compact Size Click & Pop Removal Monitor Black Only
Electronics Line In maximum level = +20 dBu (7.7Vrms or 22Vp-p) Line Out level = Line In level THD+N = 0.0025% (A-weighted) Frequency Response = 25Hz to 60kHz +/-0.1dB Frequency Response = 15Hz to 75kHz -3dB DC in = 5 volts, center-pin positive Average Power Dissipation = 9 watts
Inputs 2x Phono In RCA (Left-Right) 2x Line In RCA (Left-Right) 2x Line Out RCA (Left-Right) 4x USB type ‘A’ connectors
Phono Input Sensitivity (nominal): 3mV (suitable for cartridges giving 1.5mV or more including high output MC types) Signal / noise ratio: >70dB ‘A’-weighted Input impedance: 50k Ohms Frequency response: RIAA/IEC ±1dB, 20Hz to 20 kHz
General Dimensions - WxHxD (Inch): 8 x 8 x 3.5 Weight (unpacked / packed): 6lb / 7lb
This is a consumable item and is therefore non-returnable.
