Designed by Sonus faber to transmit the signal in wireless mode to Gravis V & VI subwoofers, with maximum versatility and discretion.
Features
Pairing
To use please follow the installation procedure. Hold down - usually for approx 5 seconds - until the LED starts to flash. When this occurs, press - within maximum 30 seconds - the corresponding pairing button on the subwoofer panel with integrated receiver. The radio contact will be established when the LEDs stop flashing and become fixed. The LED switches off a few moments later, once the connection is activated.
LED
If fixed light, it indicates that the unit is powered and paired with the receiver. The LED flashes during the pairing procedure or if the radio connection is not yet established.

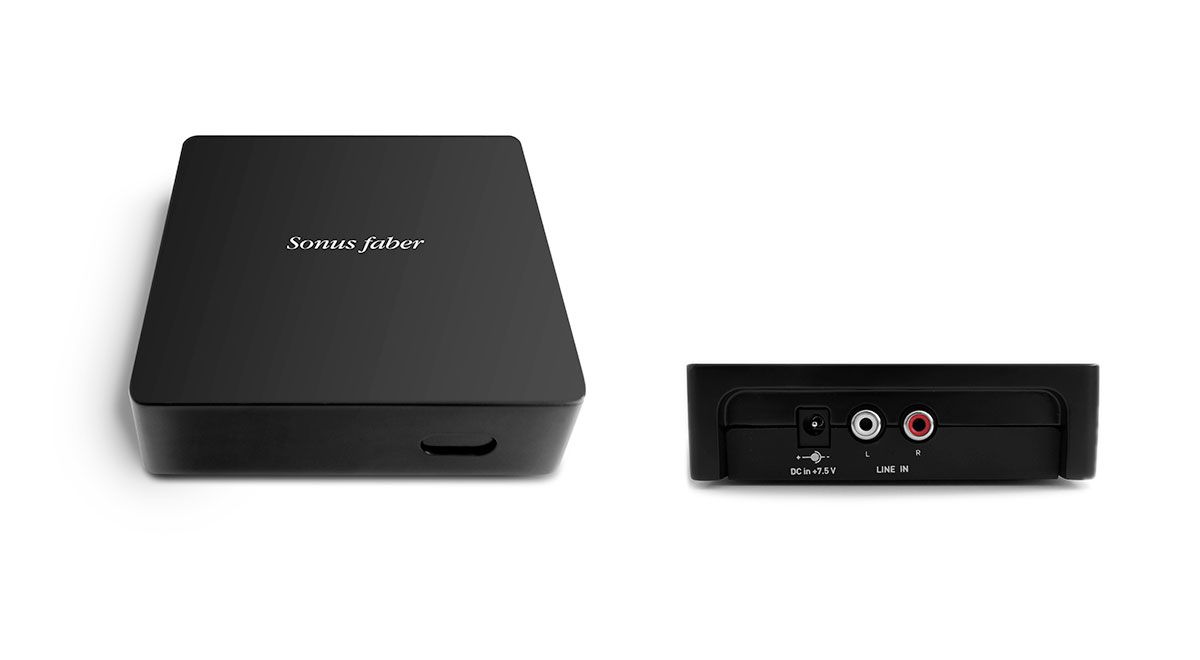

Line Inputs
The use of an RCA cable (mono or stereo) allows the transmitter to be connected to the line output of a stereo amplifier, an audio-video player (DVD, Blu-ray, etc.) or a home theatre controller/pre-amplifier, etc.
Technical Specification

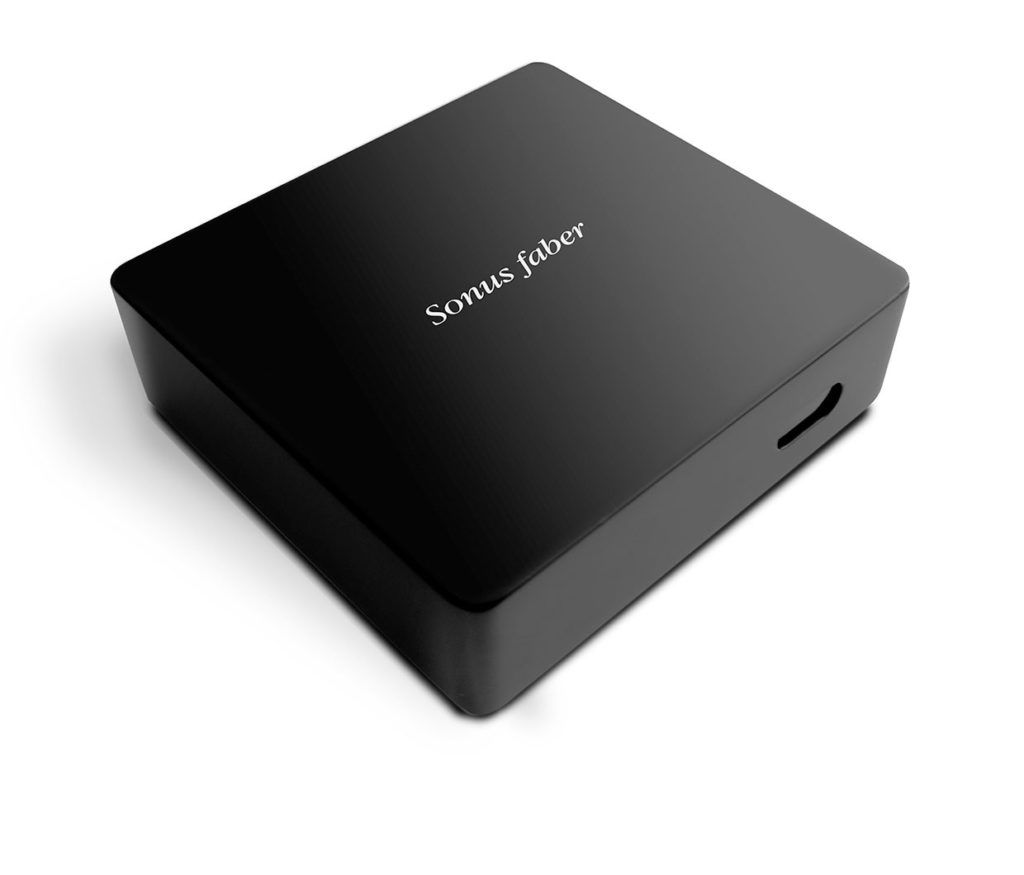

Sonus Faber Wireless Transmitter
RF Link Coverage 10 m – 3,28 feet indoor range
Inputs 2 Line-in (RCA)
Input Impedance 10k Ω
Power Consumption <0,5 W
Dimensions (HxWxD) 110 x 30 x 104 mm 4,3 x 1,1 x 4,1 in
Weight 204 g 7,2 oz
Supplied Accessories User manual AC-DC power adapter (7.5 vdc)
