Strength and grace. Dynamics and melody. Full and empty. Sweetness and impetuosity. Strong contrasts, seemingly opposites, that coexist in Music.
The Sonus Faber Signature Style The idea of the dual curvature of the cabinet sides, firstly conceptualized with the Sonus faber and evolved in Aida, is here enhanced thanks to a new design that reinvents the ``lyra`` outline merging two separate identities that cooperate inside the same shape.
From The Sonus Faber Onwards Ideas and patents developed within the Sonus faber, at first, and Aida, later, are integrated into this extraordinary loudspeaker system. The driver units technology, designed and developed by Sonus faber, sets a step forward in the technological innovation.
Features
The Top
Made Of Tempered glass, the plate covers the Lilium's top with the shape of the lily that gives the inspiration for the speaker’s name. You can see the passive radiator moving through the transparency, while infra-low frequencies vibrations invade the pavement, leaving the sound free to spread in the air.
The DAD 28 XTR-04 "Arrow point" tweeter is the definitive union between the timbre of classic drivers with dome diaphragms, and the great features of a ring tweeter. This tweeter is also configured with a double rear acoustic labyrinth decompression chamber made with resonance free solid spruce wood.
The powerful intra-woofer SW26XT-08, featuring a solid structure of soaked cellulose, works within the P.Z.I. (Pressure Zone Interface) acoustic conditions, a “ground effect” configuration that guarantees the best possible interface between the infra-low frequencies and the environment. Its output level can be adjusted through the “Deep Low Control”, for a perfect integration in the environment.
The Structure
Lilium is a loudspeaker system made up by two separate tuned enclosures, all totally independent from each other. The main full-range enclosure benefits from the use of the para-aperiodic Stealth reflex tuning system. The infra-low frequencies reproduction enclosure is implemented with our patented decoupling system Zero Vibration Transmission, with the removal residual vibration system Tuned Mass Damper and with an up firing passive radiator.
The Base
The terminal plates for connections allow tri-amplification and are located on two separate plates, to further underline the total independence of the front and rear cabinets.
The infra-woofer’s cabinet is mechanically decoupled from the rest of the Lilium’s structure and, consequently, from the floor through the patented system Zero Vibration Transmission. This system, optimized with progressively yielding environment, but it also inhibits any modulation between the infra-woofers and the frontal drivers, at the same time allowing the infra-woofers to function in “ground-effect”.
Technical Specification

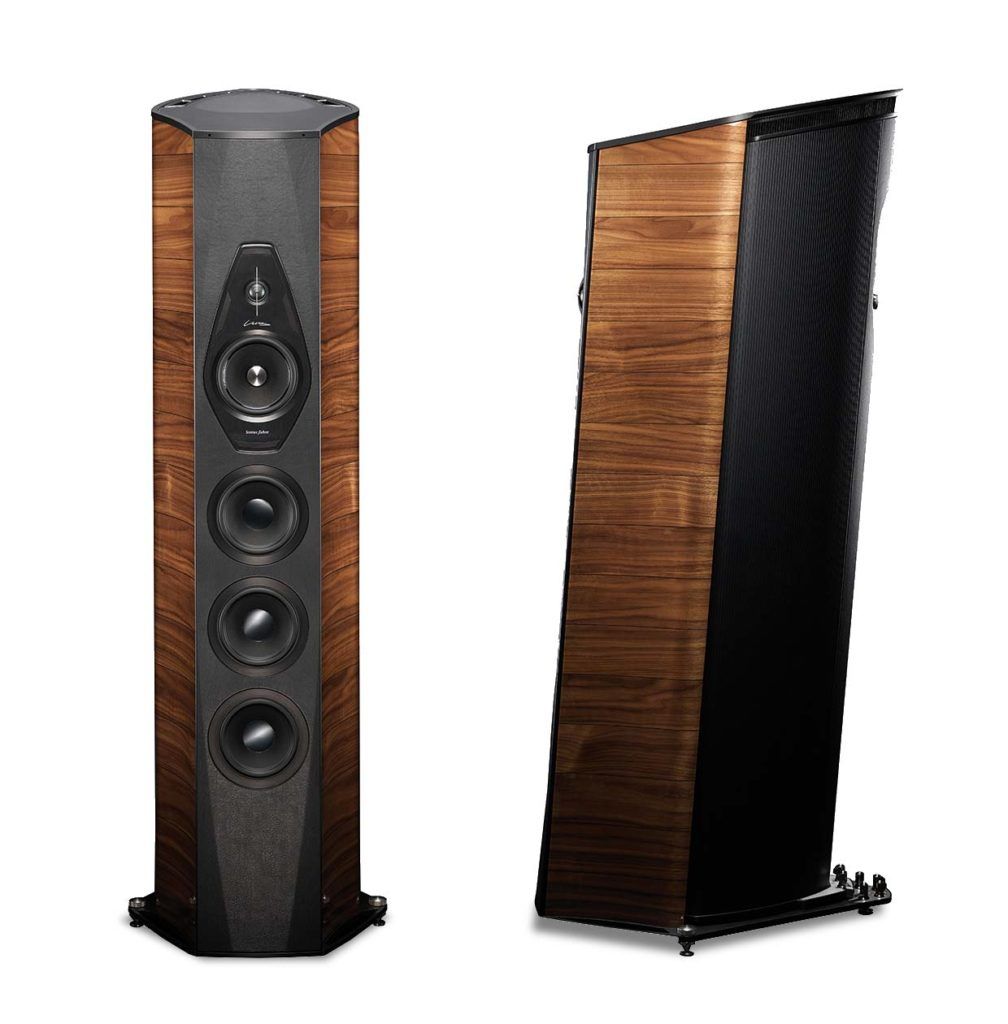

Sonus Faber Lilium
System 3.5 way para-aperiodic vented box
Loudspeakers Tw: H28 XTR-04 DAD Arrow Point, Ø 28 mm Md: M18 XTR-04 Neodymium Magnet System, Ø 180 mm W: 3 x W18XTR-16, Ø 180 mm Sw: SW26 XT-08, Ø 260 mm
Crossover 80Hz - 250Hz – 2,500Hz
Frequency Response 20 Hz – 35.000 Hz, Stealth reflex included
Sensitivity 92 db SPL (2.83V/1 m)
Nominal Impedance 4 ohm
Suggested Amplifier Power Output 100 – 800 W, without clipping
Dimensions (HxWxD) 1600 x 491 x 705 mm 63 x 19,3 x 27,7 in
Weight 103 Kg ea - net weight 227 Ib ea - net weight 156 Kg ea – shipping weight 344 lb ea – shipping weight
Available in the below finishes at an additional cost, contact us for details, Walnut: Black Satin Champagne Wood Finish: Graphite matte/gloss Red matte Walnut matte Wenge matte Lacquered finish: Any colour! Simply provide us with the RAL reference number.
