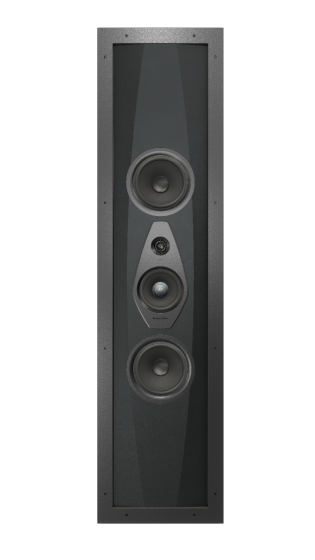

Sonus Faber Arena A20

Sonus Faber Arena A20

In-wall Passive Loudspeaker

Condition: New

Warranty: 5 Years

Colour: Black

HTFH Cat. No.: EB1968

3.5 way In-wall loudspeaker system
19mm Dome Tweeter & 6.25" mid woofer & 8” low woofers
60 Hz - 24.710 Hz Frequency response
160 Hz / 220 Hz / 3100 Hz Crossover Frequencies
The Voice of Sonus Faber

£9,000.00 Each

Be the first to review this product

Enquire Now

To Purchase Or Demo Please Call 0121 448 8484

Overview

Tech Spec

Overview

Arena 20, the 3.5 way speaker boasts the renowned Voice of Sonus faber, adding a solid solution to Arena 30.

Technical Specification

Sonus Faber Arena A20

Speaker type
3.5 way

Low frequency transducer
2 x 8 inch woofer

Mid/High frequency transducer
1 x 6,25 inch woofer
19 mm Dome Tweeter

Maximum recommended power
400 W

Low-frequency cut-off (-6dB)
55 Hz - 31.500 Hz

Frequency Response (-3dB on-axis)
60 Hz - 24.710 Hz

Max SPL 1 Meter
117 dB

Sensitivity 2.83 Vrms@1m
94,00 dB

Nominal Impedance
4 Ω

Minimal impedance
3,16 Ω

Crossover frequencies
160 Hz / 220 Hz / 3100 Hz

Enclosure type
Closed Box

Mounting Depth
144 mm - 5,7 in
Weight
47,2 kg - 104,1 lb
Depth
150 mm - 5,9 in
Width
321 mm - 12,6 in
Height
1.577 mm - 62,1 in

Warranty

5 Years

Manufacturer

Sonus Faber

Model Number

Arena A20

Colour

Black

Weight (Each)

47kg

Length (cm)

Width (cm)

32.1

Height (cm)

157.7

Voltage

n/a

Power Handling

400W
