SME Series V


Condition: New
Warranty: 2 Years
Colour: Black
HTFH Cat. No.: EB505
  • SME - probably the best tonearms in the world
  • One-piece die-cast magnesium tonearm
  • Dual-lock base
  • Acoustically inert tonearm damps minute residual vibrations
  • Fully Adjustable
£7,999.00 Each

Be the first to review this product

Order Before 2.30pm to Get Next Working Day with FREE shipping (UK only)

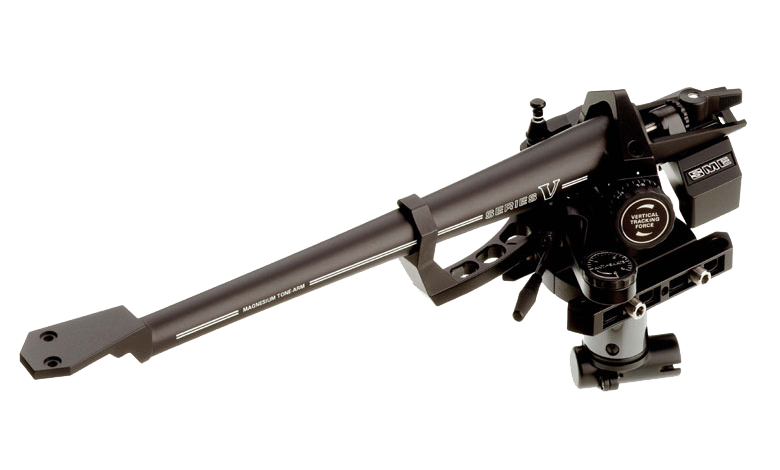

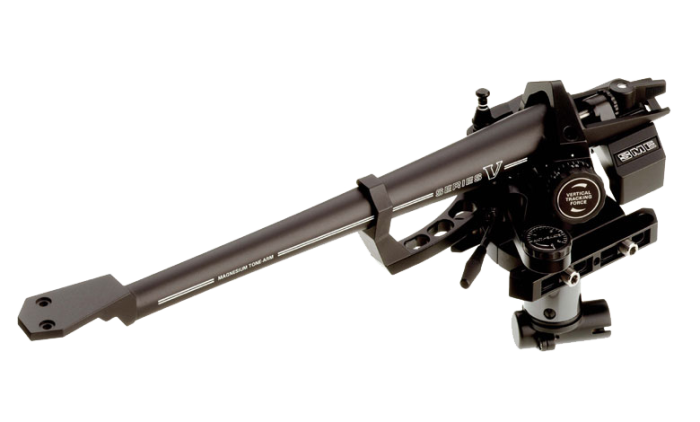

SME Series V
SME Series V


SME engineers, recognising the potential of the latest complementary equipment, accepted the challenge to design and build a pick-up arm which unlike others in existence would make no detectable sound contribution of its own.

The work took almost four years and the measure of its success is the acceptance of the Series V precision pick-up arm by technical experts and users as one of the world’s truly great audio products. Series V sound has an almost startling dynamic range and neutrality enabling high levels to be enjoyed. It escapes the ‘LP’ sound and demonstrates that structural resonances in pick-up arms are responsible for much that makes vinyl records readily discernible from master tapes.



Unique one-piece pressure die-cast tone-arm utilising the advantages of magnesium, replace conventional fabricated construction. Internal constrained layer damps minute residual vibration leaving the tone-arm acoustically inert. Fine machined cartridge platform, enamel free to avoid interface resonance. A Stainless steel cross shaft, ground and thread ground. Carried in massive yoke on 10mm ball races. Axis at record mean level to minimise warp-wow. Dynamic balance graduated vertical tracking force (VTF) control applies 0-3g x 0.125g through resonance controlled spring. Unique assembly gives high rigidity and allows bearings to be critically adjusted before tone-arm is fitted. Stainless steel vertical shaft, ground and thread ground, with integral 16mm diameter flange to couple shaft and yoke. 23mm diameter steel pillar, heat treated, ground and honed, carries two 17mm ball races, widely spaced to resist tilt.


Anti-skate control operates through tension spring and filament. Dial corresponds with VTF and has positive OFF position. Lowering/raising control gives smooth positive action. Height of lift can be adjusted. Subsonic lateral mode fluid damper can be instantly adjusted or cancelled. Dual-lock base provides movement control with high rigidity. Swivelling damped output socket minimises vibration transmission in sub-chassis use.


Tungsten-alloy balance weight carried on damped two-point suspension. Extra-low inertia design assists warp riding. Underslung weight housing corrects centre of gravity and provides non-reflective tone-arm termination. Adjustment leadscrew journalled in twin ball races with lever clamping. Fine adjustment of arm height (VTA). Reference lines on tone-arm facilitate VTA setting. Fine adjustment of horizontal tracking angle (HTA).

Technical Specification

SME Series V

Effective mass     10.0/11.0g
Cartridge balance range     4.2 – 18.0g
Vertical tracking force     0 – 3.0g(30mN)
Maximum tracking error     0.012(degrees per mm)
Null points     Inner 66.04mm
Outer 120.90mm
Audio lead     Length 1.2m
Capacitance 140.0 pF per channel
Resistance 0.145 ohms per conductor
Internal wiring     Capacitance 15.0 pF per channel
Resistance 0.5353 ohms per conductor
Output plug and socket     DIN 5-pole 240°

2 Years
Model Number
Series V
Total weight
