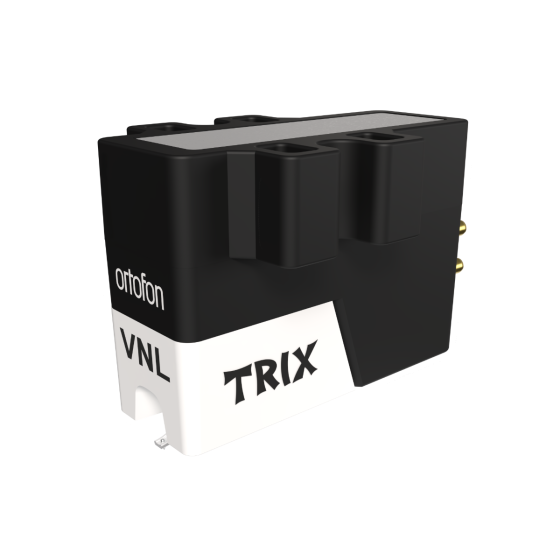

Ortofon VNL TRIX

High Output Moving Magnet DJ Cartridge & Stylus

Condition: New
Warranty: 2 Years
Colour: White
HTFH Cat. No.: EB2313
  • VNL - "In ViNyL we trust"
  • Spherical stylus
  • For DJs who demand both power and precision
  • Fluorescent white stylus makes cueing even faster
  • Premium tracking keeps it locked for pro use including heavy scratching and back-cueing
£89.95 Each

Be the first to review this product

Order Before 3.30pm to Get Next Working Day Delivery

Ortofon
Ortofon VNL TRIX
Ortofon VNL TRIX Ortofon VNL TRIX Ortofon VNL TRIX

Overview

The Ortofon VNL TRIX cartridge is designed for DJs who demand both power and precision.

With a spherical stylus mounted on a rigid aluminum cantilever and Ortofon’s exclusive rubber suspension, VNL TRIX is built to take a beating. The fluorescent white stylus makes cueing even faster, and the premium tracking keeps it locked for pro use including heavy scratching and back-cueing.

Technical Specification

Ortofon VNL TRIX

Output voltage at 1 kHz, 5cm/sec: 10 mV
Tracking ability at 315Hz: 100 μm
Cantilever material: Aluminium
Stylus type: Spherical
Stylus tip radius: R 18 μm
Stylus suspension: Ortofon exclusive
Coil system: Quad coils
Coil wire material: OFC
Channel separation at 1 kHz: 22 dB
Frequency response 20 Hz - 20 kHz: +/-3 dB
Dynamic lateral compliance: 12 μm/mN
Recommended tracking force: 4.0 grams
Cartridge weight: 7 grams
Cartridge colour: Black
Stylus colour: White
Replacement stylus: Stylus VNL TRIX

Warranty
2 Years
Manufacturer
Ortofon
Model Number
VNL TRIX
Colour
White
Weight (Each)
7g
Voltage
n/a
