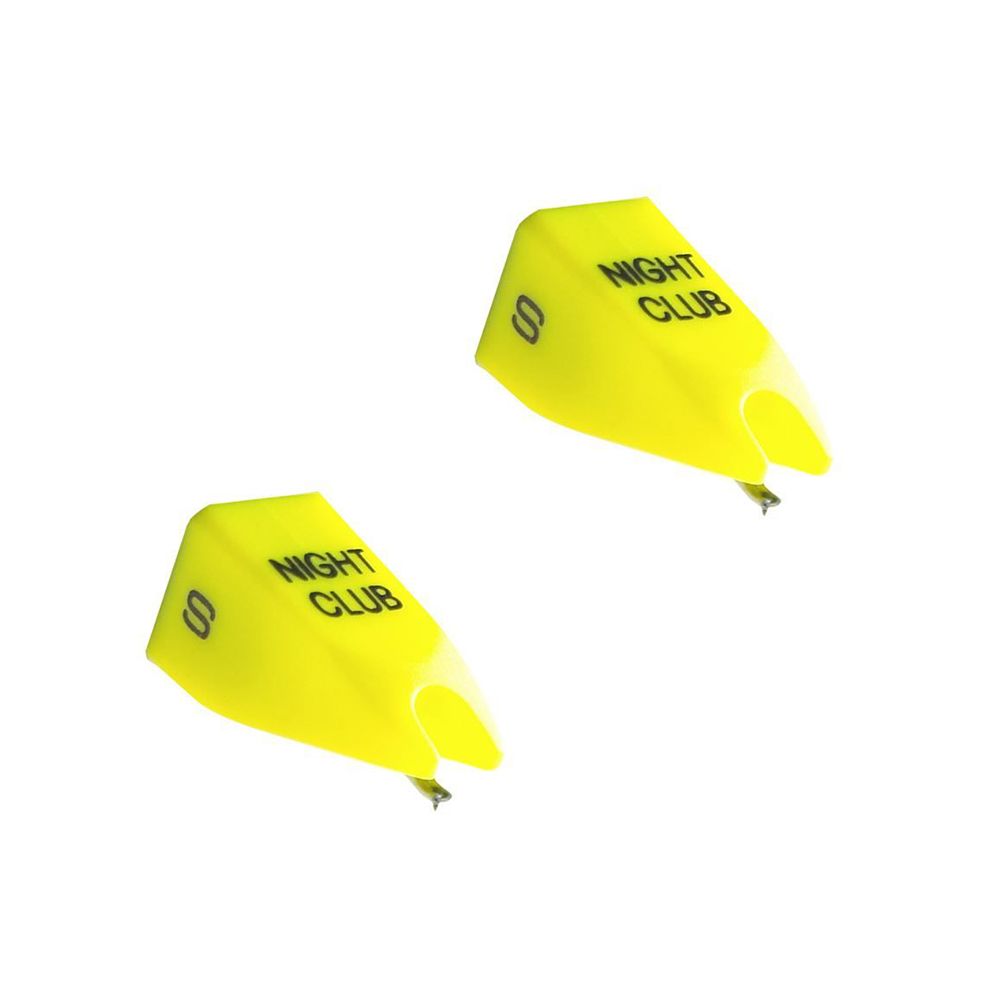

The Nightclub S stylus is amongst the top performers in its category, Scratch and Mix.
A spherical diamond and a customised design provide the basis for the cartridge's undeniable supremacy.
The stylus remains in the groove during the scratching and back-cueing, making it unfailingly reliable - even when giving a night-long performance.
Technical Specification
Ortofon Nightclub S
Output voltage at 1000Hz, 5cm/sec. - 6 mV Channel balance at 1kHz - 1,5 dB Channel separation at 1kHz - 23 dB Channel separation at 15 kHz - 15 dB Frequency response - 20-18.000 Hz +3 / - 2 dB Tracking ability at 315 Hz at recommended tracking force - 80 μm Compliance, dynamic lateral - 7 μm/m N Stylus type - Spherical Stylus tip radius - R 18 μm Tracking force range - 2.0-5.0 g (20-50 mN) Tracking force recommended - 3.0 g (30 mN) Tracking angle - 20° Internal impedance, DC resistance - 750 Ohm Internal inductance - 450 mH Recommended load resistance - 47 kOhm Recommended load capacitance - 200-600 pF Concorde cartridge weight - 18.5 g
