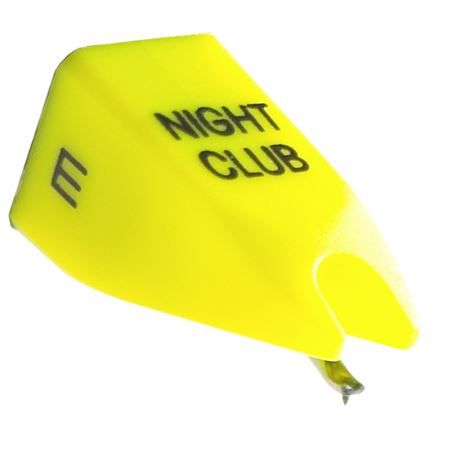

Nightclub E is equipped with Special Elliptical diamond. Perfect for usage in clubs. Superb sound quality.
Club DJs and studio workers believe the Nightclub E to be an absolute high-end cartridge. It is indeed a no-nonsence performer with fascinating musical resources.
It's output is superb with a frequency response rating high enough to compare the Nightclub E to any audiophile cartridge.
The special elliptical stylus guarantees sound with insignificant scratching.
Technical Specification
Ortofon Nightclub E
Output voltage at 1000Hz, 5cm/sec. - 8 mV Channel balance at 1kHz - 1,5 dB Channel separation at 1kHz - 23 dB Channel separation at 15 kHz - 15 dB Frequency response - 20-20.000 Hz +/- 1.5 dB Tracking ability at 315 Hz at recommended tracking force - 65 μm Compliance, dynamic lateral - 20 μm/m N Stylus type - Elliptical Stylus tip radius - r/R 8/18 μm Tracking force range - 2.0-5.0 g (20-50 mN) Tracking force recommended - 3.0 g (30 mN) Tracking angle - 20° Internal impedance, DC resistance - 1000 Ohm Internal inductance - 580 mH Recommended load resistance - 47 kOhm Recommended load capacitance - 200-600 pF Concorde cartridge weight - 18.5 g
