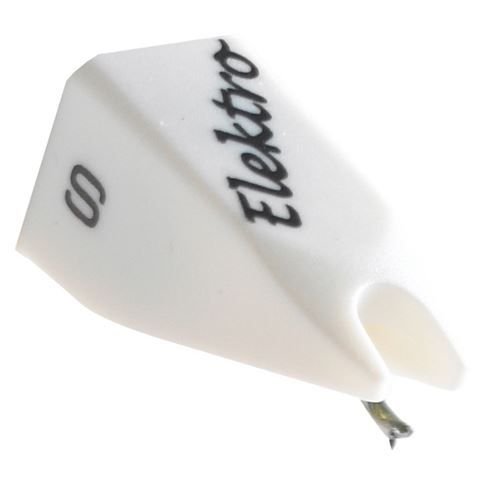

Ortofon Elektro

Replacement Stylus

Condition: New
Warranty: 2 Years
Colour: White
HTFH Cat. No.: EB1336
  • A techno cartridge made by a team of highly qualified technicians and experienced and capable DJs
  • Reinforced rubber suspension
  • The perfect hybrid needle for the artist who both mixes and scratches
  • Enhanced tracking ability and excellent sound quality
  • We also sell the full Ortofon DJ cartridge range at Hard To Find Hi-Fi
£50.00 Each

Be the first to review this product

Order Before 3.30pm to Get Next Working Day Delivery

Ortofon
Ortofon Elektro
Ortofon Elektro

Overview

Every professional ought to try the Elektro, a techno cartridge made by a team of highly qualified technicians and experienced and capable DJs. Despite its sleek white styling, the Elektro isn't just another pretty face. Also featuring a reinforced rubber suspension, the Elektro is the perfect hybrid needle for the artist who both mixes and scratches.

Enhanced tracking ability and excellent sound quality combine to form a unique balance of form and functionality.  With bold, round sound, the Elektro brings your music to life, whether you're in the club or the studio

Unaffected by extreme sound pressure and repeated vibrations, it has a very high output. The musical performance is always first-rate and the tracking ability of the spherical diamond stylus is quite good.

Technical Specification

Ortofon Elektro

Output voltage at 1000Hz, 5cm/sec.  -  7.5 mV
Channel balance at 1kHz  -  1,5 dB
Channel separation at 1kHz   - 25 dB
Channel separation at 15 kHz  -  15 dB
Frequency response  -  20 – 18.000 Hz +3/-2 dB
Tracking ability at 315 Hz at recommended tracking force -  80 μm
Compliance, dynamic lateral  -  6 μm/m N
Stylus type  -  Spherical
Stylus tip radius  -  R 18 μm
Tracking force range  -  3.0-5.0 g (30-50 mN)
Tracking force recommended  -  4.0 g (40 mN)
Tracking angle  -  20°
Internal impedance, DC resistance  -  750 Ohm
Internal inductance -   450 mH
Recommended load resistance  -  47 kOhm
Recommended load capacitance  -  200-600 pF
Concorde cartridge weight  - 18.5 g

Warranty
2 Years
Manufacturer
Ortofon
Model Number
Elektro
Colour
White
Weight (Each)
2g
Voltage
n/a
