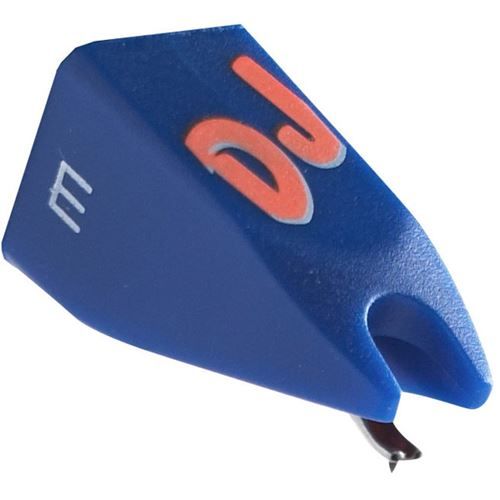

Ortofon DJ E

Replacement Stylus

Condition: New
Warranty: 2 Years
Colour: Blue
HTFH Cat. No.: EB1341
  • Special Elliptical stylus
  • A special developed and extremely balanced cantilever
  • Nearly unbreakable and provides the DJs with the most needed stringency
  • Very low record wear
  • We also sell the full Ortofon DJ cartridge range at Hard To Find Hi-Fi
£53.00 Each

Be the first to review this product

Order Before 3.30pm to Get Next Working Day Delivery

Ortofon
Ortofon DJ E
Ortofon DJ E

Overview

Basic model for scratch and back-cueing. Outstanding rigidity by extra-strengthened cantilever

Features Special Elliptical stylus and a special developed and extremely balanced cantilever.

Not only does the cartridge have a most sufficient tracking ability, it is also nearly unbreakable and provides the DJs with the most needed stringency. Furthermore, it equals very low record wear, an advantage for busy DJ.

The DJ series has been known to many as the "jack of all trades," with improved tracking, alongside of accurate sound reproduction. Featuring a low wear stylus design, the DJ provides excellent groove handling, even with less weight applied.

Technical Specification

Ortofon DJ E

Output voltage at 1000Hz, 5cm/sec. -   6 mV
Channel balance at 1kHz  -  2 dB
Channel separation at 1kHz  -  23 dB
Channel separation at 15 kHz  -  15 dB
Frequency response -   20-20.000 Hz +/-2 dB
Tracking ability at 315 Hz at recommended tracking force  -  80 μm
Compliance, dynamic lateral  -  9 μm/m N
Stylus type  -  Special Elliptical
Stylus tip radius  -  r/R 13/25 μm
Tracking force range  -  2.0-4.0 g (20-40 mN)
Tracking force recommended  -  3.0 g (30 mN)
Tracking angle -   20°
Internal impedance, DC resistance  -  750 Ohm
Internal inductance  -  450 mH
Recommended load resistance   - 47 kOhm
Recommended load capacitance -  200-600 pF
Concorde cartridge weight  -  18.5 g

Warranty
2 Years
Manufacturer
Ortofon
Model Number
DJ E
Colour
Blue
Weight (Each)
2g
Voltage
n/a
