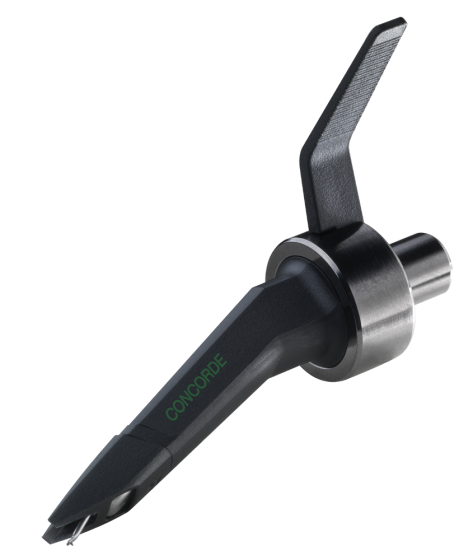

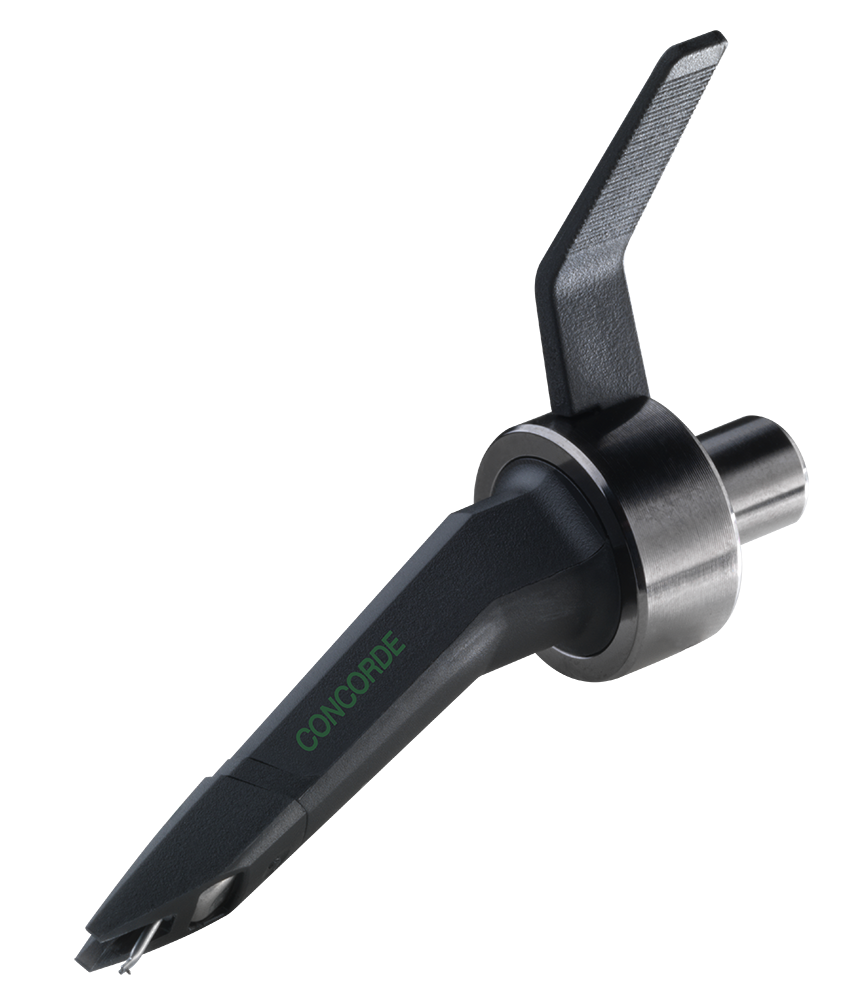

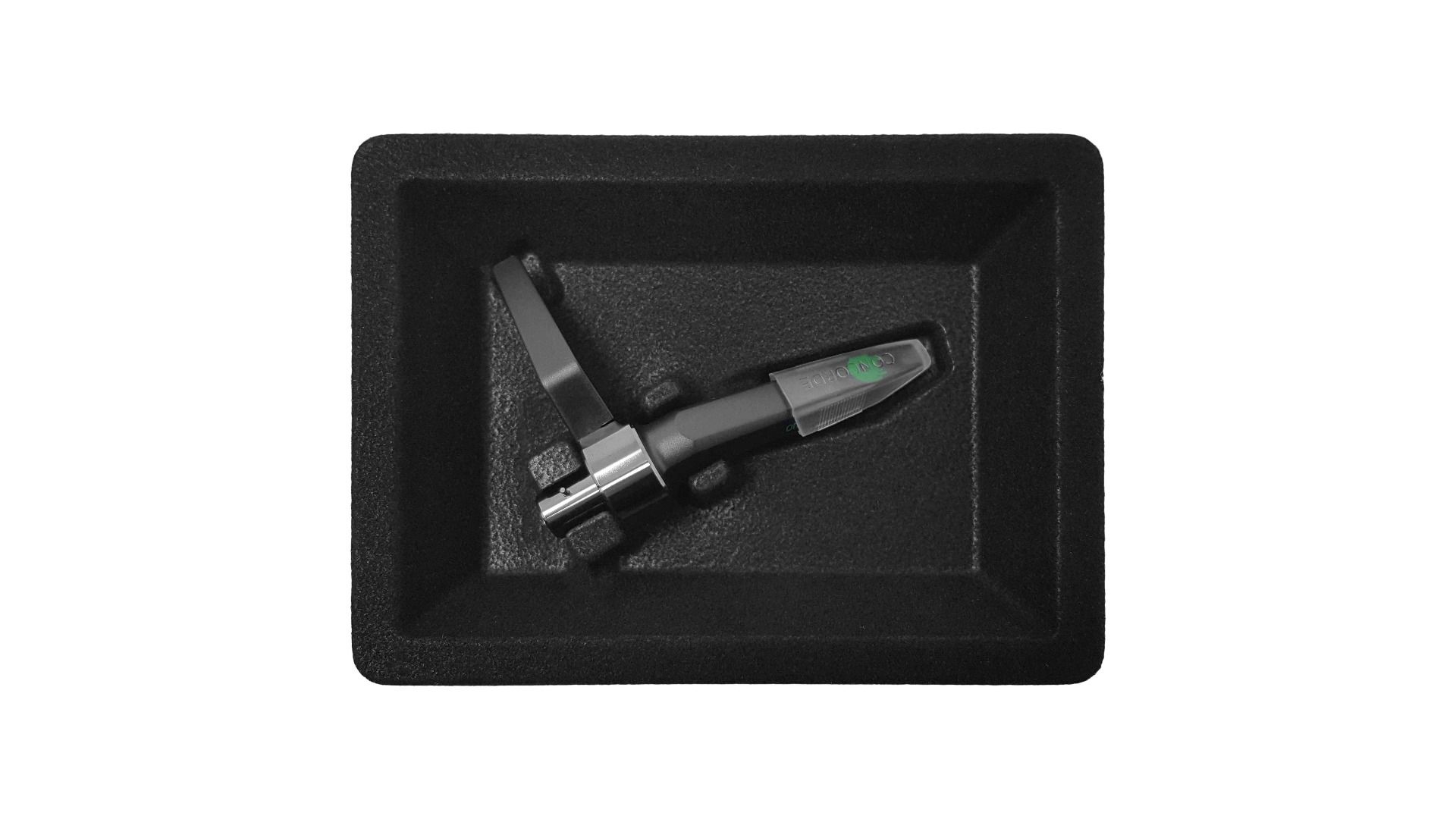

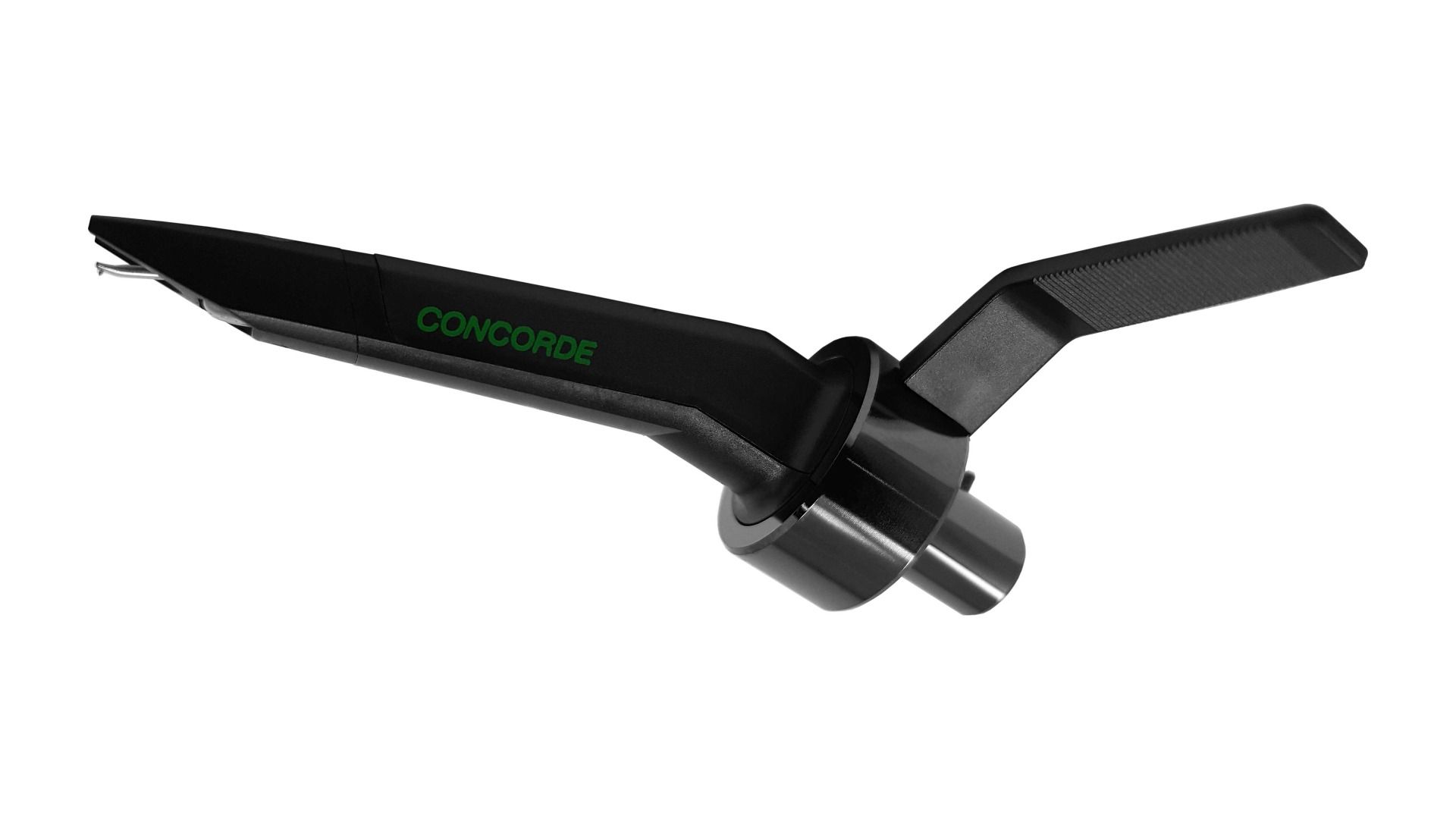

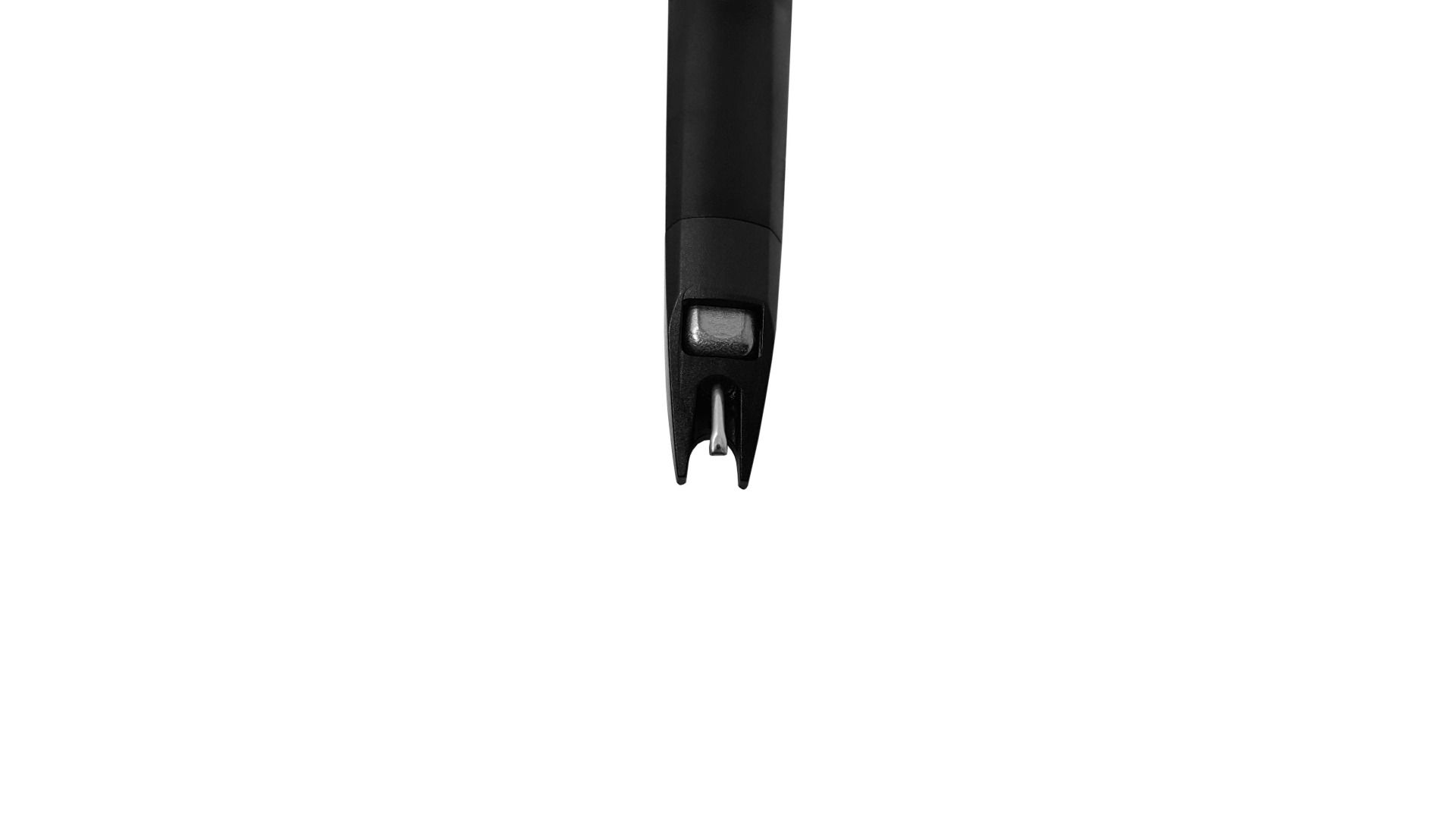

Ortofon Concorde MkII MIX

Moving Magnet DJ Cartridge & Stylus

Condition: New
Warranty: 1 Year
Colour: Black
HTFH Cat. No.: EB648
  • The MIX is a general-purpose model for scratch and back-cueing
  • Excellent price-to-performance ratio
  • A good quality spherical stylus with a solid cantilever
  • High sound quality and a good tracking ability
  • Transparent sound across the spectrum and excellent handling ability
£69.95 Each

Be the first to review this product

Order Before 2.30pm to Get Next Working Day with FREE shipping (UK only)

Ortofon
Ortofon Concorde MkII MIX
Ortofon Concorde MkII MIX Ortofon Concorde MkII MIX Ortofon Concorde MkII MIX

Overview

The MIX is a general-purpose model for scratch and back-cueing

Provides great performance and durability. It has a good quality spherical stylus, a solid cantilever, and serves general purposes well.
It offers both reasonable output, high sound quality and a good tracking ability for virtually any style of music.
With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges.

Excellent price-to-performance ratio.

Technical Specification

Ortofon Concorde MkII MIX

Stylus Type: Spherical
Tracking Force: 3.0 g
Output Voltage: 6 mV
Frequency Range: 20-20.000 Hz

Output voltage at 1000Hz, 5cm/sec. - 6 mV
Channel balance at 1kHz - 1,5 dB
Channel separation at 1kHz - 20 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-20.000 Hz
Tracking ability at 315 Hz at recommmended tracking force - 100 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical R 18 μm
Tracking force range - 2 - 4 g
Tracking force recommended - 3 g
Cartridge weight - 18,5 g

Warranty
1 Year
Manufacturer
Ortofon
Model Number
Concorde MkII MIX
Colour
Black
Total weight
19g
Voltage
n/a
