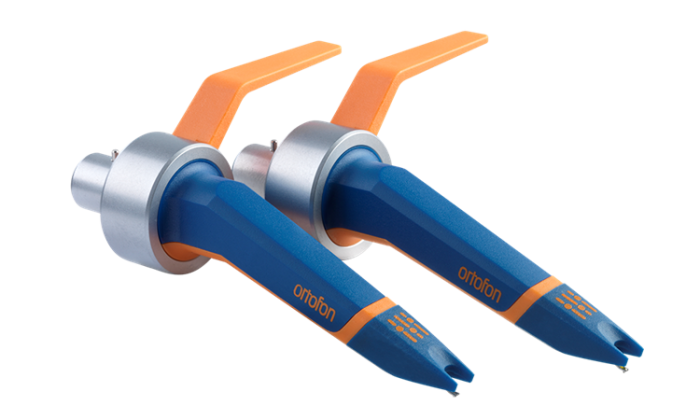

Ortofon Concorde MkII DJ

Replacement Stylus

Condition: New
Warranty: 1 Year
Colour: Blue
HTFH Cat. No.: EB1329
  • The Concorde DJ is considered the jack-of-all-trades
  • Accurate sound reproduction and excellent groove handling
  • Spherical stylus and an extremely balanced cantilever providing outstanding rigidity
  • Excellent tracking ability
  • The MKII series has new body design and will not fit previous models
£29.00 Each

Be the first to review this product

Order Before 2.30pm to Get Next Working Day with FREE shipping (UK only)

Ortofon
Ortofon Concorde MkII DJ
Ortofon Concorde MkII DJ Ortofon Concorde MkII DJ

Overview

Excellent groove handling

The Concorde DJ is considered the jack-of-all-trades, boasting accurate sound reproduction and excellent groove handling.

The DJ is great for any style of music.
It has a spherical stylus and an extremely balanced cantilever that provides outstanding rigidity.
Not only does the cartridge have a most sufficient tracking ability, it also provides the DJs with the most needed stringency and very low record wear.

All in all:  improved tracking, alongside of accurate sound reproduction and an excellent groove handling.

Technical Specification

Ortofon Concorde MkII DJ

Output voltage at 1000Hz, 5cm/sec. - 6 mV
Channel balance at 1kHz - 1 dB
Channel separation at 1kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Tracking ability at 315 Hz at recommended tracking force - 100 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical R 18 μm
Tracking force range - 3 - 5 g
Tracking force recommended - 4 g
Internal impedance, DC resistance -  700 Ohm
Internal inductance -  450 mH
Recommended load resistance -  47 kOhm
Recommended load capacitance -  200-600 pF
Cartridge weight - 18,5 g

Warranty
1 Year
Manufacturer
Ortofon
Model Number
Concorde MkII DJ
Colour
Blue
Weight (Each)
2g
Voltage
n/a
