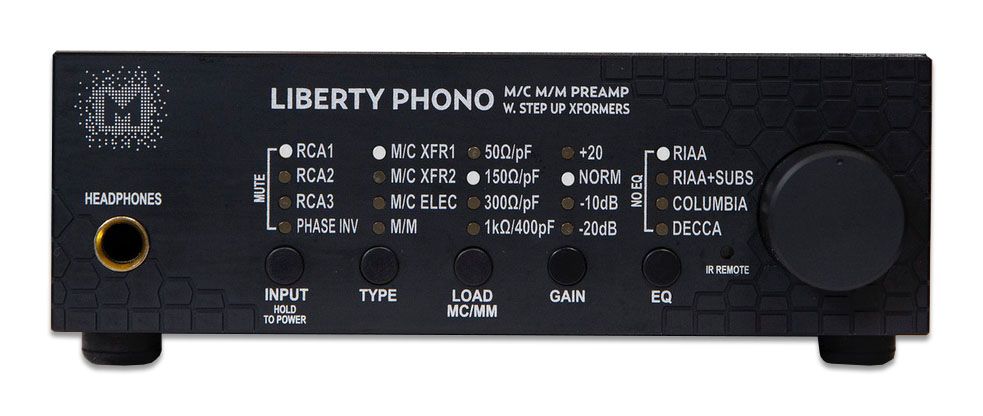

Mytek Liberty Phono

Phono Preamplifier

Condition: New
Warranty: 2 Years
Colour: Black
HTFH Cat. No.: EB1235
  • 3xRCA for 3 separate arms/turntables
  • Low distortion nickel core audio transformers
  • RIAA, RIAA with Subsonic filter, Columbia, Decca curves
  • MC & MM Inputs, RCA & XLR Outputs
  • Built in reference headphone amplifier
£1,495.00 Each

Be the first to review this product

Order Before 2.30pm to Get Within 7 Days with FREE shipping (UK only)

Mytek
Mytek Liberty Phono
Mytek Liberty Phono

Overview

Liberty Phono Preamplifier has been designed though explorations of the most accurate microphone studio preamp circuits. Original circuit was created for the “vinyl option” for the Manhattan DAC and has received very high praises. The sound is dynamic, transparent, detailed and honest, the ideal balance between precision and musicality found in all Mytek products. Low distortion nickel core audio transformers for M/C provide 20dB noise reduction as compared to solid state phono stages and adds the desirable hint of transformer sound. Together with a built in reference headphone amplifier Liberty Phono is an idespensable tool for vinyl fans and professionals requiring studio reference vinyl playback.

Technical Specification

Mytek Liberty Phono

INPUTS:
3xRCA for 3 separate arms/turntables

PREAMPLIFIER OUTPUTS
RCA and XLR simultaneous

M/C (Moving Coil) INPUT:
Electronic 65db (At Norm) or Step Up Transformer 65db (At Norm) M/C IMPEDANCE: 50,150,300,1000 Ohm

M/C IMPEDANCE:
50,150,300,1000 Ohm
M/M (Moving Magnet) INPUT:
Electronic 45db (At Norm)

M/C IMPEDANCE LOAD:
50,150,300,400pF at 50kOhm

EQ CURVES:
RIAA, RIAA with Subsonic filter, Columbia, Decca. No EQ allows for digital EQ after digitizing the recording.

HEADPHONE AMPLIFIER:
Reference High Current, High transient Headphone Amp, 300mA, 3 Watts, designed for hard to drive headphones, 0.1 Ohm impedance

VOLUME CONTROL:
Premium 27mm analog ALPS attenuator

DIMENSIONS:
WxDxH=5.5x8.8x1.74”=140x225x44mm

WEIGHT:
4lbs, 2kg

WARRANTY:
2 years

Warranty
2 Years
Manufacturer
Mytek
Model Number
Liberty Phono
Colour
Black
Total weight
2kg
Length
225mm
Width
140mm
Height
44mm
Voltage
n/a
