Liberty DAC is Mytek's most affordable, yet exeptional DAC. PCM/MQA/DSD USB2 DAC designed for high quality music playback and monitoring of all digital audio formats including all high resolution formats. The DAC features several digital inputs, digital volume control and unbalanced as well as balanced audio outputs and a high performance headphone amplifier. Designed as a little brother of Brooklyn DAC, Liberty DAC provides robust performance in small portable 1/3 rack package.
Technical Specification

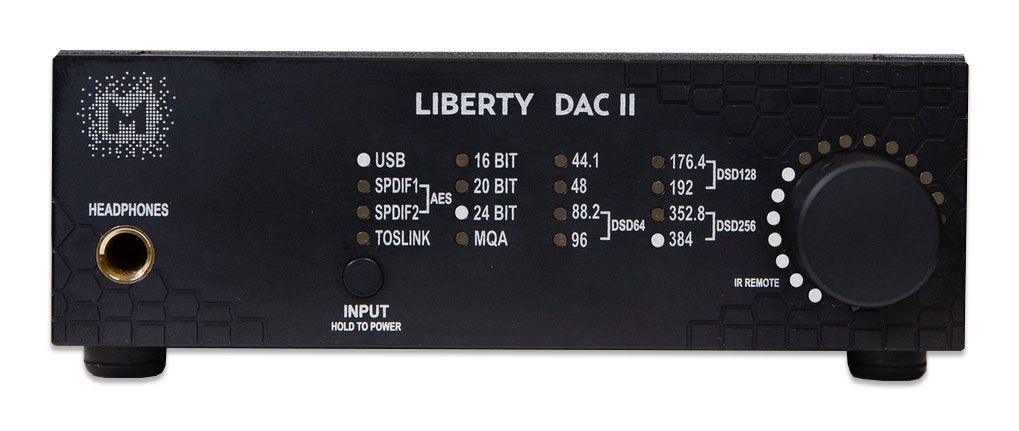

Mytek Liberty DAC II
CONVERSION: Up to 384k, 32bit PCM, native DSD, up to DSD256, DXD, ES9038, 127dB DR
MQA HI-RES DECODER Built in certified hardware MQATM decoder

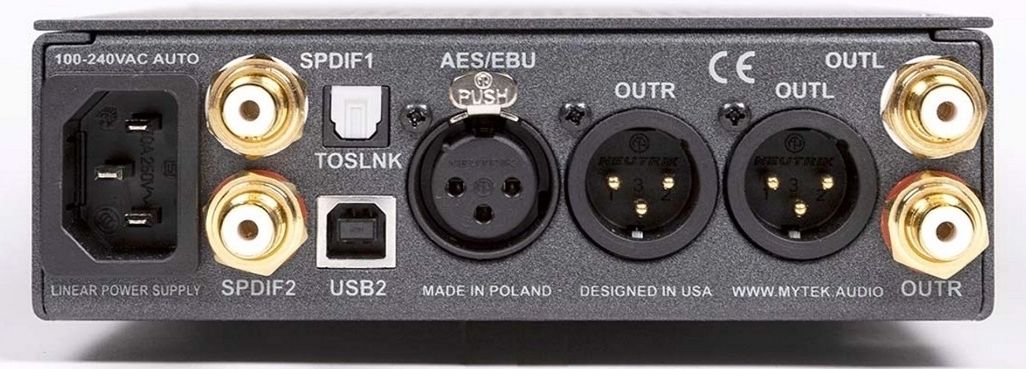

DIGITAL INPUTS: USB2 Class2 (OSX, Linux driverless, all audio formats), AES/EBU (PCM up to 192k, up to DSD64 DOP), 2x S/PDIF (PCM up to 192k, up to DSD64 DOP), Toslink/ADAT 2x S/PDIF (PCM up to 192k, up to DSD64 DOP)
ANALOG OUTPUTS: 1 pair of unbalanced RCA, 1 pair of balanced XLR
HEADPHONE AMPLIFIER: Reference High Current, High transient Headphone Amp, 300mA, 3 Watts, designed for hard to drive headphones, 0.1 Ohm impedance
CLOCK GENERATOR: Low noise with 10ps of jitter
FIRMWARE: Upgradable via USB
POWER SUPPLY Built in oversized 60W linear toroid with automatic voltage switching
