Lynx Hilo 2 with LT-TB3

DAC & ADC with Thunderbolt 3 Card

Condition: New
Warranty: 1 Year
Colour: Black
HTFH Cat. No.: EB2147
  • Pristine, independently coupled 2 in, 6 out, AD/DA conversion with digital expansion up to 16x16
  • Unique touchscreen interface. Forever upgradable through our free firmware updates
  • Real-time meters and analysis tools, hyper-flexible routing and monitor control
  • Upgraded conversion technology provides even more transparent performance
  • Upgrade path to higher sample rates above 192kHz and DSD on input and output
£4,355.00 Each

Be the first to review this product

Order Before 2.30pm to Get Between 3-5 Working Days Delivery

Lynx
Lynx Hilo 2 with LT-TB3
Lynx Hilo 2 with LT-TB3 Lynx Hilo 2 with LT-TB3 Lynx Hilo 2 with LT-TB3

Overview

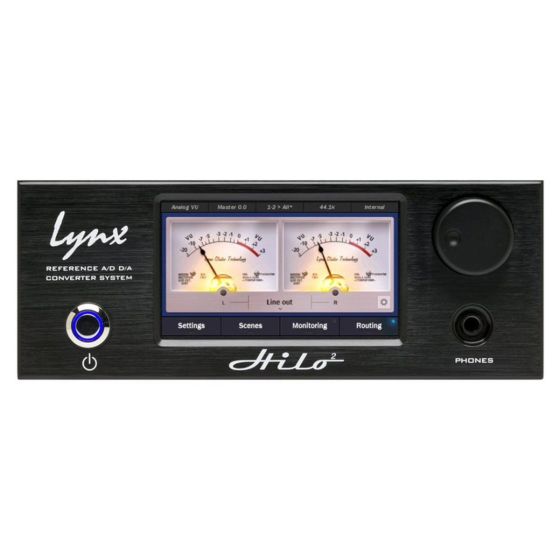

Hilo 2 is for professionals who demand the purest audio quality. Engineered to be a true all-in-one device, Hilo offers class-leading AD/DA conversion, built-in metering and analysis, multiple ins and outs, hyper-flexible routing and monitoring control — all easily saved and recalled via touchscreen, whatever work you do.

Here are some examples:

Mastering with an analog chain
Mixing with multiple speakers
Location sound recording
Voice recording and overdubbing
Audiophile listening
Archiving

The Software:

Metering
Hilo displays real-time, accurate metering and analysis. Dual horizontal, VU analog, all I/O and spectrum analysis cover all tasks.

Routing
Route anything, anywhere. Set independent input levels, channel modes and mute states for each output. Then set unique level offsets for each output. Truly flexible.

Monitoring
One-to-one monitoring. Independently level-match your 4x4 selected sources, then globally control with the master-volume.

Scenes
Device-wide settings recall. Save custom scenes for different tasks and switch through them in a click.

Settings
No need for extra computer software, change any setting directly on Hilo, such as sample rate, clock source or trims.

Connected apps:

With Hilo 2, you get free connected applications. Hilo Remote for iPad and desktop offer you full control with extended features

LSlot connectivity options:

We don’t restrict how you choose to connect your devices. With LSlot, you can change your connection whenever you need. We have you covered now, and in the future when new standards are made available.

As of today we have USB, Thunderbolt 3 and Dante.

Technical Specification

Lynx Hilo 2 with LT-TB3

Pristine, independently coupled 2 in, 6 out, AD/DA conversion with digital expansion up to 16x16

Unique touchscreen interface. Forever upgradable through our free firmware updates

Future-proof LSlot design with swappable USB, Thunderbolt and DANTE cards

Real-time meters and analysis tools, hyper-flexible routing and monitor control

Powered by mains or 9-18v DC battery packs for location recording

Lynx’s class-leading transparent audio quality

Hilo 2: Upgraded conversion technology provides even more transparent performance

Hilo 2: SynchroLock 2 sample clock provides faster locking and better tracking of external clocks with 7ppm absolute accuracy

Hilo 2: In-plane switching LCD with capacitive touch provides significant increase in brightness, uniform off-axis viewing, and improved touch responsiveness

Hilo 2: Upgrade path to higher sample rates above 192kHz and DSD on input and output

Hilo 2: Selectable linear and minimum phase filters on line I/O

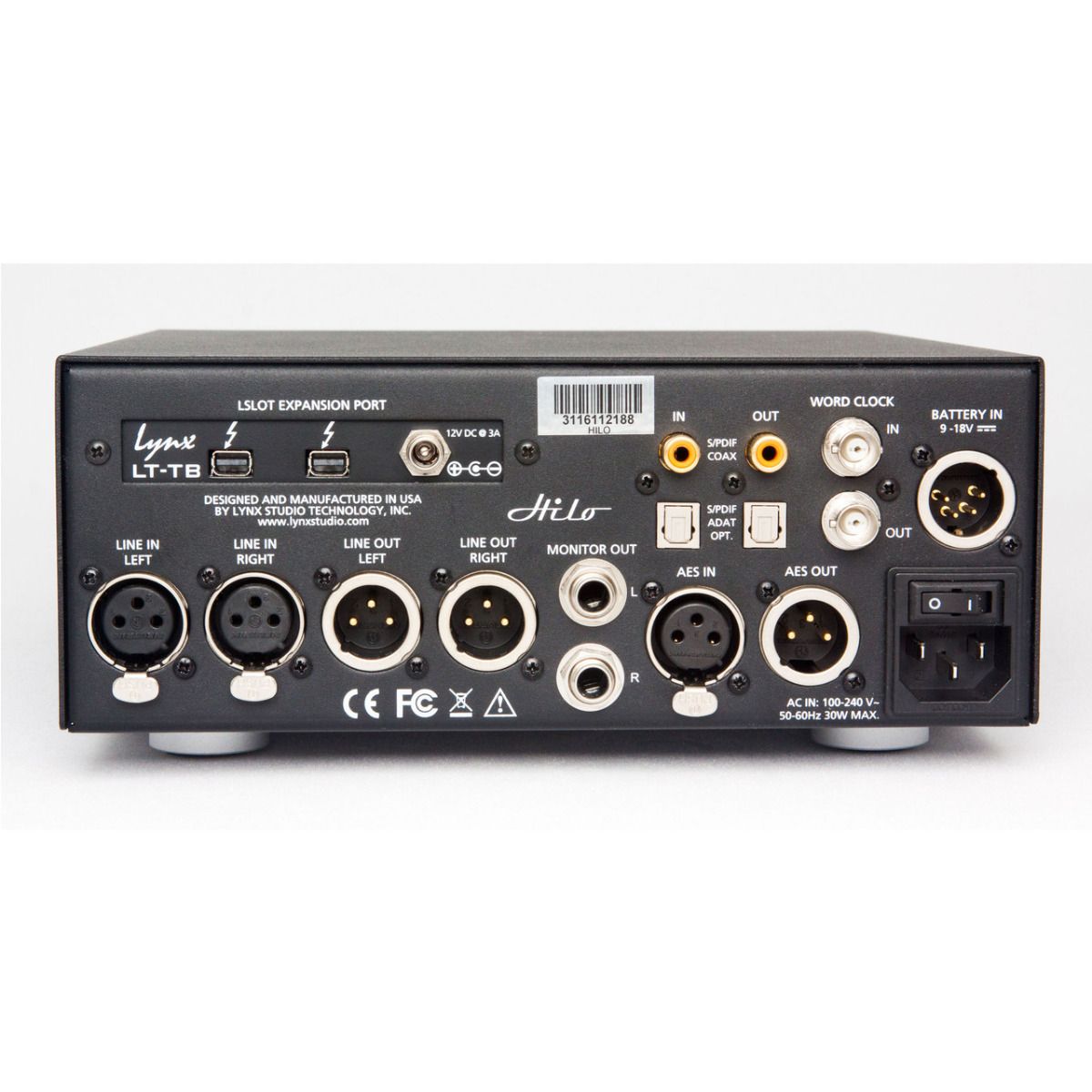

Line in L/R
THD+N: -117 dB @1kHz, -1dBFS, 20kHz filter, +22dBu trim
Dynamic range: 122 dB, A-weighted, -60dBFS signal method
Frequency response: ±0.04 dB, 20 – 20kHz
Crosstalk: -143 dB maximum @ 1kHz, -1dBFS signal
Full-scale trim settings: +0dBV, +2dBV, +4dBV, +6dBV, +18dBu, +20dBu, +22dBu, +24dBu
Input Impedance: 200k ohms balanced, 100k ohms unbalanced
Female XLR connectors

Line out L/R
THD+N: -120 dB @1kHz, -1dBFS, 20kHz filter, +22dBu trim
Dynamic range: 127 dB, A-weighted, -60dBFS signal method
Frequency response: ± 0.03 dB, 20 – 20kHz
Crosstalk: -143 dB maximum @ 1kHz, -1dBFS signal
Full-scale trim settings: +0dBV, +2dBV, +4dBV, +6dBV, +18dBu, +20dBu, +22dBu, +24dBu
Output Impedance: 100 ohms balanced; 50 ohms unbalanced
Male XLR connectors

Monitor out L/R
THD+N: -107dB @1kHz, -1dBFS, 20kHz filter
Dynamic range: 121dB, A- weighted, -60dBFS signal method
Frequency response: ±0.02dB, 20-20kHz
Crosstalk: -130 dB maximum @ 1kHz, -1dBFS signal
Output level at max: +24dBu or +10dBu, jumper selectable
Output Impedance: 100 ohms balanced; 50 ohms unbalanced
1/4" TRS connectors

Headphone out
THD+N: -107dB @1kHz, -1dBFS, 20kHz filter
Dynamic range: 121dB, A-weighted, -60dBFS signal method
Frequency response: ±0.02dB, 20-20kHz
Crosstalk: -130dB maximum @ 1kHz, -1dBFS signal
Output level at max: +19dBu
Output Impedance: 0.6 ohms
1/4” headphone jack



AES/EBU:
transformer-coupled on XLR connectors

S/PDIF I/O coax:
transformer-coupled on RCA jacks

S/PDIF I/O optical:
on optical connectors

ADAT I/O:
8 channels at 48 kHz when selected on optical connectors



Sample Rates
All standard rates up to 192 kHz using SynchroLock 2 sample clock generator with better than 7ppm accuracy.

Synchronization Sources
Internal
External word clock I/O: 75ohm TTL signal on BNC connectors AES/EBU or S/PDIF inputs

Computer Connectivity
Windows 64-bit drivers provided by Lynx
Macintosh macOS USB drivers provided by Apple
Macintosh macOS Thunderbolt drivers provided by Lynx

LSlot™ Expansion Port
Supports Lynx LSlot expansion cards with up to 32 input and outputs simultaneously

LCD Display
480 x 272 IPS TFT LCD with Capacitive Touch





Warranty
1 Year
Manufacturer
Lynx
Model Number
Hilo 2 with LT-TB3
Colour
Black
Weight (Each)
3kg
Length (cm)
25
Width (cm)
22
Height (cm)
8
Voltage
110 - 240v
