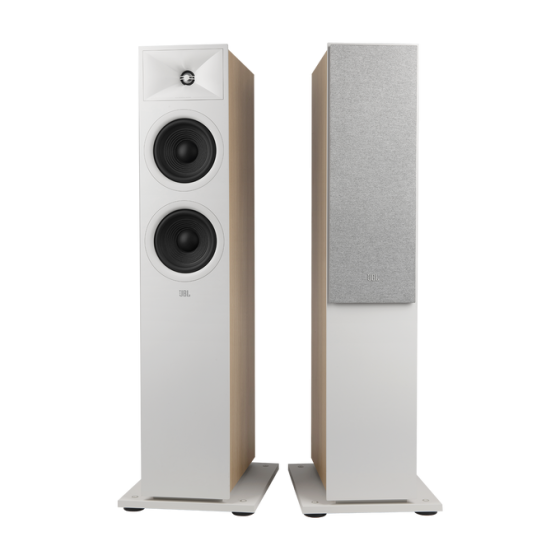

JBL Stage 260F

Passive Loudspeakers

Condition: New
Warranty: 5 Years
Colour: White
HTFH Cat. No.: EB2250
  • Midsize floorstanding loudspeaker of the JBL Stage Series
  • Dual 6.5-inch (165mm) Polycellulose Ribbed Cone Woofers
  • 1-inch (25mm) Anodized Aluminum Tweeter in a Next Generation HDI™ Waveguide
  • Compatible with 240H Atmos Module
  • Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California
£899.00 Pair

Be the first to review this product

Order Before 2.30pm to Get Between 3-5 Working Days Delivery

JBL
JBL Stage 260F
JBL Stage 260F JBL Stage 260F JBL Stage 260F

Overview

Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California, the Stage 260F is the midsize floorstanding loudspeaker of the JBL Stage Series. This floorstanding loudspeaker features a 2.5-way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Anodized Aluminum dome tweeter, and dual 6.5-inch (165mm) Polycellulose ribbed cone woofers that provide deep, signature JBL bass.

Precision 2.5-Way Crossover
The 260F floorstanding model features a unique two and a half-way crossover design. This unique design crosses over the top woofer right below the tweeter’s output, while the other woofer is crossed over at a lower frequency. This creates a dynamic mid-range but both woofers still extend as deep as they can go for powerful bass. This produces cohesive balanced output with a robust low end that can be both heard and felt.

Premium components are used to construct the crossovers fitted to the Stage 2 line. The High frequency section features air core inductors and mylar capacitors that reduce distortion and improve sonic performance. The low frequency section includes laminate core inductors and electrolytic capacitors. These premium materials can handle more power and transmit energy faster elevating system performance.

5-Way Binding Posts
Sturdy 5-way binding posts provide the listener with their choice of high-quality connection. They also match the binding posts on the JBL MA AVRs, carrying the cohesive look throughout.

Magnetically Attached Grilles
Stage 2 has premium details throughout the line including magnetically attached grilles, unique trim rings and the floating front baffle design - upscale features not typically found on loudspeakers in this price range.

Features

Dual 6.5-inch (165mm) Polycellulose Ribbed Cone Woofers

The 260F features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.

1-inch (25mm) Anodized Aluminum Tweeter in a Next Generation HDI™ Waveguide

Through intense research of previous waveguide designs, JBL has developed a new complex geometry that improves directivity, reduced diffraction, and an overall neutral frequency response both on and off axis. The Stage 2 HDI Horn is coupled to an anodized aluminum dome tweeter to enhance efficiency and dynamics. This new design offers a neutral frequency response both on and off axis.

Compatible with 240H Atmos Module

The 260F mates perfectly with the 240H to add Dolby Atmos to your system for an enhanced listening experience. Dedicated Atmos 5-way binding posts hide the wiring and create a seamless appearance.

Technical Specification

JBL Stage 260F

General Specifications
Type
Floorstanding Loudspeaker System

Low Frequency Driver
Dual 6.5-inch (165mm) Polycellulose Ribbed Cone

High Frequency Driver
1-inch (25mm) Anodized Aluminum

Waveguide
Next Generation HDI™

Recommended Amplifier Power
20-225W

Frequency Response ± 6dB
40Hz-25kHz

Sensitivity @ 1M, 2.83V
90dB

Nominal Impedance
6 Ohms

Crossover Frequencies
1.3kHz/1.7Khz

Enclosure Tuning
Bass Reflex via Dual Flared Racetrack Rear-Firing Tuned Ports

Finish
Espresso or Latte

Dimensions
Dimensions (HxWxD)
40.8in x 12.2in x 14.3in (1036mm x 310mm x 362mm)

Dimensions (HxWxD) without Base
43.8in x 9.5in x 16.1in (1113mm x 241mm x 409mm)

Product Weight
43.0 lbs. (19.5 kg)

Shipping Weight
53.1 lbs. (24.1kg)

Shipping Units of Measure
Each

Warranty
5 Years
Manufacturer
JBL
Model Number
Stage 260F
Colour
White
Weight (Each)
20kg
Length (cm)
36
Width (cm)
31
Height (cm)
104
Voltage
n/a
Power Handling
20-225W
