JBL MA510

5.2 Channel 8K AV Receiver

Condition: New
Warranty: 2 Years
Colour: White
HTFH Cat. No.: EB2233
  • Bring both music and movies to life with true high fidelity
  • Spectacular realism with 8K HDMI specifications for a supreme home cinema experience
  • 4K HDMI 2.1
  • 4 HDMI inputs and 1 output, plus eARC
  • Native 5-channel decoding of Dolby and DTS formats
£699.00 Each

Be the first to review this product

Order Before 2.30pm to Get Between 3-5 Working Days Delivery

JBL
JBL MA510
JBL MA510 JBL MA510 JBL MA510

Overview

Bring both music and movies to life with true high fidelity.

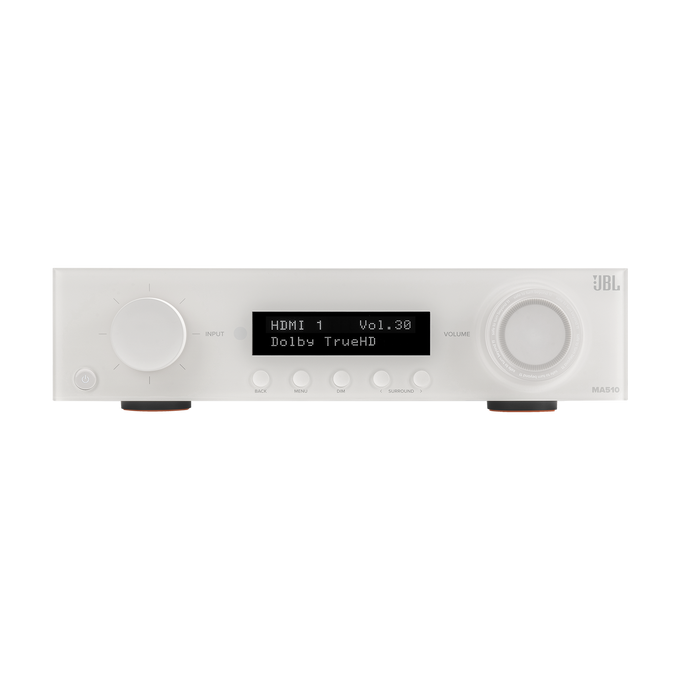

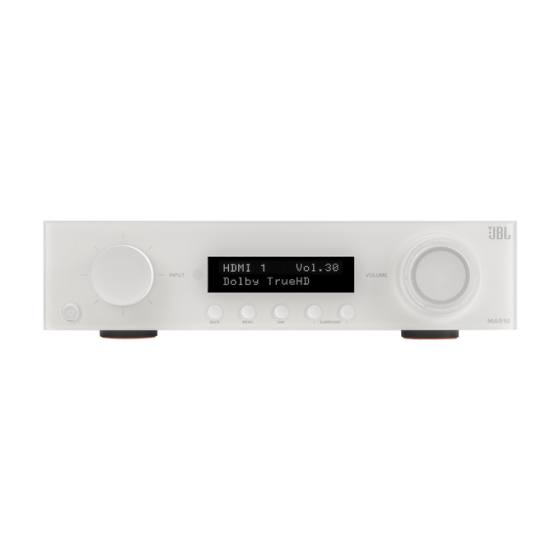

The JBL MA510 is an AV Receiver that delivers spectacular realism with 8K HDMI specifications for a supreme home cinema experience. Seamlessly integrate your smart TV or projector with 4 HDMI inputs and 1 output, plus eARC. With native 5-channel decoding of Dolby and DTS formats, the MA510 can deliver incredible cinema experiences. It is designed with a passion for music and movies, bringing both to life with true high fidelity. Additional music content can be accessed via Bluetooth and network streaming. The MA510 features five channels of low noise Class D amplification for real world power to all channels.

Bring both music and movies to life with true high fidelity
Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast, Roon Ready)

Bluetooth and network streaming
Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast).

On-screen setup and operation
On-screen display for easy system setup and operation (via HDMI).

Features

Spectacular audio and video performance

5.2-channel AV receiver that delivers spectacular audio performance with 8K video for the ultimate home cinema experience.

Intuitive setup with a minimalist modern design

Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 4 HDMI inputs and 1 output, plus eARC.

High-performance immersive surround sound

Native 5-channel decoding of Dolby and DTS formats.

Technical Specification

JBL MA510

General Specifications
HDMI eARC
Yes

HDMI Audio Return Channel
Yes

8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz)

HDMI 2.1 enhanced gaming features
Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)

HDR 10+, Dolby Vision
Yes , Yes

File format
File format up to 48 kHz / 320kbps WMA
MP3 / MPEG-4 AAC

Pure Direct
Yes

EZ Set EQ
Yes

Digital signal processing
up to 24-bit/192kHz

Mains voltage
110 – 240V, 50–60Hz

Max. power consumption
300W

Standby power consumption
<0.5W

Audio Specifications
Channels
5.2
FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)
75W

Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
75 W RMS

Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
100 W RMS

Dimensions
Dimensions incl. feet and speaker terminals (H x W x D)
4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm)

Weight
12lb (5.4kg)

Control and Connection Specifications
HDMI Input/Output
4 / 1

Wi-Fi
Yes (2.4/5GHz)

Bluetooth receiver
Yes (v4.1, Low Energy)

Digital Audio Input
1 Coax, 1 Optical, 1 USB

Stereo analog input
2 single-ended RCA

Pre-Out (single ended RCA)
Subwoofer 1, Subwoofer 2

Ethernet Port (RJ45)
Yes

Warranty
2 Years
Manufacturer
JBL
Model Number
MA510
Colour
White
Weight (Each)
5kg
Length (cm)
35
Width (cm)
43
Height (cm)
17
Voltage
220v / 240v Only
