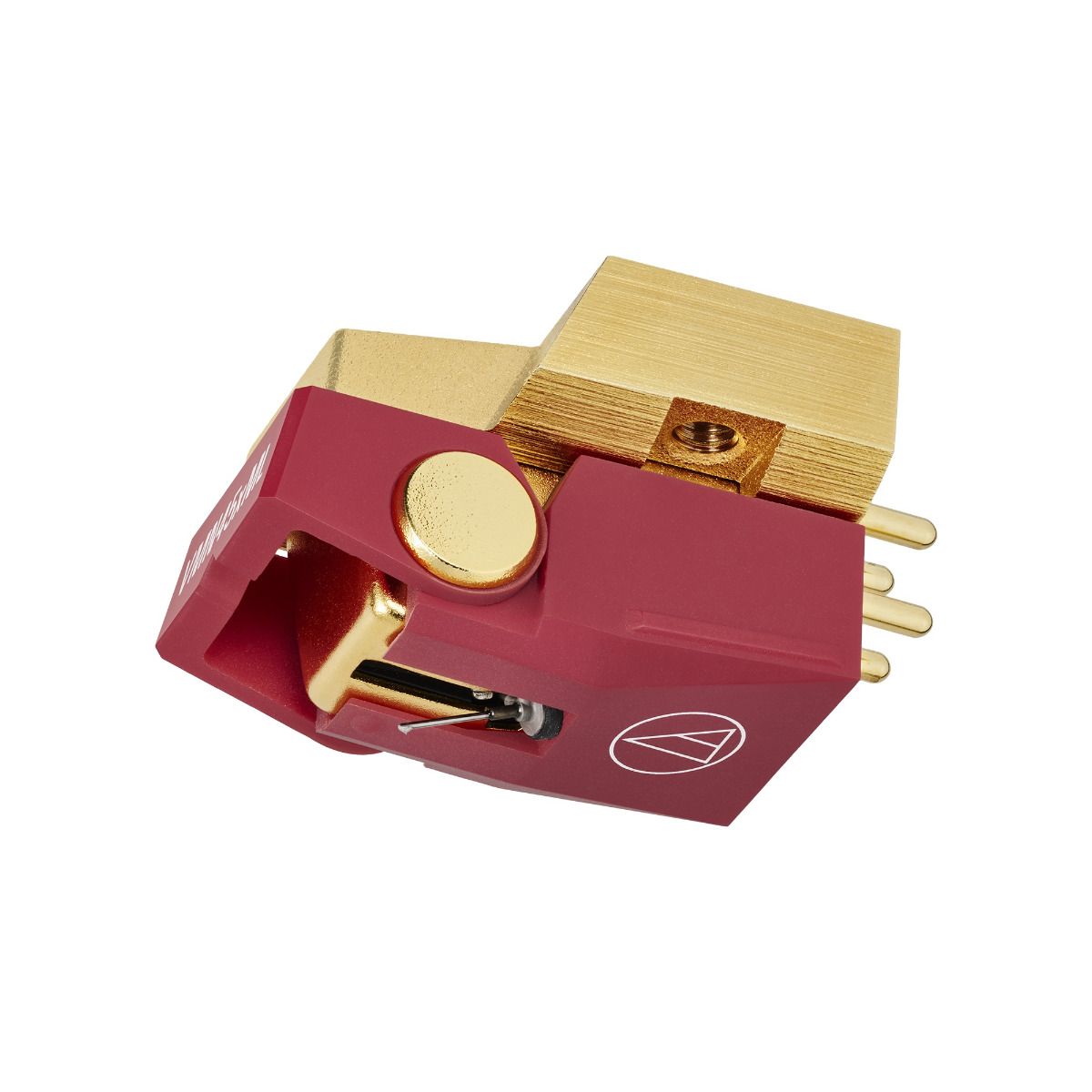

Audio Technica AT-VM745xML

Audio Technica AT-VM745xML

Dual Moving Magnet Cartridge With Microlinear Stylus

Condition: New

Warranty: 2 Years

Colour: Red

HTFH Cat. No.: EB2221

Microlinear stylus tracks the record groove with incredible accuracy, providing more nuanced sound reproduction than elliptical and conical styli
Significantly lighter stylus tip (compared to previous model) allows for more precise tracing of the record groove
Paratoroidal coils improve generating efficiency for enhanced channel separation, channel balance, and transient response
Solid boron cantilever quickly transmits vibrations from the record groove, ensuring accurate reproduction of dynamic musical passages
Threaded inserts make cartridge easier to mount, especially to integrated tonearms

£279.00 Each

Be the first to review this product

Order Before 3.30pm to Get Next Working Day Delivery

Overview

Features

Tech Spec

Overview

The AT-VMx series brings new warmth and realism to Audio-Technica’s premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that’s alive with musical detail. This latest renewal of the line introduces material and design changes to further refine the VM sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.

Like all our MM cartridges, this updated design closely mirrors the cutter head used to make the vinyl master. It utilizes two magnets, positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. But the new VMx series also introduces material and design changes to further refine the sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.

Features

Easy To Install & Use

Each AT-VMx cartridge body has threaded inserts, enabling it to be mounted to a headshell with just two screws – no nuts required. And the redesigned stylus protector now includes a V-cut for easy reference of the stylus’s position when lowering it onto a record.

Highly Efficient Generator

The paratoroidal coil construction of the cartridge’s generator – two PCUHD coils per channel, one stacked behind the other – greatly improves electromagnetic performance, while a slight reduction in coil turns enhances transient response for clean, lifelike sound.

Interchangeable Styli

Since all AT-VMx and VM Series cartridges share the same body design and have a removable stylus, you can use almost any AT-VMNx or VMN replacement stylus with any VMx or VM cartridge for easy experimentation with sound characteristics.

All In The Design

The AT-VMx cartridges use the same 90° V-Shape configuration as the cutter head. This way, the cartridge achieves accurate tracking, excellent channel separation, high definition of the stereo image and extreme clarity over the entire audio spectrum. The standard cutter head (used to record the vinyl master) uses two transducer coils, mounted perpendicular to each other at 45° from horizontal, to cut the channel: one in each wall of the 90° record groove. The AT-VMx cartridges use the same 90° V-Shape configuration as the cutter head. This way, the cartridge achieves accurate tracking, excellent channel separation, high definition of the stereo image and extreme clarity over the entire audio spectrum.

Technical Specification

Audio Technica AT-VM745xML

AT-VMx dual moving magnet cartridge with microlinear stylus

Microlinear stylus tracks the record groove with incredible accuracy, providing more nuanced sound reproduction than elliptical and conical styli

Significantly lighter stylus tip (compared to previous model) allows for more precise tracing of the record groove

Solid boron cantilever quickly transmits vibrations from the record groove, ensuring accurate reproduction of dynamic musical passages

Die-cast aluminum housing reduces vibrations and resonance

Paratoroidal coils improve generating efficiency for enhanced channel separation, channel balance, and transient response

PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response

Center shield plate between the left and right channels reduces crosstalk for clear stereo sound

Threaded inserts make cartridge easier to mount, especially to integrated tonearms

V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record

Compatible with any turntable headshell that accepts 1/2" cartridges

Compatible with most AT-VMx series replacement styli,* offering a wide choice of options for every budget and application

Frequency Response
20 to 27,000 Hz

Channel Separation
26 dB (1 kHz)

Vertical Tracking Force
20°

Tracking Force
1.8 to 2.2 g (2.0 g standard)

Stylus Construction
Nude Microlinear

Recommended Load Impedance
47 k ohms

Coil Impedance
3.2 k ohms (1 kHz)

DC Resistance
750 ohms

Coil Inductance
480 mH (1 kHz)

Output Voltage
3.7 mV (1 kHz, 5 cm/sec.)

Output Balance
1.0 dB (1 kHz)

Cantilever
0.28 mm (0.011”) diameter solid boron

Static Compliance
20 × 10-6 cm/dyne

Dynamic Compliance
7 × 10-6 cm/dyne (100 Hz)

Dimensions
29.0 mm (1.1”) × 18.3 mm (0.72”) × 17.5 mm (0.69”) (H × W × D)

Accessories Included
Cartridge installation screws (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2), Washer × 2, Non-magnetic screwdriver, Brush

Threaded Hole
M2.6 × 2

Recommended Load Capacitance
150 to 250 pF

Replacement Stylus
AT-VMN45xML (sold separately)

Stylus Curvature Radius
2.2 × 0.12 mil

Type
VM

Weight
8.8 g (0.31 oz)

Warranty

2 Years

Manufacturer

Audio Technica

Model Number

AT-VM745xML

Colour

Red

Weight (Each)

Length (cm)

Width (cm)

Height (cm)

Voltage

n/a
