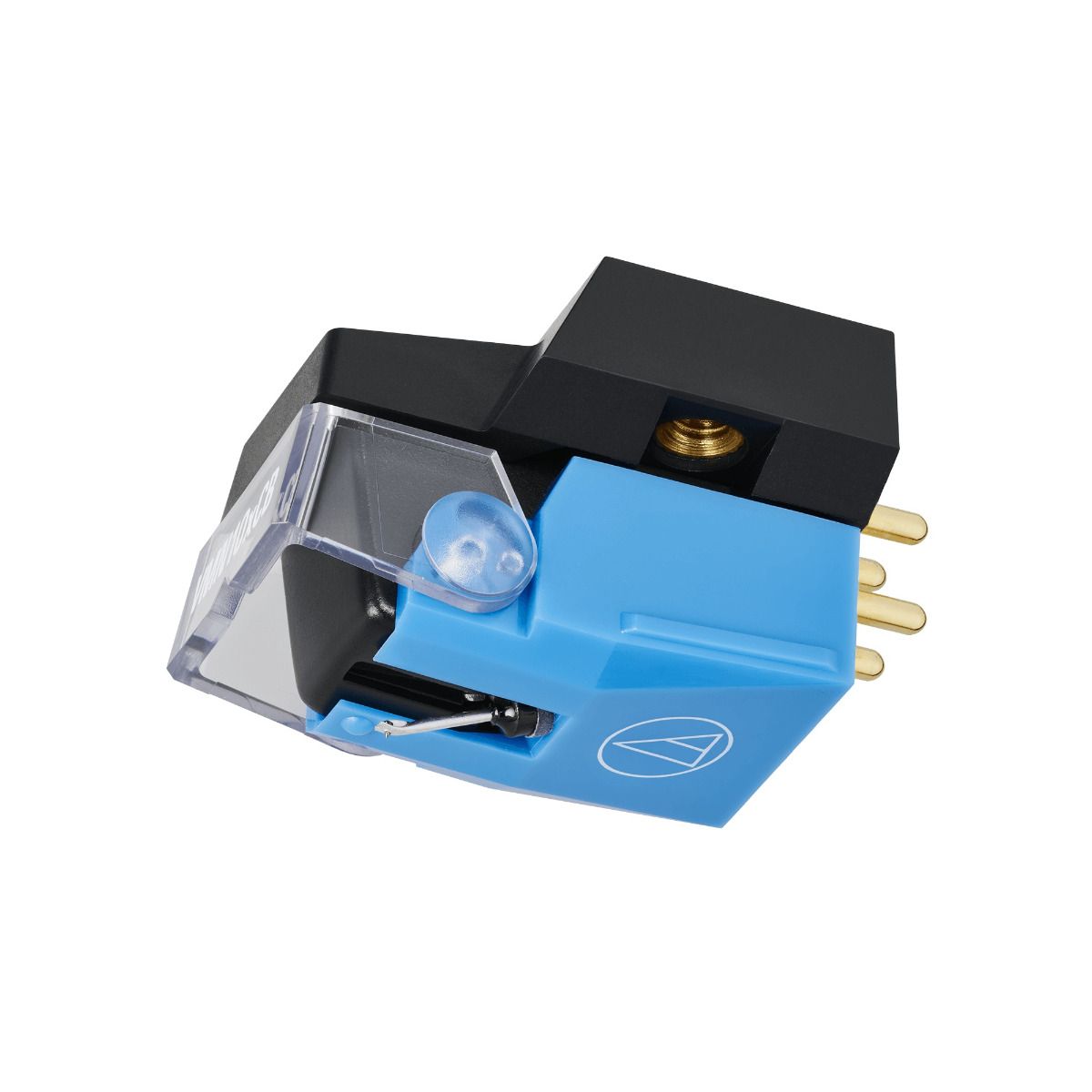

Audio Technica AT-VM610xMONO

Audio Technica AT-VM610xMONO

Dual Moving Magnet Mono Cartridge With Conical Stylus

Condition: New

Warranty: 2 Years

Colour: Blue

HTFH Cat. No.: EB2217

0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity
Paratoroidal coils improve generating efficiency for enhanced transient response
PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response
Aluminum cantilever
Mono body terminating left and right channels reduces surface noise

£109.00 Each

Be the first to review this product

Order Before 2.30pm to Get Between 3-5 Working Days Delivery

Overview

Features

Tech Spec

Overview

The AT-VMx series brings new warmth and realism to Audio-Technica’s premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that’s alive with musical detail. This latest renewal of the line introduces material and design changes to further refine the VM sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.

As its name indicates, the AT-VM610xMONO is designed for playing mono records. The dual magnets in this cartridge are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide.

Features

Easy To Install & Use

Each AT-VMx cartridge body has threaded inserts, enabling it to be mounted to a headshell with just two screws – no nuts required. And the redesigned stylus protector now includes a V-cut for easy reference of the stylus’s position when lowering it onto a record.

Highly Efficient Generator

The paratoroidal coil construction of the cartridge’s generator – two PCUHD coils per channel, one stacked behind the other – greatly improves electromagnetic performance, while a slight reduction in coil turns enhances transient response for clean, lifelike sound.

Interchangeable Styli

Since all AT-VMx and VM Series cartridges share the same body design and have a removable stylus, you can use almost any AT-VMNx or VMN replacement stylus with any VMx or VM cartridge for easy experimentation with sound characteristics.

All In The Design

The AT-VMx cartridges use the same 90° V-Shape configuration as the cutter head. This way, the cartridge achieves accurate tracking, excellent channel separation, high definition of the stereo image and extreme clarity over the entire audio spectrum. The standard cutter head (used to record the vinyl master) uses two transducer coils, mounted perpendicular to each other at 45° from horizontal, to cut the channel: one in each wall of the 90° record groove. The AT-VMx cartridges use the same 90° V-Shape configuration as the cutter head. This way, the cartridge achieves accurate tracking, excellent channel separation, high definition of the stereo image and extreme clarity over the entire audio spectrum.

Technical Specification

Audio Technica AT-VM610xMONO

AT-VMx dual moving magnet cartridge with 0.6 mil conical bonded stylus

0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity

Paratoroidal coils improve generating efficiency for enhanced transient response

PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response

Threaded inserts make cartridge easier to mount, especially to integrated tonearms

V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record

Durable low-resonance polymer housing

Aluminum cantilever

Mono body terminating left and right channels reduces surface noise

Compatible with any turntable headshell that accepts 1/2" cartridges

Frequency Response
20 to 20,000 Hz

Vertical Tracking Angle
20°

Tracking Force
1.8 to 2.2 g (2.0 g standard)

Stylus Construction
Conical bonded

Recommended Load Impedance
47 k ohms

Coil Impedance
1.6 k ohms (1 kHz)

DC Resistance
375 ohms

Coil Inductance
240 mH (1 kHz)

Output Voltage
5.0 mV (1 kHz, 5 cm/sec.)

Horizontal/Vertical Output Ratio
20 dB (1 kHz)

Cantilever
Aluminum pipe

Static Compliance
23 × 10-6 cm/dyne

Dynamic Compliance
7 × 10-6 cm/dyne (100 Hz)
Dimensions
28.0 mm (1.1”) × 18.3 mm (0.72”) × 17.6 mm (0.69”) (H × W × D)

Accessories Included
Cartridge installation screws (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2), Washer × 2

Threaded Hole
M2.6 × 2

Recommended Load Capacitance
150 to 250 pF

Replacement Stylus
AT-VMN10xCB* (sold separately)

Stylus Curvature Radius
0.6 mil

Type
VM

Weight
7.2 g (0.25 oz)

Warranty

2 Years

Manufacturer

Audio Technica

Model Number

AT-VM610xMONO

Colour

Blue

Weight (Each)

Length (cm)

Width (cm)

Height (cm)

Voltage

n/a
