The secret for success for installing INTROLINKS in your music system is to insert your loudspeaker cables into the TWEETER or HIGH FREQUENCY terminals of your loudspeaker.
This places your bass / mid-range speaker drivers in series with the large ferrite in the links.
This is more effective because the bass / mid-range speaker drivers handle about 90% of the energy from the amplifier. The large ferrite core under the heat shrink label will filter out a lot of distortion in your cable.
Your loudspeakers will sound much better if you connect them this way.
Technical Specification

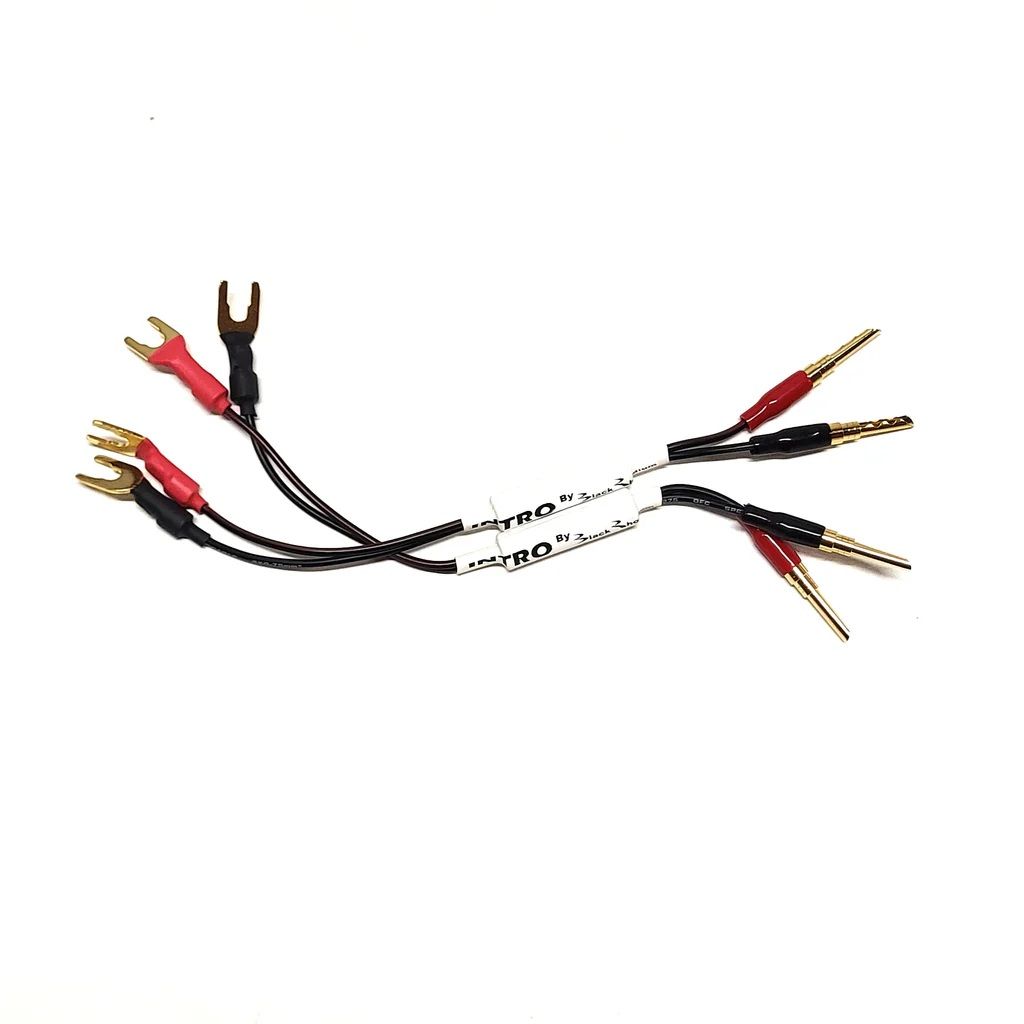

Black Rhodium INTRO
Signal conductor 0.75 sq.mm multistrand copper
Insulation PVC
Noise rejection Large ferrite core 45mm length
First end connectors Gold plated plugs
Second end connectors Gold plated 4mm 'Z' plugs
Polarity identification Black and red connectors cover
Dimensions Length 280mm Cable outer dimensions 2.8mm x 5.6mm Ferrite diameter 12.5mm Max. connector size Z plug 8.2mm Spade 14.3mm wide at end and 9mm diameter at termination
