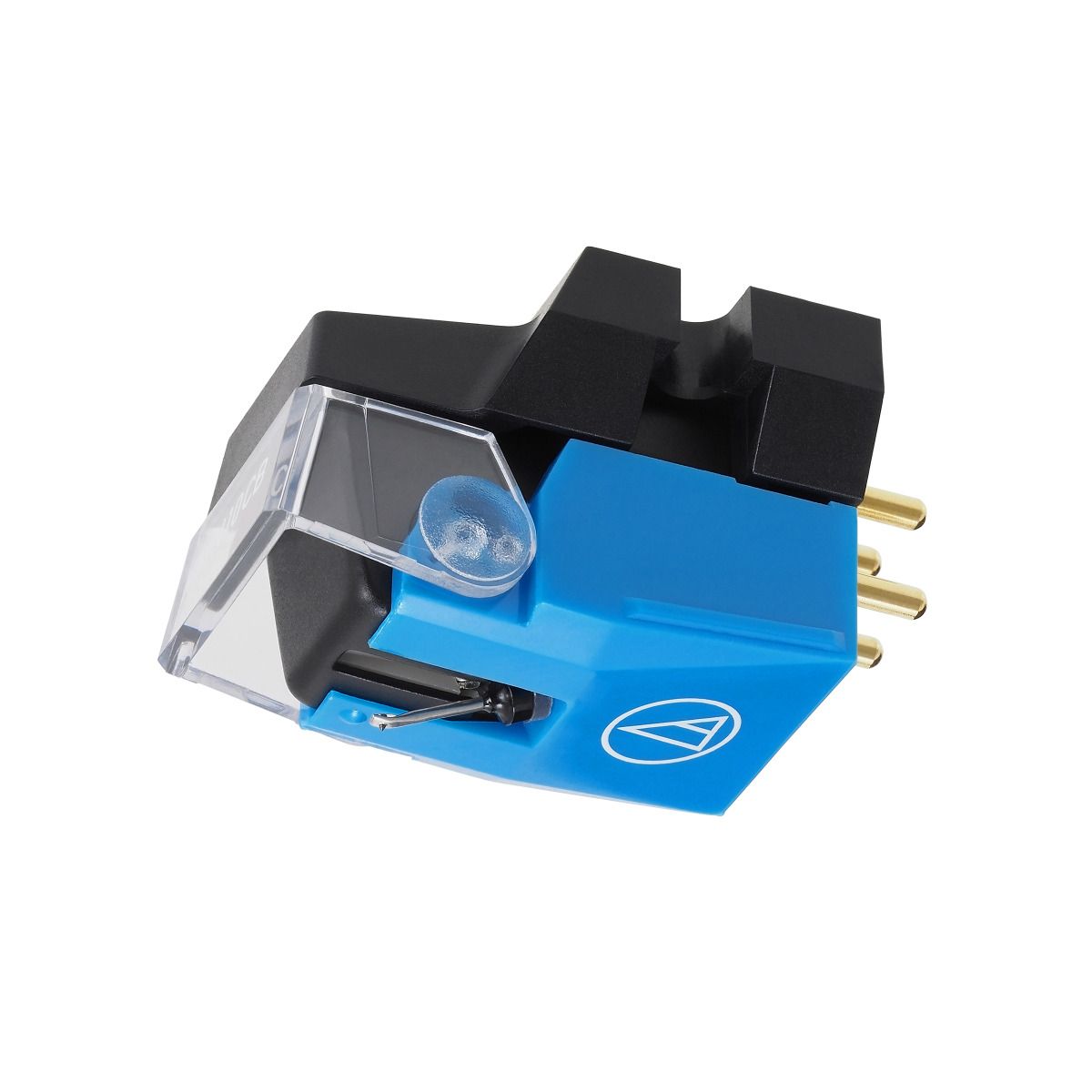

With a specialized body and internal wiring dedicated to monaural sound reproduction, the VM610MONO conical stylus cartridge is designed for playing mono records. Part of the 600 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges – the VM610MONO is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide.
Technical Specification
Audio Technica VM610MONO
Type VM Type Mounting 1/2” centres Frequency Response 20 - 20,000Hz Output Voltage 3.0mV (1kHz, 5cm/sec.) Vertical Tracking Angle 23˚ Vertical Tracking Force Range 1.8 – 2.2g (2.0g standard) Stylus Shape Conical Bonded Stylus Size 0.6 mil Stylus Construction Bonded Round Shank Cantilever Aluminium Pipe Coil Impedance 1,400Ω (1kHz) Static Compliance 35 x 10-6 cm/dyne Dynamic Compliance 8 x 10-6 cm/dyne (100Hz) Recommended Load Impedance 47,000Ω Recommended Load Capacitance 100 – 200pF Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm Replacement Stylus VMN10CB Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2
