The AT-VM95C, the new Audio-Technica entry model Conical cartridge will replace the legendary AT90 Series models such as AT91, AT91R and CN5625AL
Also the AT-VM95C is a “budget” cartridge featuring a conical stylus, the compatibility in the range will allow to upgrade with any of the 4 other LP styli of the Series such as Elliptical, Elliptical Nude, Microlinear and Shibata.
Technical Specification

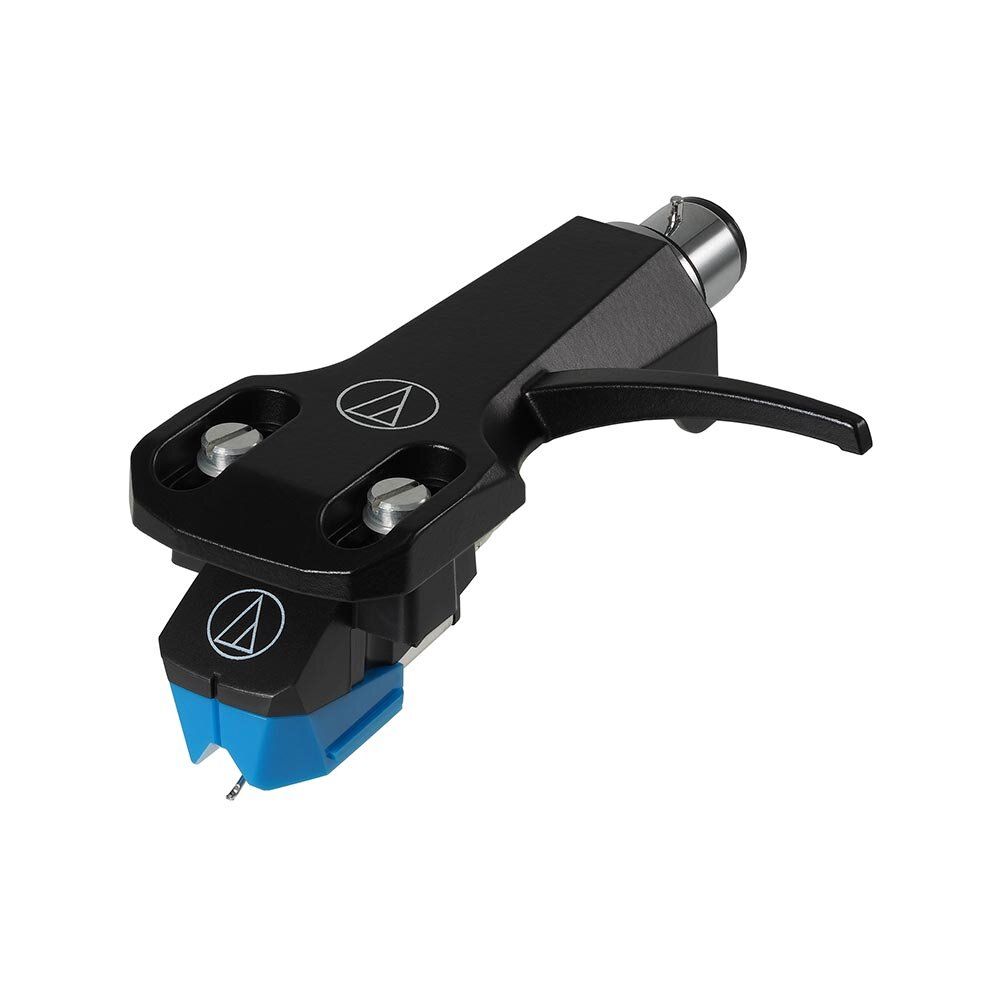

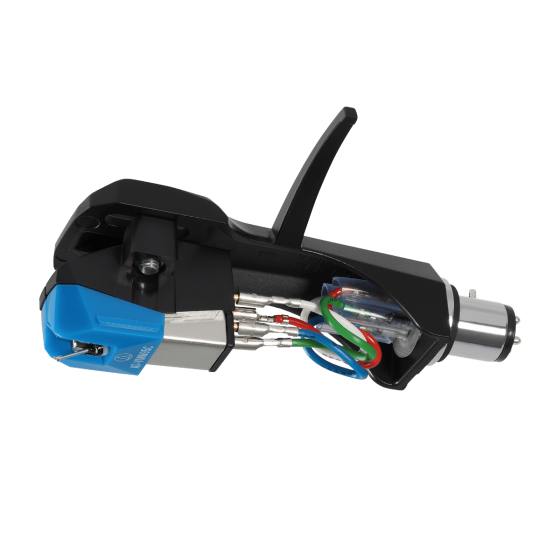

Audio Technica AT-VM95C/H
Model AT-VM95C Type VM Stereo Dual Magnet Mounting 1/2” centres Frequency Response 20 - 20,000 Hz Channel Separation 18 dB (1 kHz) Output Channel Balance 2.5 dB (1 kHz) Output Voltage 4.0 mV (@ 1 kHz, 5 cm/sec) Vertical Tracking Angle 23° Vertical Tracking Force Range 1.8 - 2.2g (standard 2.0 g) Stylus Shape Conical Stylus Size 0.6 mil Stylus Construction Bonded Round Shank Cantilever Aluminium Pipe Coil Impedance 3.3 kΩ (1 kHz) Coil Inductance 550 mH (1 kHz) DC Resistance 485 Ω Static Compliance 17 x 10 – 6 cm / dyne Dynamic Compliance 6.5 x 10 – 6 cm / dyne (100 Hz) Wire Used for Coil T.P. Copper Recommended Load Impedance 47,000 Ω Recommended Load Capacitance 100-200 pF Cartridge Weight 6.1g Dimensions 17.2 x 18.9 x 28.3 ( H x W x D mm) Replacement Stylus AT-VMN95C Accessories Included Two 11 mm installation screws; Two 8 mm installation screws; Two washers
