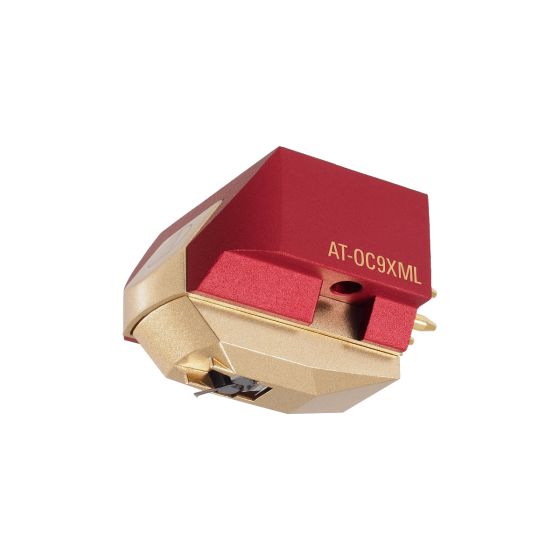

Audio Technica AT-OC9XML

Dual Moving Coil Cartridge & Stylus

Condition: New
Warranty: 2 Years
Colour: Red
HTFH Cat. No.: EB657
  • Features nude Microlinear stylus and boron cantilever
  • Neodymium magnet and permendur yoke for increased magnetic energy
  • Aluminium body minimizes unwanted vibration for reduced resonance
  • PCOCC is used for the coils to achieve pure signal transmission
  • Threaded inserts in the cartridge designed to work best with AT-LH15H (EB660) & AT-LH18H (EB661) headshells
£479.95 Each

Be the first to review this product

Order Before 2.30pm to Get Within 7 Days with FREE shipping (UK only)

Audio Technica
Audio Technica AT-OC9XML
Audio Technica AT-OC9XML Audio Technica AT-OC9XML Audio Technica AT-OC9XML Audio Technica AT-OC9XML


The AT-OC9XML Dual Moving Coil cartridge with Microlinear stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that increase the magnetic energy, and the nude Microlinear stylus on a boron cantilever that tracks the record groove with incredible accuracy, low distortion and high-transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

Technical Specification

Audio Technica AT-OC9XML

Model     AT-OC9XML
Mounting     1/2” centers / Threaded
Frequency Response     20 to 47,000 Hz
Body Material     Aluminium
Channel Separation     27 dB (1 kHz)
Output Channel Balance     1.0 dB (1 kHz)
Output Voltage     0.4 mV (at 1 kHz, 5 cm/sec)
Vertical Tracking Angle     20 degrees
Vertical Tracking Force Range     1.8 to 2.2 g (standard 2.0 g)
Stylus Shape     Microlinear
Stylus Size     2.2 x 0.12 mil
Stylus Construction     Nude square shank
Cantilever     0.28 mm Ø nude boron
Coil Impedance     12 Ohms (1 kHz)
Coil Inductance     25 μH (1 kHz)
DC Resistance     12 Ohms
Static Compliance     20 x 10 – 6 cm / dyne
Dynamic Compliance     16 x 10 – 6 cm / dyne (100 Hz)
Terminal Pins     Brass
Wire Used for Coil     PCOCC (Copper by Ohno Continuous Casting process.)
Recommended Load Impedance     Min 100 Ohms
Cartridge Weight     7.6 g
Dimensions     17.3 (H) x 16.8 (W) x 25.7 (L) mm
Accessories Included     1 non magnetic screw driver
1 brush
2 washers
4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
1 plastic protector
