Audio Technica AT-LPA2

The finest turntable Audio-Technica has ever developed, designed to reveal the purity of analogue audio

Despite the turntable’s mechanical precision, it remains incredibly easy to set up and use

Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM

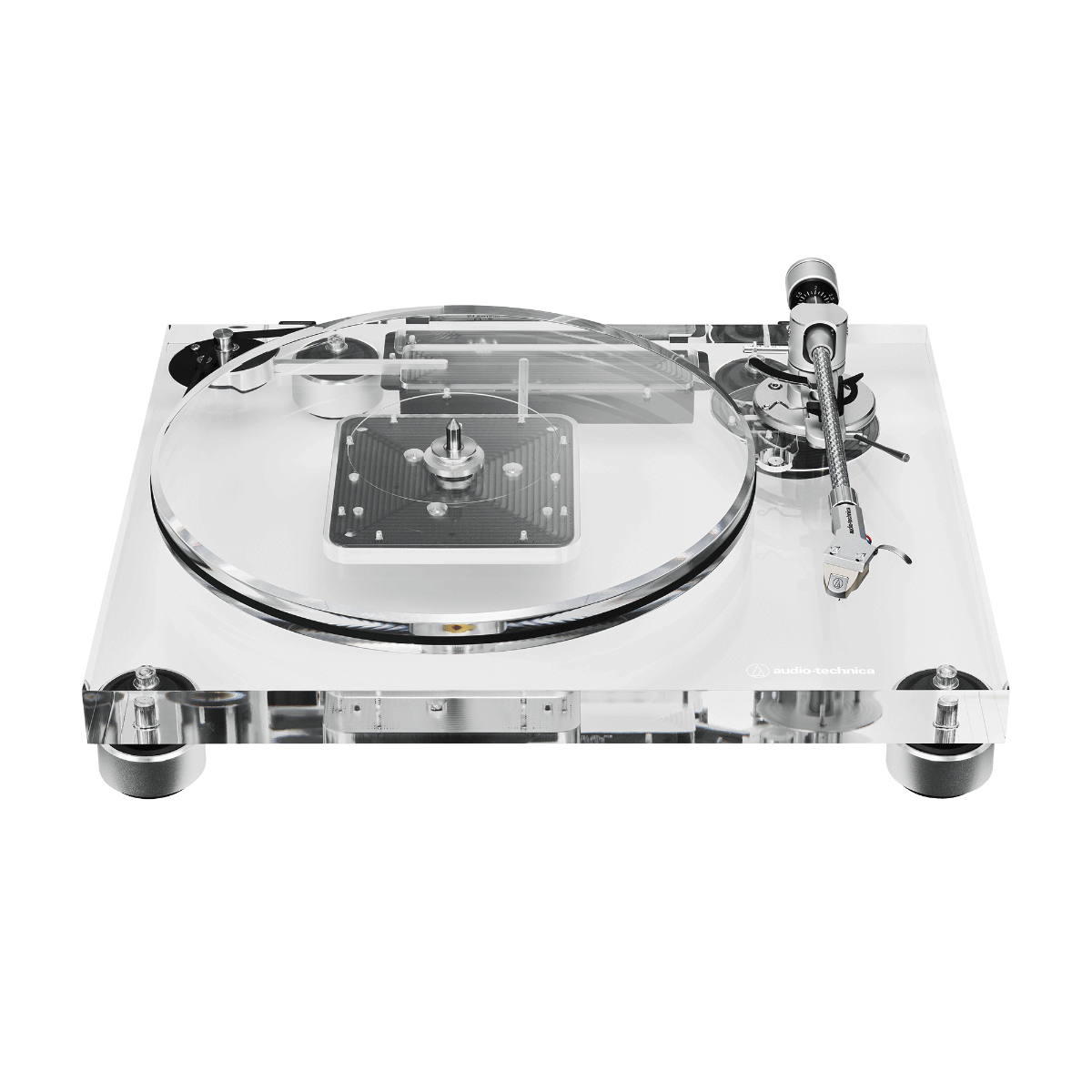

30 mm-thick transparent chassis is made from low-resonance, high-density clear acrylic

20 mm-thick, high-density transparent acrylic platter is calibrated to spin at a consistent speed

AT-OC9XEN MC cartridge* with 0.3 x 0.7 mil elliptical nude stylus provides detailed sound reproduction with excellent channel separation and low distortion

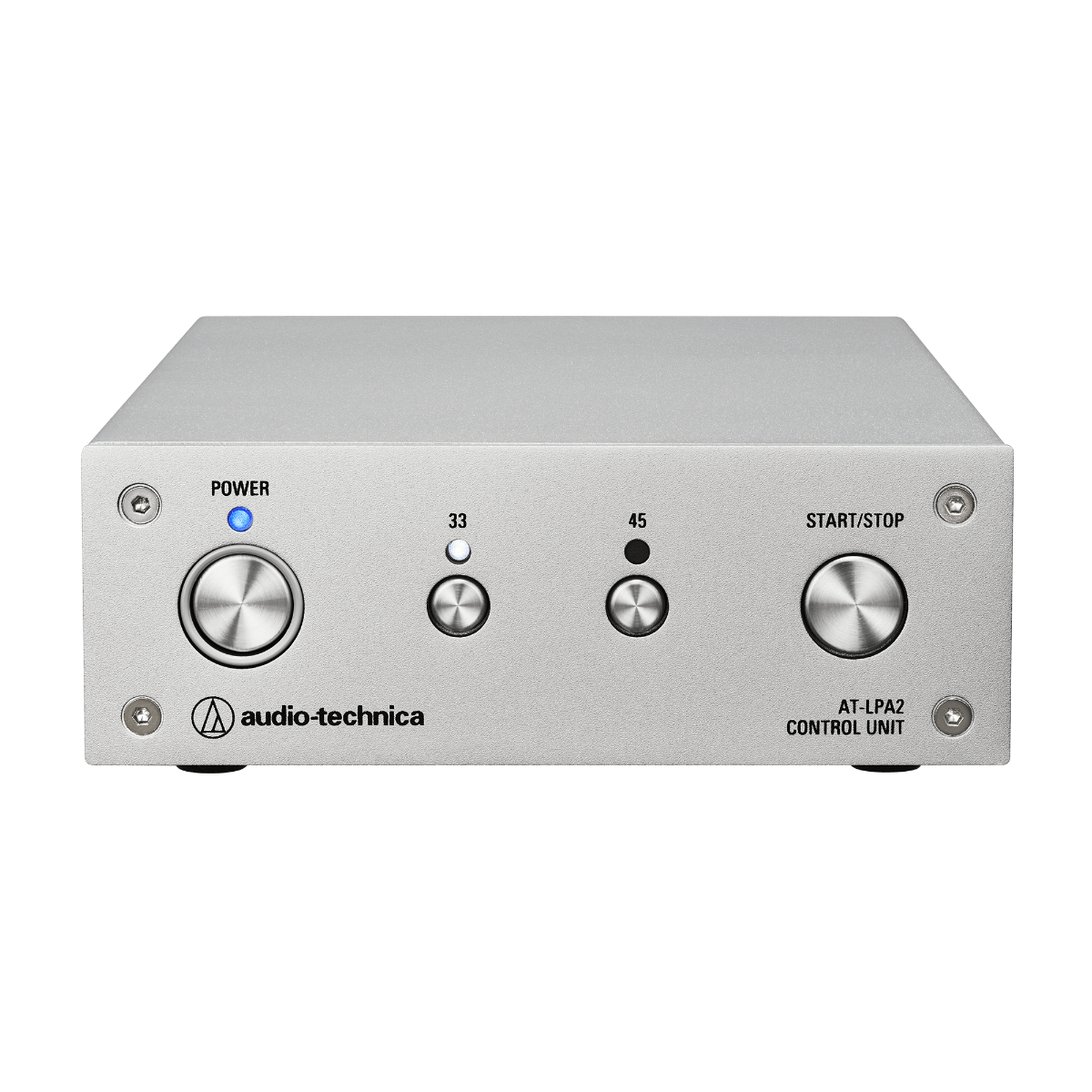

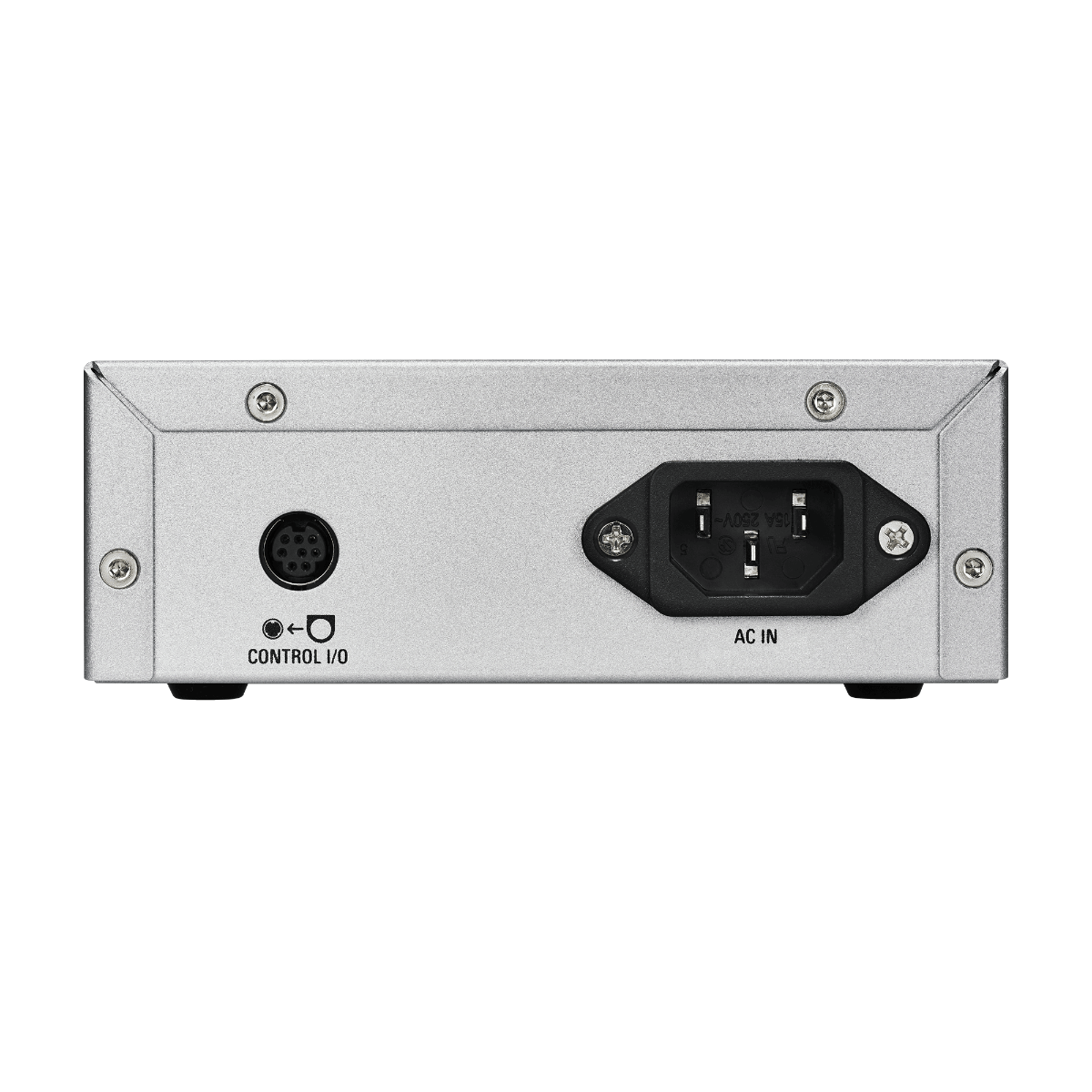

Separate control unit / power supply isolates the turntable from unwanted electrical noise

Optical sensor, positioned under the spindle, monitors platter rotation to maintain accurate speed

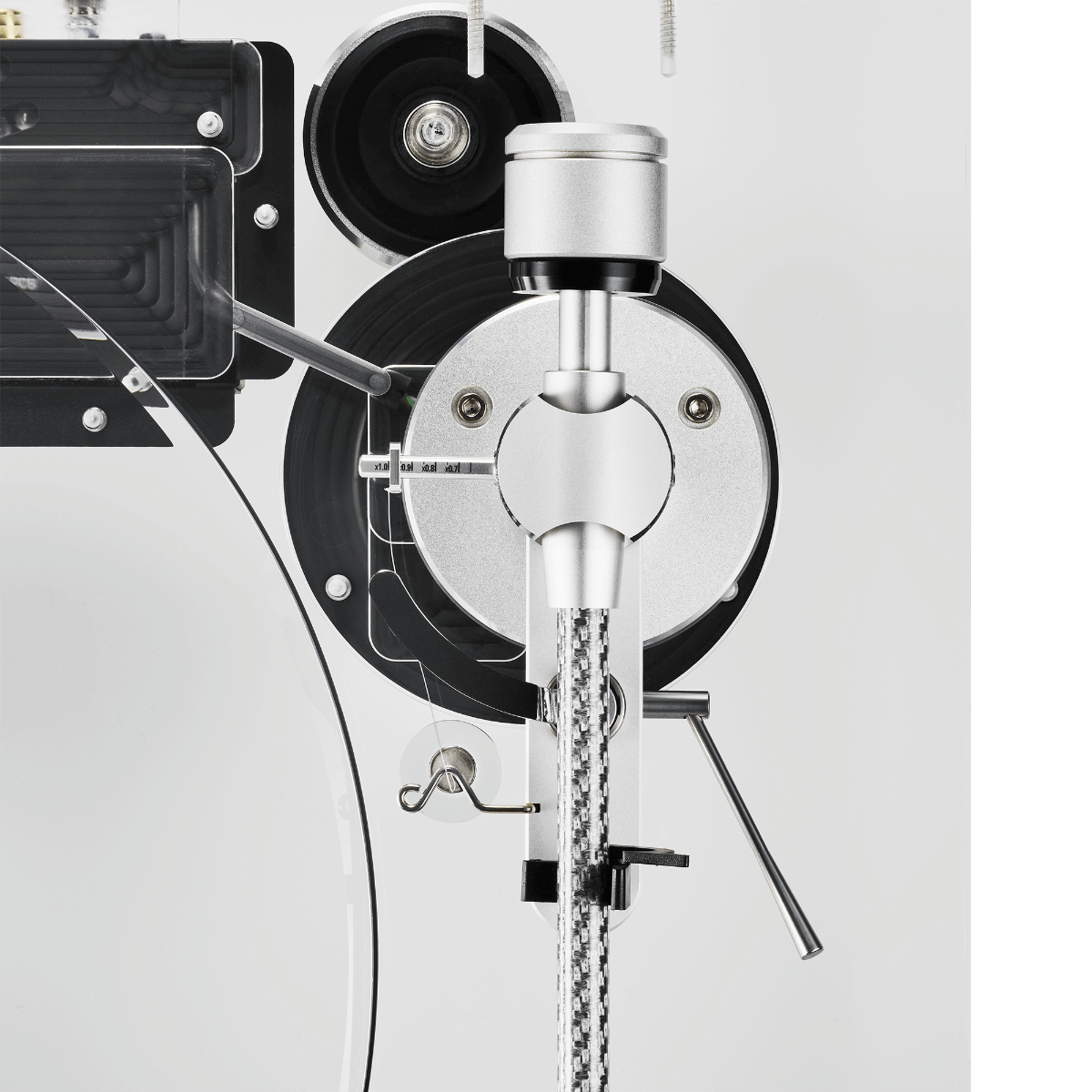

Newly designed, carbon-fiber tonearm is precision-engineered for superior tracking and stability, with adjustable VTA

Highly accurate and finely adjustable weighted anti-skate mechanism (string-type)

Includes both a 110 g and 130 g counterweight to accommodate most cartridge configurations

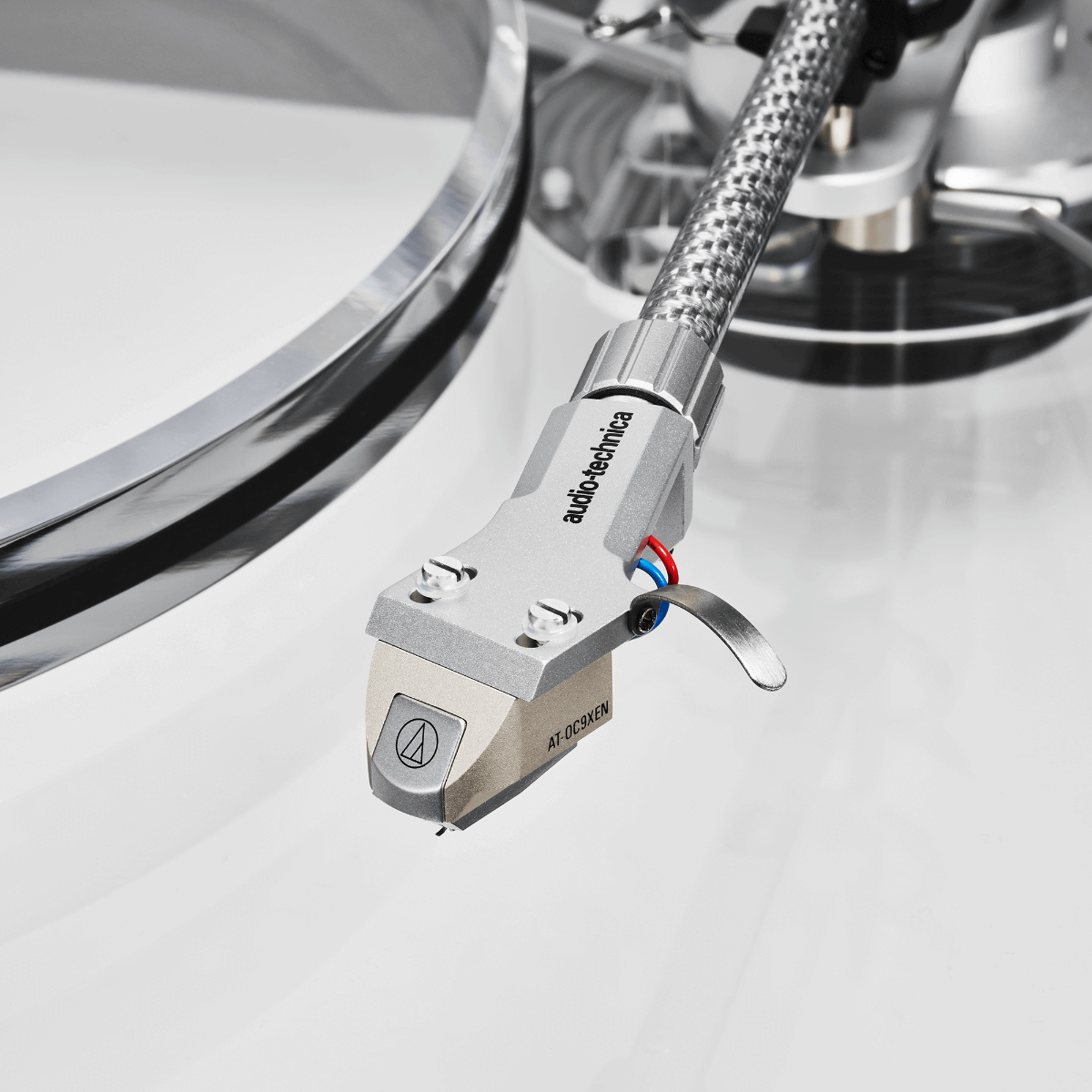

Exclusive machined-aluminium headshell with azimuth adjustment

Phono-level output provides pure, direct transmission of the cartridge’s signal

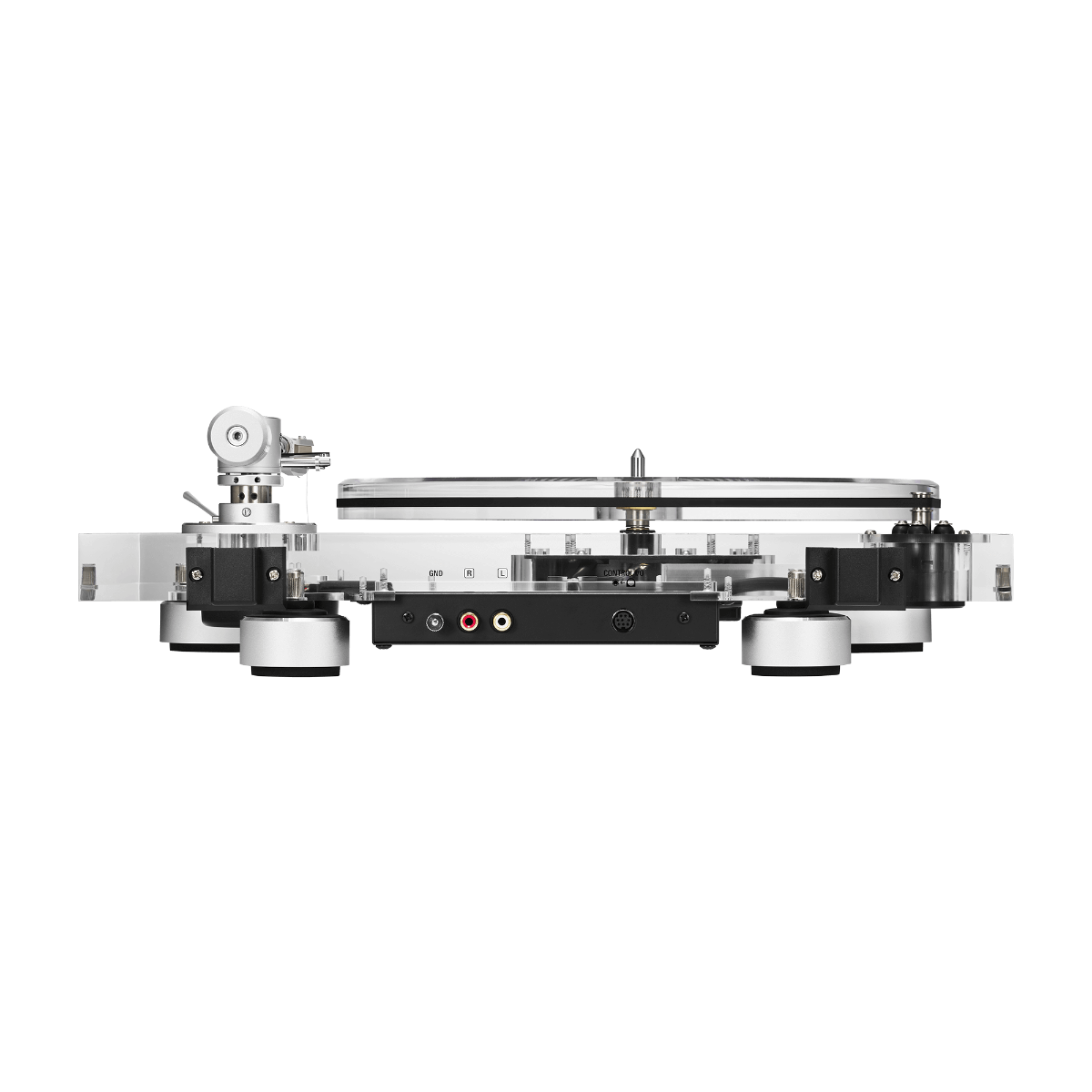

Exclusively designed heavy-duty, height-adjustable feet isolate the turntable from vibration

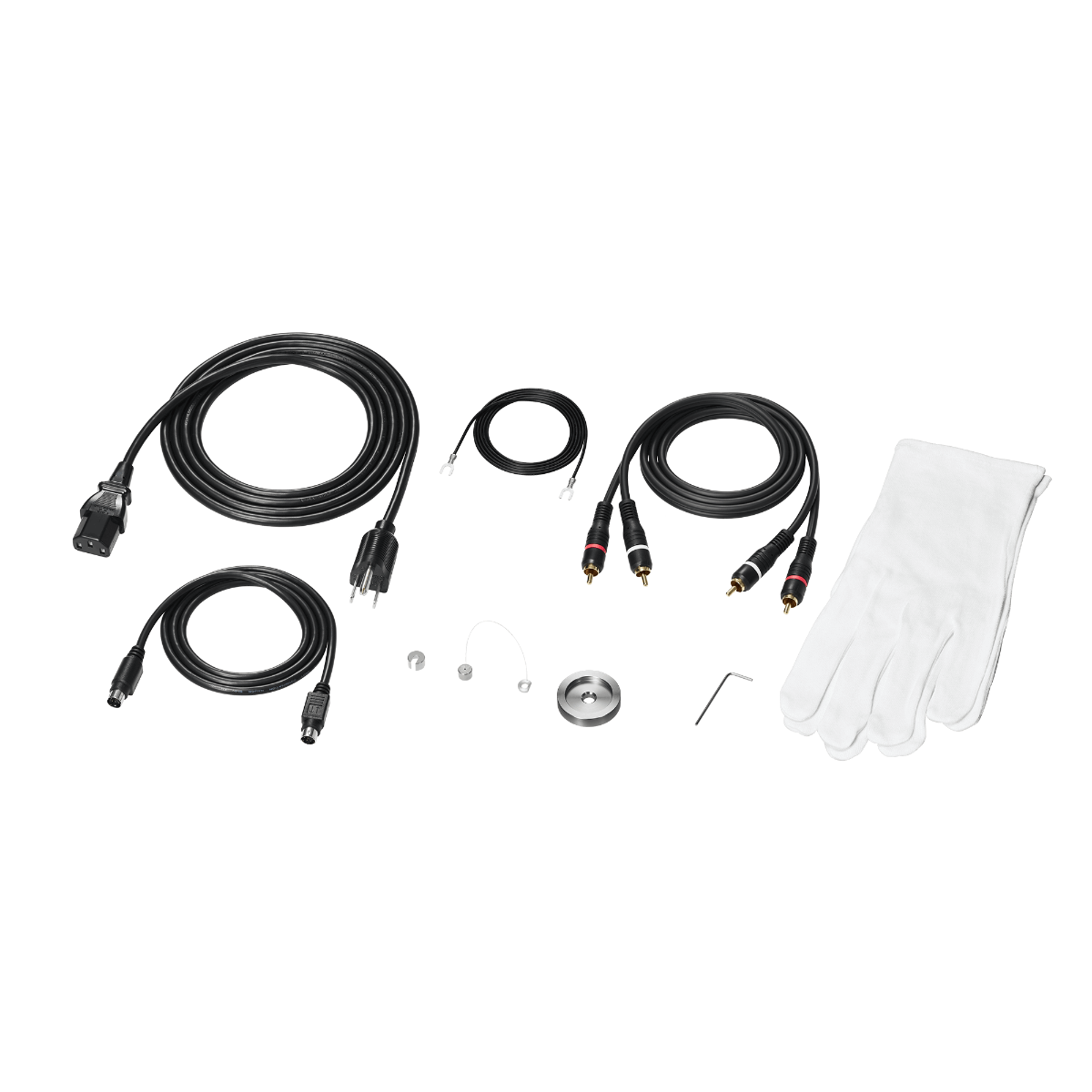

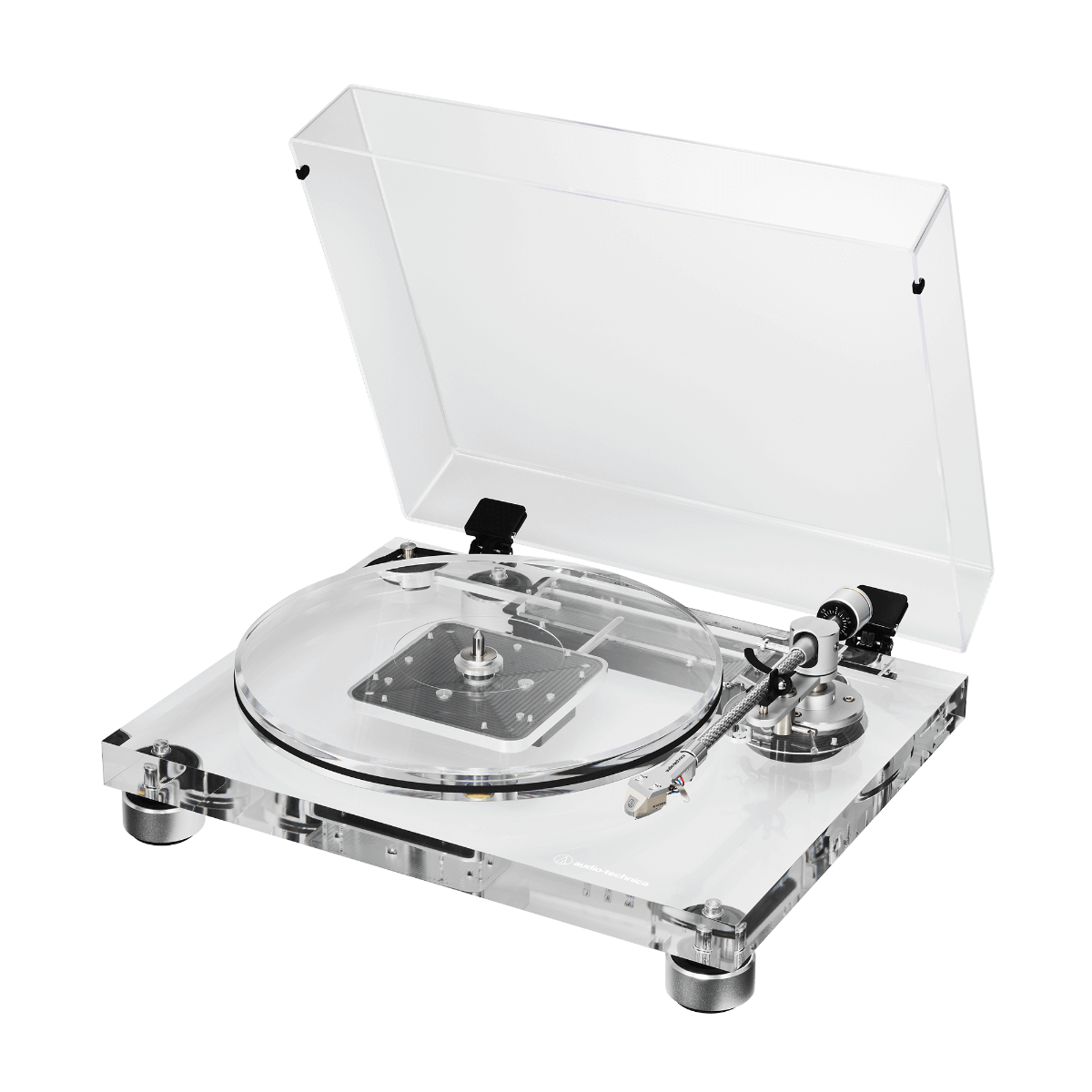

Includes dual RCA (male) to dual RCA (male) stereo cable, ground wire, 45 RPM adapter, removable hinged dust cover, hex wrench (to adjust tonearm height), white inspection gloves (to prevent fingerprints during setup)

Motor
DC servo

Drive Method
Belt drive

Speeds
33-1/3 RPM or 45 RPM

Turntable Platter
20 mm-thick, acrylic platter

Wow and Flutter
<0.12% WRM (33 RPM)

Signal-to-Noise Ratio
> 60 dB

Cartridge Type
MC

Power Supply Requirements
100 to 240 V, 50/60 Hz

Power Consumption
6 W

Dimensions
Turntable body:
420 mm (17") × 340 mm (13") × 135 mm (5.3") (W × D × H)
Control unit:
133 mm (5.2") x 228 mm (9.0") x 50 mm (2.0") (W x D x H)

Weight
Turntable body:
Approx. 8.4 kg (19 lbs)
Control unit:
Approx. 1.1 kg (2.4 lbs)

Accessories Included
Control unit, Dust cover, Platter, Drive belt, Dust cover hinges, Counterweight (light), Counterweight (heavy), Weight for anti-skate, Auxiliary weight for anti-skate, Headshell with MC stereo cartridge (AT-OC9XEN), 45 RPM adapter, RCA audio cable (approx. 1.1 m (3.6’)), Power cable (approx. 1.8m (5.9’)) *, Control cable (approx. 1.0 m (3.3’)), Ground cable (approx. 1.1 m (3.6’)), Hexagonal wrench, Gloves
*Power cable length and plug shape may vary depending on the country of sale.

Tonearm Type
Static balanced straight carbon tonearm

Effective Arm Length
223.6 mm

Overhang
18.6 mm

Tracking Error Angle
Less than 2.0°

Stylus Pressure Adjustment Range
0 to 3.0 g

Applicable Cartridge Weight (excluding headshell)
When counterweight (light) is used:
6.1 to 9.2 g
When counterweight (heavy) is used:
9.2 to 13.9 g

Tonearm Height Adjustment Range
-1.5 mm to +7 mm (with included cartridge)

Anti-skate Mechanism
Thread-suspended type

Anti-skate Adjustment Range
Equivalent to 1.3 g to 3.0 g stylus pressure

Replacement Cartridge
AT-OC9XEN

Replacement Belt
AT-LPA2 exclusive belt (sold separately)

Notes
For product improvement, the product is subject to modification without notice.
