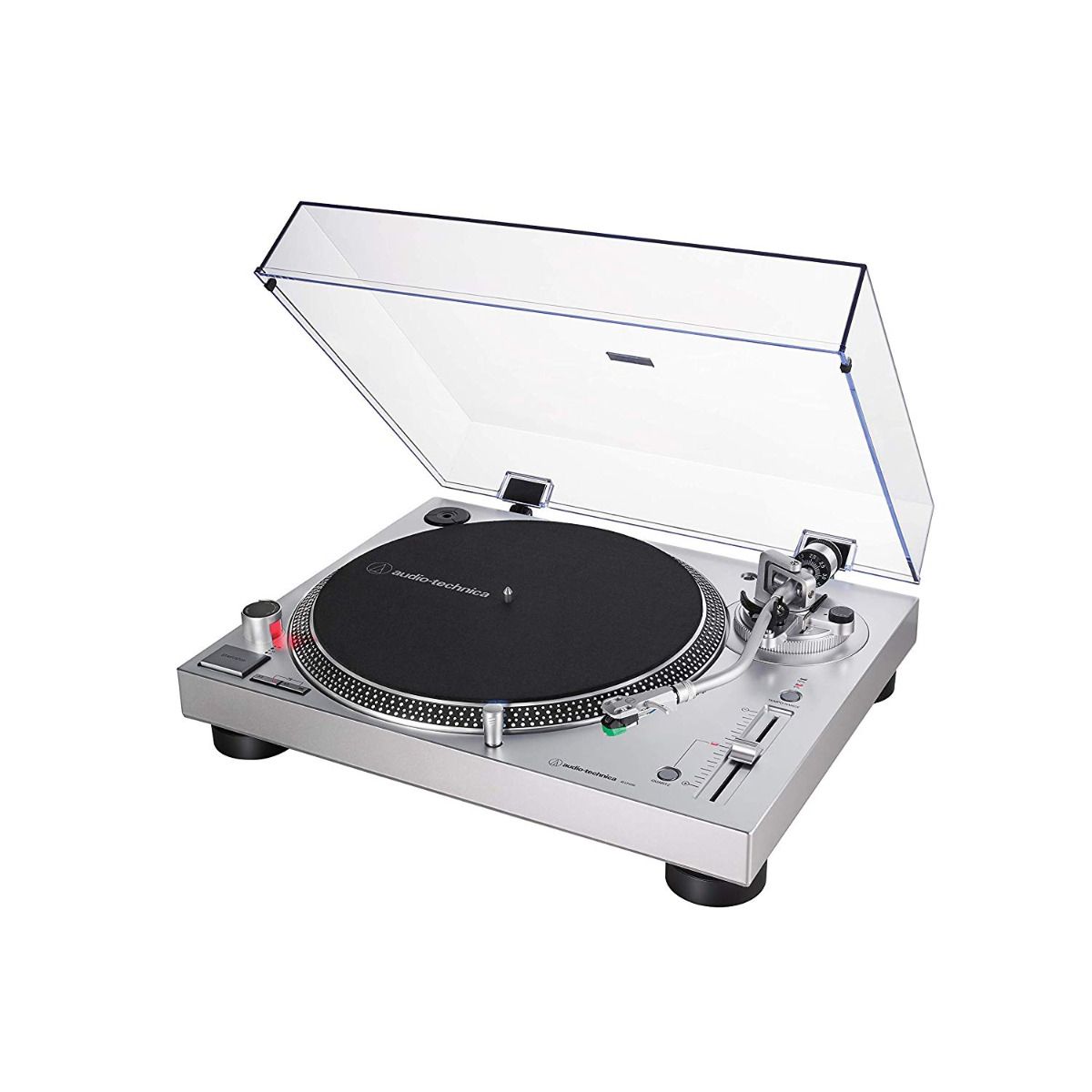

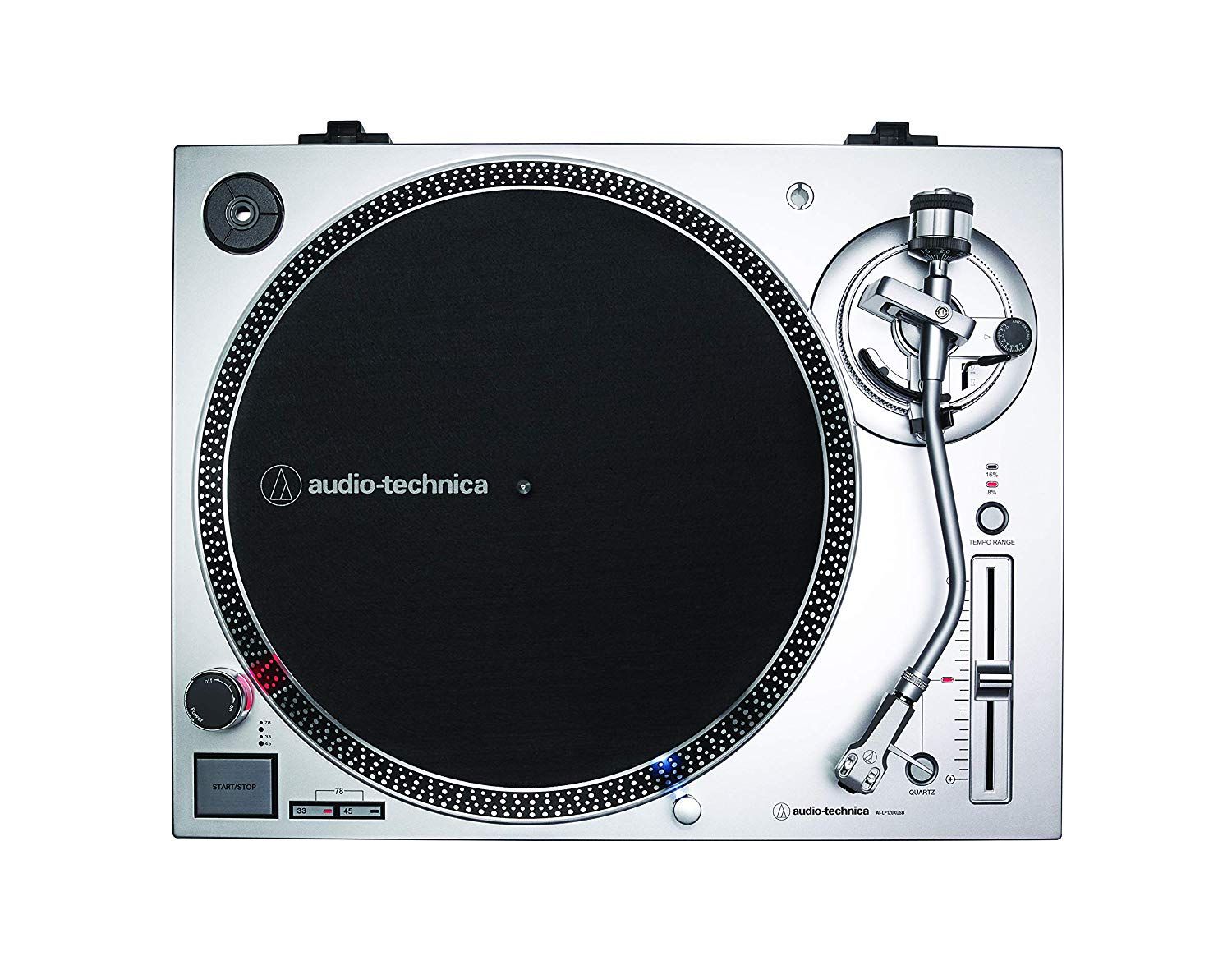

This update of the AT-LP120-USB turntable features a new DC servo direct-drive motor, along with adjustable dynamic anti-skate control and selectable phono preamplifier. The fully manual turntable plays 33-1/3, 45, and 78 RPM records and is equipped with a USB output that allows direct connection to your computer. Just download the free Mac- and PC-compatible Audacity recording software (or software of your choice) and start converting your records to digital audio files. But in addition to the USB output, the turntable also comes with a detachable dual RCA output cable and is equipped with a built-in selectable phono preamp so you can connect directly to your home stereo, whether it has a dedicated phono input or not.
The turntable features an S-shaped tonearm with adjustable tracking force and an AT-HS6 universal ½"-mount headshell with an AT-VM95E Dual Magnet™ phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
Additional features include a die-cast aluminum platter with felt mat; a start/stop button; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-8% or +/-16% adjustment ranges; a stroboscopic platter with speed indicator; a removable plug-type stylus target light; external power supply; and a removable hinged dust cover.
Technical Specification
Audio Technica AT-LP120XUSB
Type fully manual Motor DC servo-controlled Speeds 33-1/3 RPM, 45 RPM, 78 RPM Pitch Variation +/-8% or +/-16% Turntable Platter Die-cast aluminum Starting Torque >1.0 kgf.cm Braking System Electronic brake Wow and Flutter <0.2% WRMS (33 RPM) Signal-to-Noise Ratio >50 dB Output Level Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec Phono Pre-Amp Gain 36 dB nominal, RIAA equalized USB Function PC or Mac with an available USB port (USB1.1 or higher) Windows 7 or above, or Mac OS X or above A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable; Computer interface – USB 1.1 Compliant Windows 7 or above, or MAC OS X or above Power Supply Requirements 115/230V AC, 60/50 Hz Power Consumption 2.75 W Dimensions 141,6 x 452 x 352 (H x W x D mm) Weight 8.0kg Accessories Included AT-VM95E phono cartridge AT-HS6 headshell 1.9 m (6.2') USB cable dual RCA (male) to dual RCA (male) cable with ground wire counterweight felt mat; dust cover 45 RPM adapter
