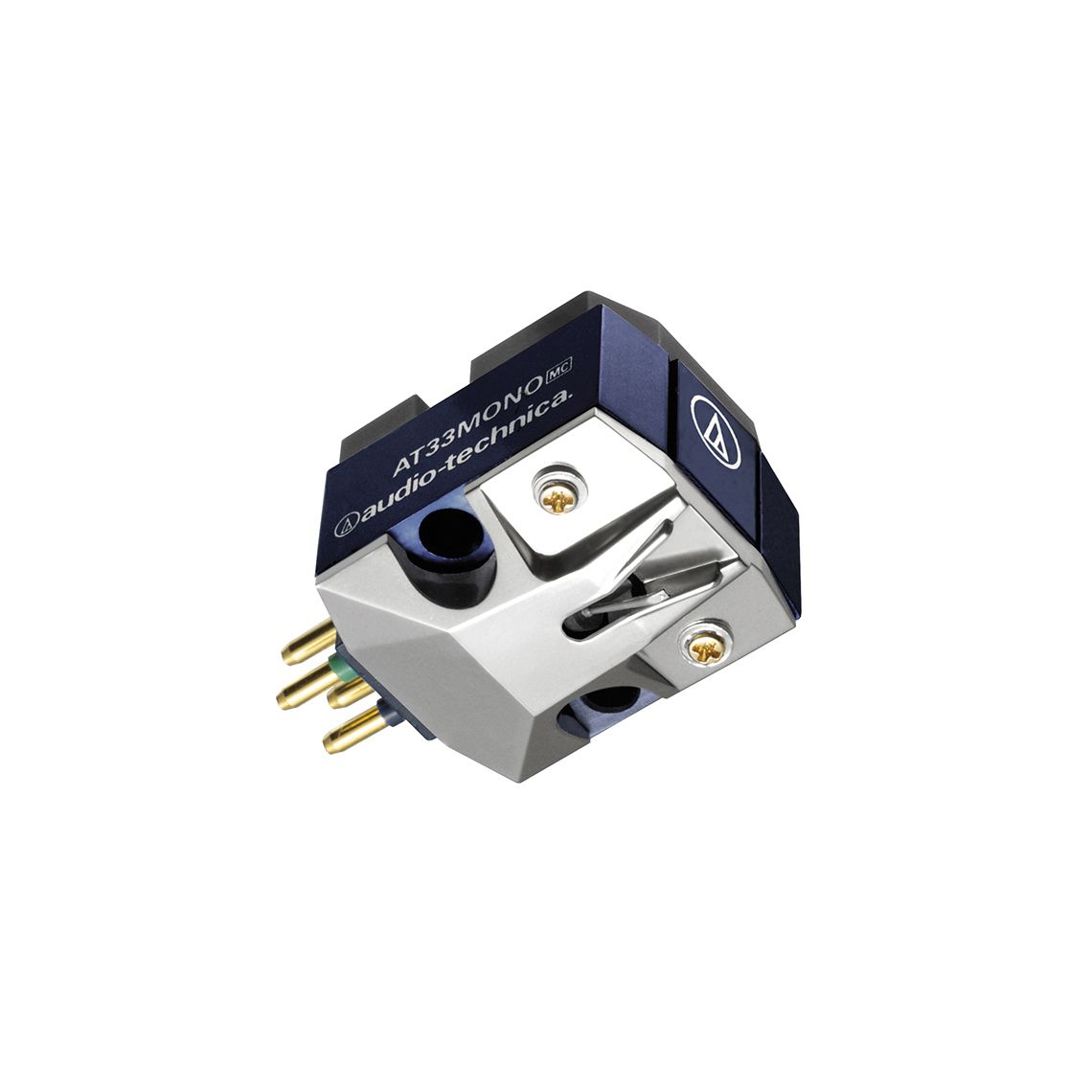

The AT33MONO is made specifically for use on mono systems. It has a horizontal coil, and so in principle only generates electricity horizontally.
The AT33MONO produces sound to a very high quality because it does not easily pick up unnecessary strain components from distorted or scratched records, producing audio that you couldn't possibly get from a stereo cartridge.
The AT33MONO also has appropriate compliance in the vertical direction, so will not cause damage to stereo records. Enjoy those well-known classic mono records of yesteryear with the AT33MONO.
Technical Specification
Audio Technica AT-33MONO
Type MC-type Mounting 1/2" Centers Frequency Response 20 - 20,000Hz Body Material Aluminium/Synthetic Resin Channel Separation 30dB (1kHz) Output Channel Balance 1.0dB (1kHz) Output Voltage 0.35mV (1kHz and 5cm/sec. horizontal signal) Vertical Tracking Angle 23° Vertical Tracking Force Range 2.3 - 2.7g (2.5g standard) Stylus Shape Conical Stylus Size 0.65 mil Cantilever Duralumin pipe Coil Impedance 10Ω (1kHz) Coil Inductance 28µH (1kHz) DC Resistance 10Ω Static Compliance 20×10-6cm/dyne Dynamic Compliance 6×10-6cm/dyne (100Hz) Recommended Load Impedance More than 100Ω (when head amp connected) Weight 6.9g Dimensions H16×W16.6×D26.5mm Replacement Stylus When the stylus is to be replaced, replace the entire cartridge. Take the used cartridge to your Audio-Technica Authorised Service Centre. The new cartridge, or any other model which is desired among the line-up of MC cartridges sold by Audio-Technica, are available at the stylus replacement price. Accessories Included Non-magnetic screwdriver x1, Washers x2, Protector x1, Cartridge fastening screw 13mm×2, 19mm×2, Nut x2, Brush x1, PCOCC lead set x1
