The original model of this stereo cartridge is the AT33ANV, which was available as a special release to celebrate our 45th anniversary. The A33ANV was the first in the AN33 series to feature a Duralumin cantilever, which received wide acclaim for its sound quality. Retaining the basic specification, we present a further improved and evolved model.

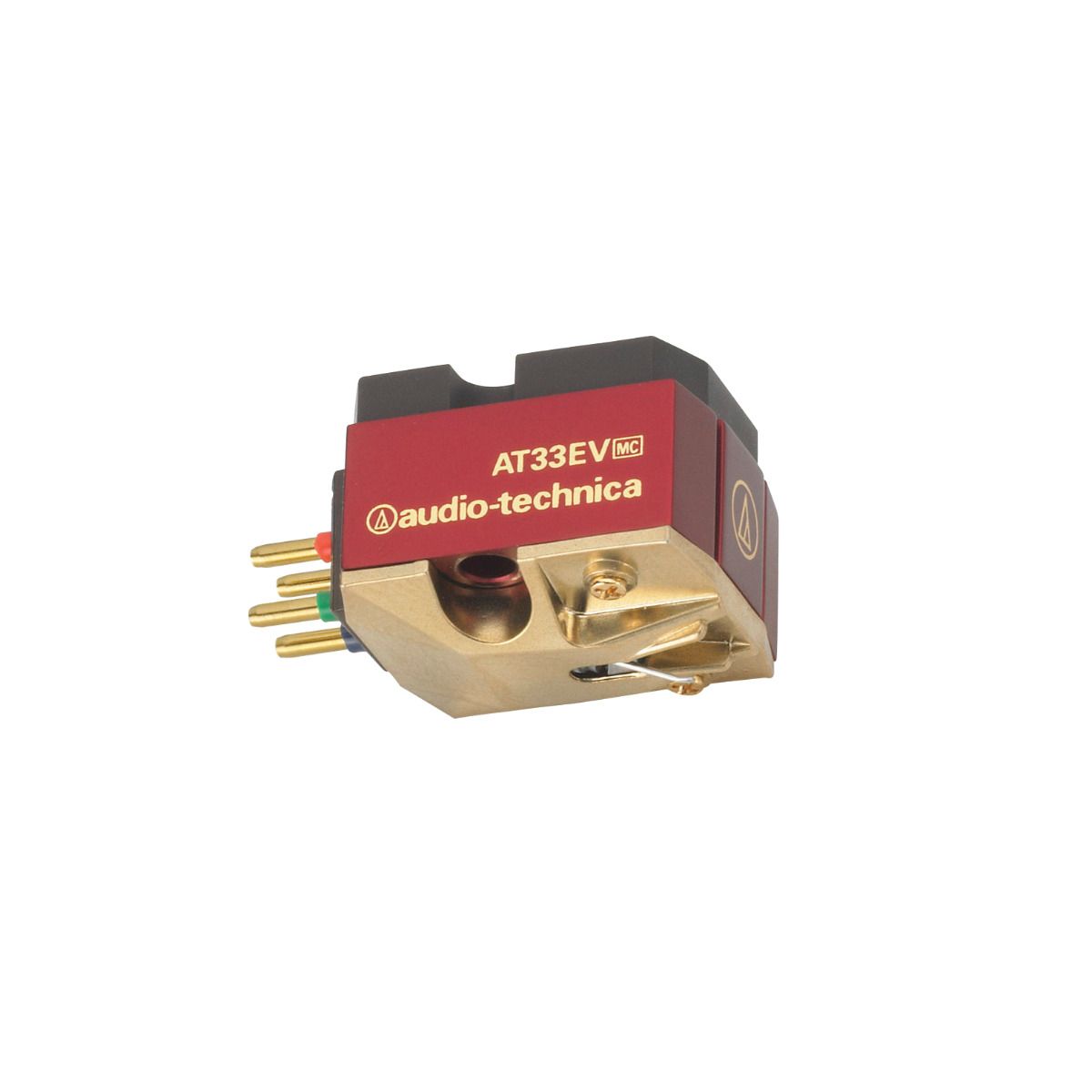

The A33EV is a ½ inch, standard mount 0.3 x 0.7 mil elliptical cartridge featuring a tapered Duralumin cantilever which reduces the effective mass of the cartridge, resulting in a more durable cantilever. The Dual Moving Coil cartridge design increases channel separation and extends the frequency response range delivering extraordinary audio quality. Internally constructed with a neodymium magnet enhances magnetic energy and PCOCC wire for pure audio transmission.
Features
Minimises unnecessary vibration”
Hanenite’ is used in the housing interior and the cantilever fulcrum support to minimize unnecessary vibration, to allow the outstanding basic performance of the dual moving coil to fully express itself.
Ability to richly reproduce sounds

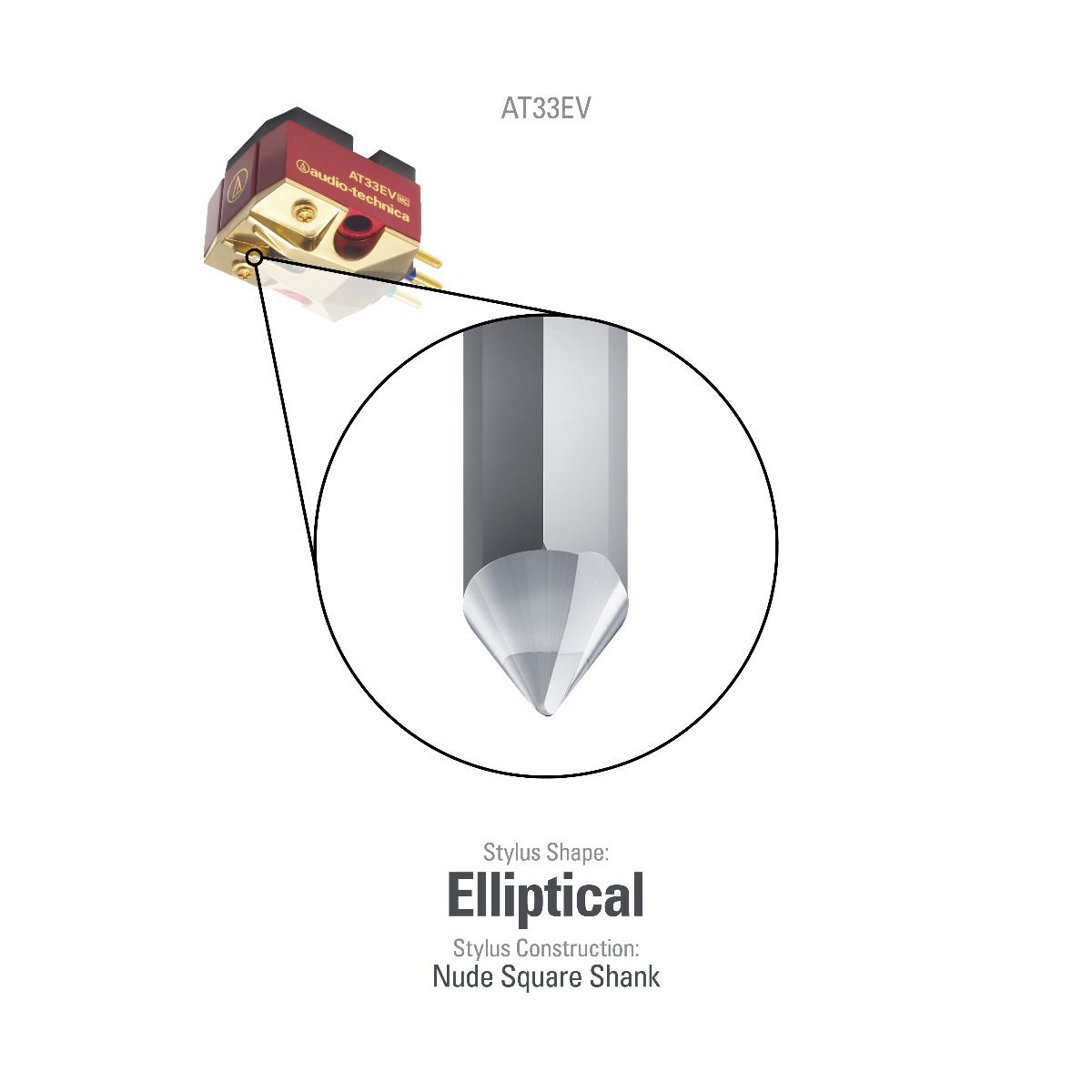

Elliptical stylus chip, embedded into a hard duralumin tapered pipe cantilever, has the ability to richly reproduce sounds in the medium and low ranges. With its outstanding machine strength, the duralumin cantilever is tough enough for the job and produces natural sounds without distortion.
Technical Specification
Audio Technica AT-33EV
Type Dual Moving Coil Mounting 1/2" Centers Frequency Response 15 - 50,000Hz Body Material Aluminium/Synthetic Resin Channel Separation 30dB (1kHz) Output Channel Balance 0.5dB (1kHz) Output Voltage 0.3mV (1kHz and 3.54cm/sec.) Vertical Tracking Angle 23° Vertical Tracking Force Range 1.8 - 2.2g (2.0g standard) Stylus Shape Elliptical Stylus Curvature Radius 0.3 x 0.7 mil Stylus Construction Nude Square Shank Cantilever Duralumin Coil Impedance 10Ω (1kHz) Coil Inductance 22µH (1kHz) DC Resistance 10Ω Static Compliance 40×10-6cm/dyne Dynamic Compliance 10×10-6cm/dyne (100Hz) Terminal Pins Brass Recommended Load Impedance More than 100Ω (when head amp connected) Replacement Stylus When the stylus is to be replaced, replace the entire cartridge. Take the used cartridge to your Audio-Technica Authorised Service Centre. The new cartridge, or any other model which is desired among the line-up of MC cartridges sold by Audio-Technica, are available at the stylus replacement price. Accessories Included Non-magnetic screwdriver × 1, Washer × 2, Protector × 1, Cartridge installation screws 13 mm × 2 and 19 mm × 2, Nut × 2, Brush × 1, PCOCC lead set × 1
