A 50% increase in weight capacity per module over the Evoque Eco 60-40 SE2 along with significantly increased storage width (65cm) and depth (60cm) to support larger hifi components.
The Evoque special edition incorporates significant sonic and mechanical resonance control upgrades designed specifically for the hifi enthusiast who is looking for the ultimate in musical performance. Visually attractive and beautifully crafted British made modular support makes a stunning centrepiece. Perfect for both supporting and maximising the performance of hifi equipment.
Atacama Sonic Isolation System Technology (A.S.I.S.T) has been incorporated into each module. This consists of two dampening gaskets* in each leg designed to reduce “ringing” and to isolate the Aluminium components from the outer leg collar.
These components act as resonance conductors, allowing an escape route for this energy away from the bamboo shelves so that it can be dissipated through to the floor.
Leg lengths are 15mm longer than standard Evoque, thus lowering the resonance frequency of each module when compared to an equivalent standard Evoque. The leg outer collars are powder coated.
By adding additional fully adjustable mass via Nickel plated Bronze frostrum cones to the leg internal studs, the module frequency can be tuned to dial out the resonance of the specific equipment being supported.
Each Bamboo panel has V.R.D.C Vectored Resonance Deflection Channels. V.R.D.C. is the three dimensional geometric design that has been crafted into the underside of each module. This complex pattern neutralises high frequency harmonic energy by directing it away from the supported equipment toward the leg grounding components. Each channel has been cut into a “V” shape so directing energy that is entering the shelf vertically into a horizontal axis so avoiding resonance feedback, maximising each modules performance.
With so much resonance being directed away from the bamboo, the spike interface has now been opened so avoiding a constriction of this energy and allowing it to freely dissipate to the floor.
Features
SE2 Upgrade over SE – Improved Mechanically Tuned Leg Lengths
Leg lengths are 5mm longer than standard Evoque SE, thus further lowering the resonance frequency of each module* when compared to an equivalent standard Evoque SE.

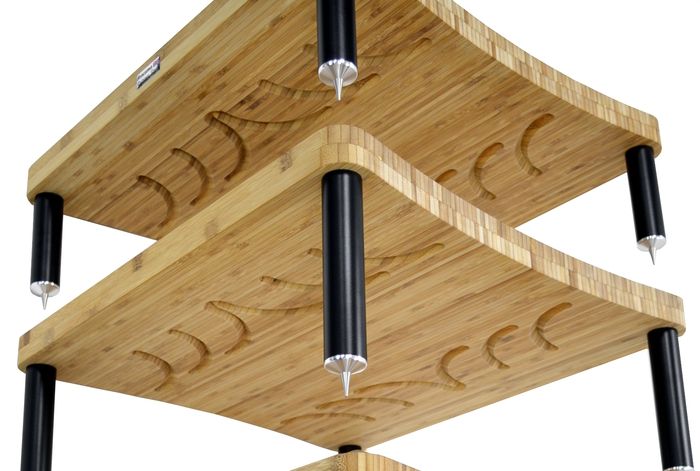

SE2 Upgrade over SE – A.V.R.D.C Advanced Vectored Resonance Deflection Channels.
Each Bamboo panel has new A.V.R.D.C Advanced Vectored Resonance Deflection Channels.
A.V.R.D.C. is the three-dimensional curvature geometric design that has been crafted into the underside of each module. This newly developed multi curve pattern neutralises high frequency harmonic energy by directing it away from the supported equipment toward the leg grounding components. Each channel has been cut into a “V” shape then curved so directing the maximum amount of energy that is entering the shelf vertically into a horizontal axis towards the leg
components so avoiding resonance feedback and maximising each modules performance.

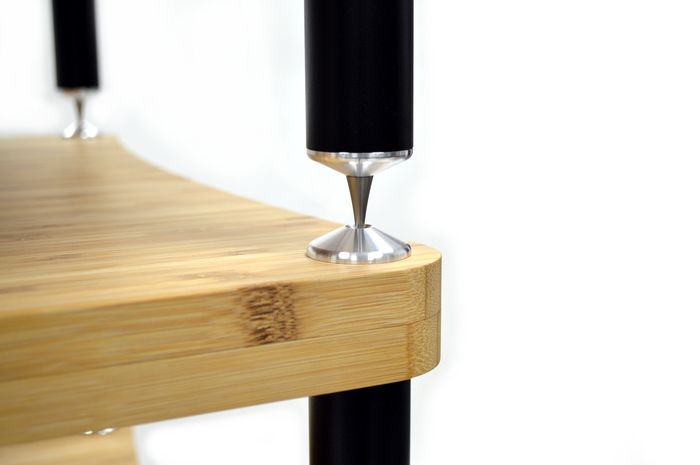

SE2 Upgrade over SE – Advanced Bronze Isolation Coned Spikes
With so much resonance being directed away from the bamboo, the spike interface has now been further opened so avoiding a constriction of this energy and allowing it to freely dissipate to the floor. These new spikes are longer and shaped to maximise energy transference between each module while still offering a level of isolation. We call this Mechanical Grounding.
SE2 Upgrade over SE – Side Edge Contoured Bamboo Panels
By adding contoured edges to the two side faces of each bamboo module, resonance energy in the form of standing waves can be avoided and are instead directed towards the new A.V.R.D.C channels so aiding the efficiency of each shelf. When the wave bounces off the edge surface, it changes phase. In the case of waves that create a standing wave, the reflected wave is a mirror image of the original. The waves then combine. If the amplitudes of the two waves have the same sign (both positive / both negative), they will add together to form a wave with a larger amplitude. This adding together is called constructive interference. The Side edge contouring helps to avoid this.

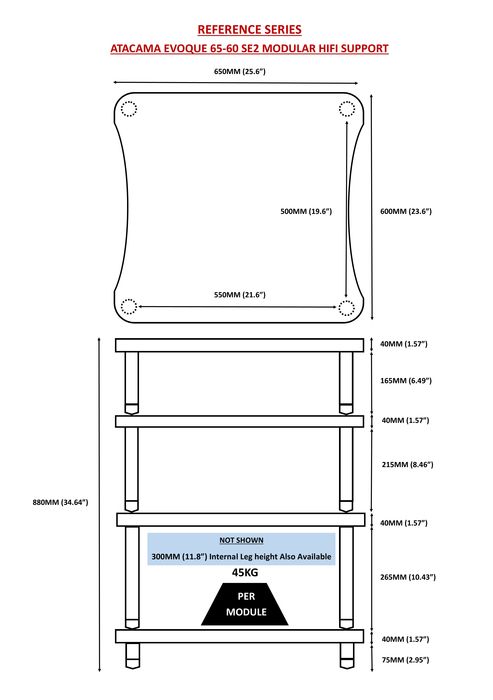

Technical Specification

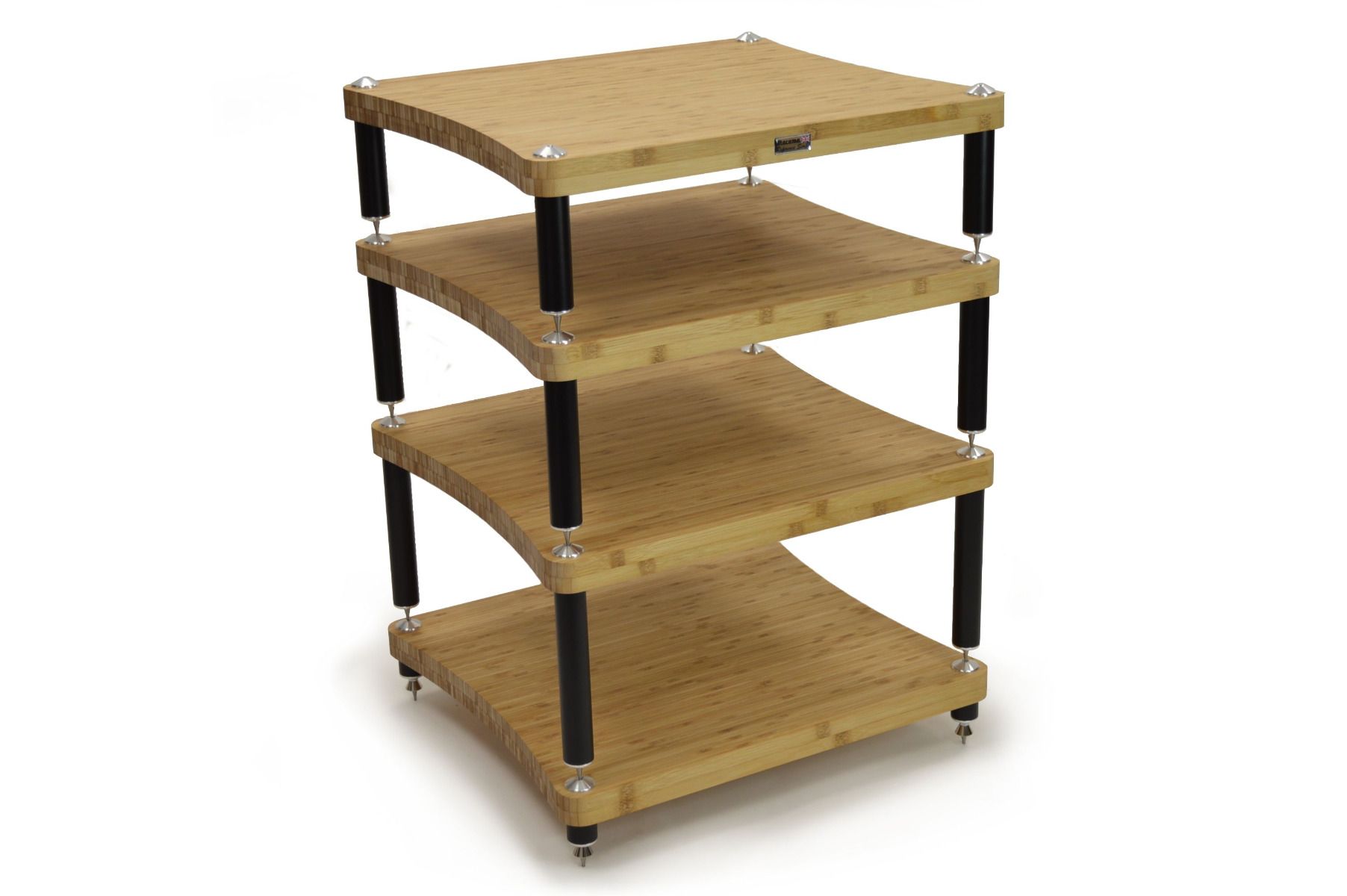

Atacama Evoque ECO 65/60 SE2 Reference
Includes:
1 x Evoque ECO 65/60 SE2 HiFi Base and your choice of 3 x 165mm, 215mm, 265mm and/or 300mm Evoque ECO 65/60 SE2 HiFi Shelf
Price quoted is for four shelves but we can quote for more and less shelves on request.
